Removal And Installation

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

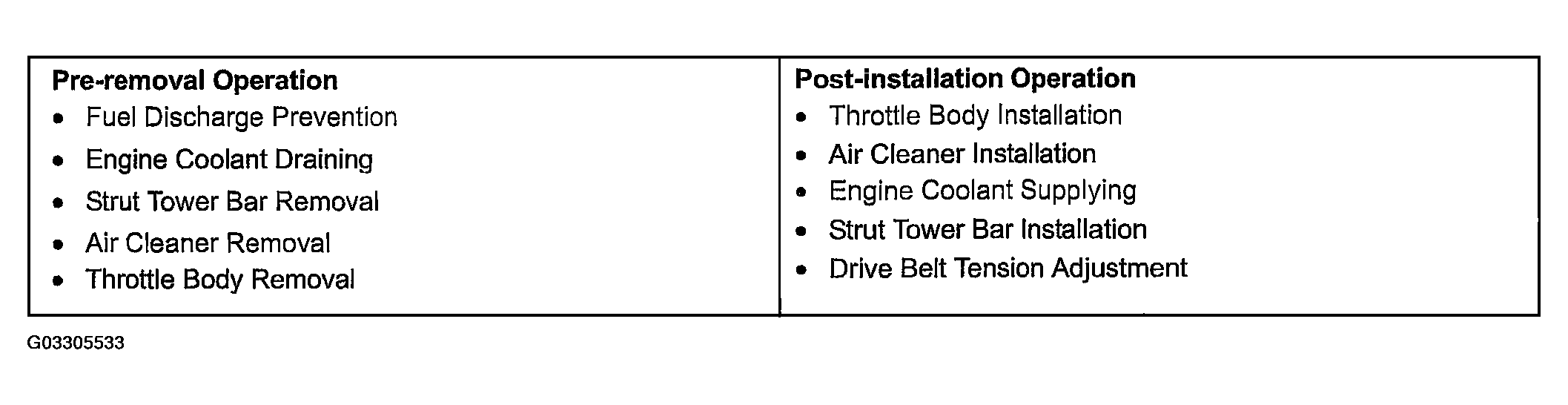

Fig 1: Intake Manifold Plenum Pre-Removal And Post-Installation Points

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

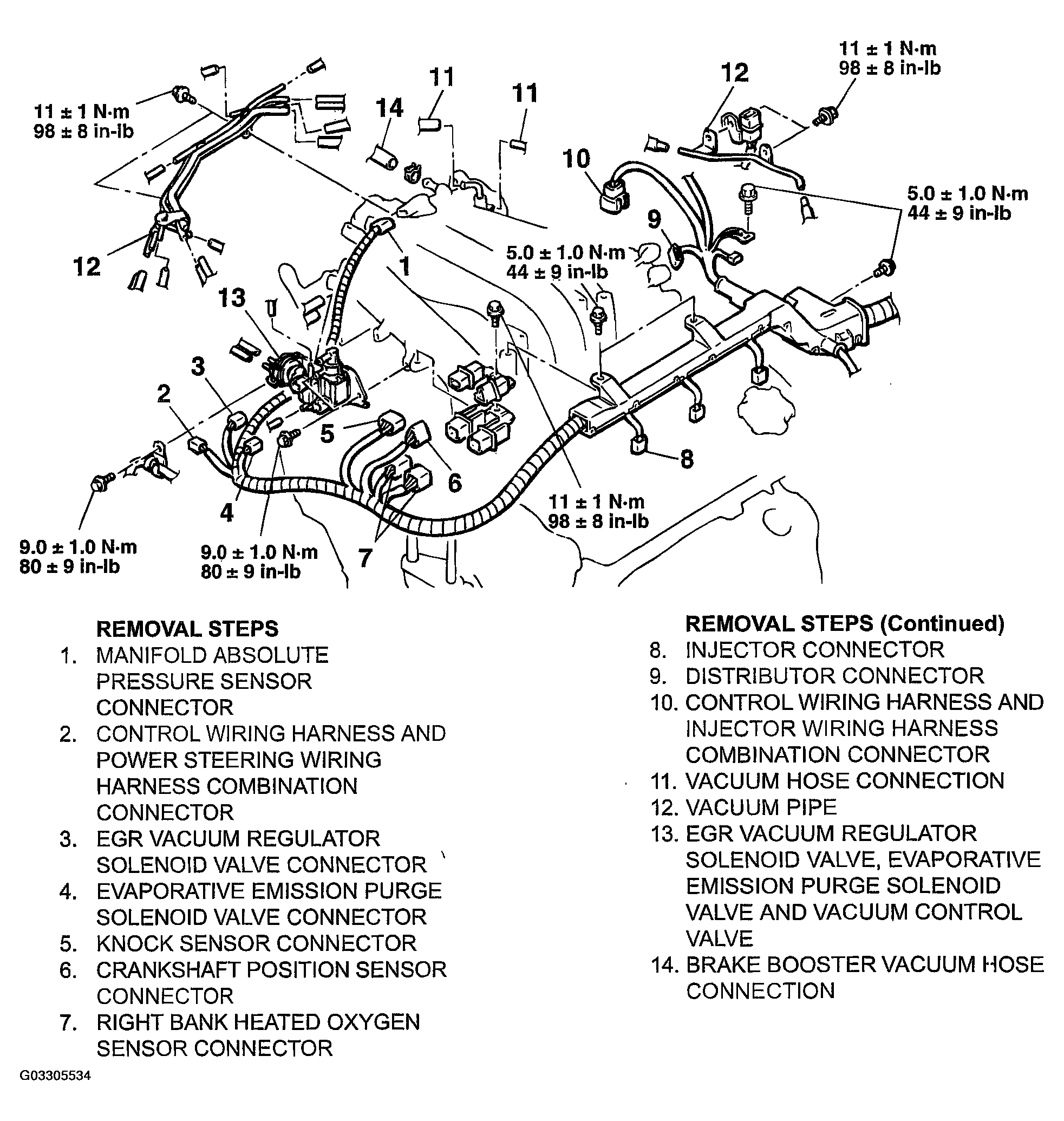

Fig 2: Removing And Installing Intake Manifold Plenum Components - Without Intake Manifold (IMT) System (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

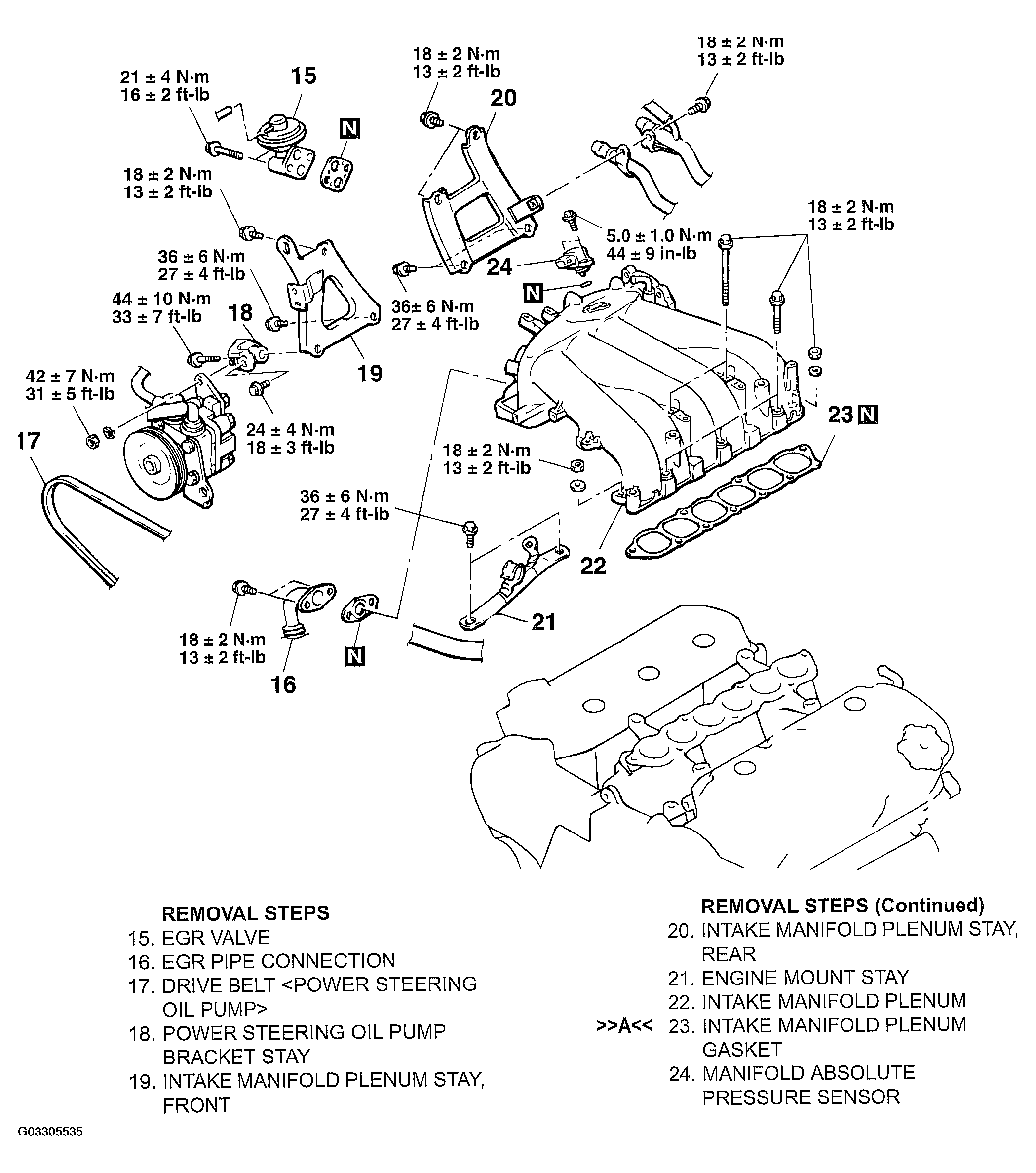

Fig 3: Removing And Installing Intake Manifold Plenum Components - Without Intake Manifold (IMT) System (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

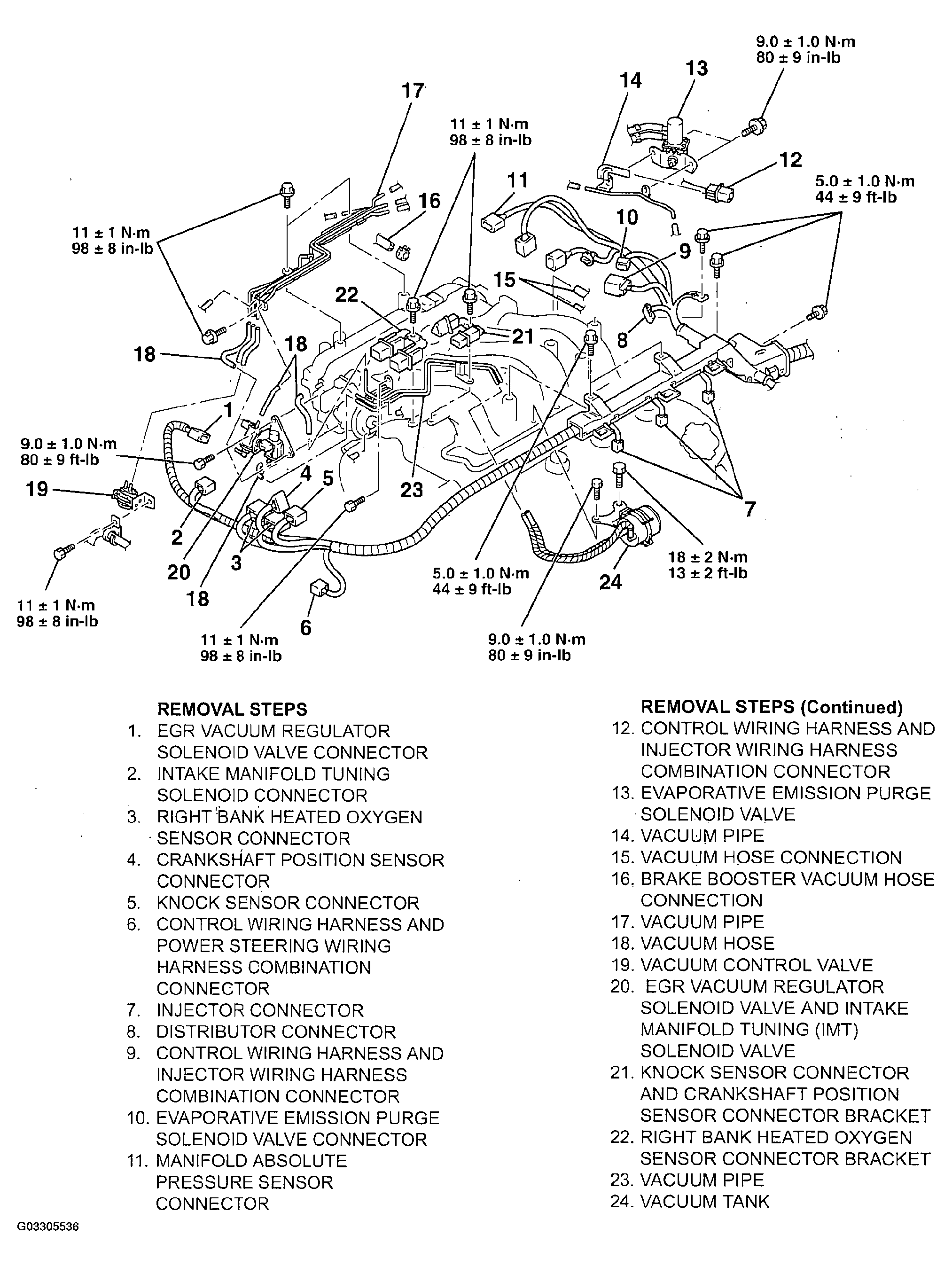

Fig 4: Removing And Installing Intake Manifold Plenum Components - With Intake Manifold (IMT) System (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

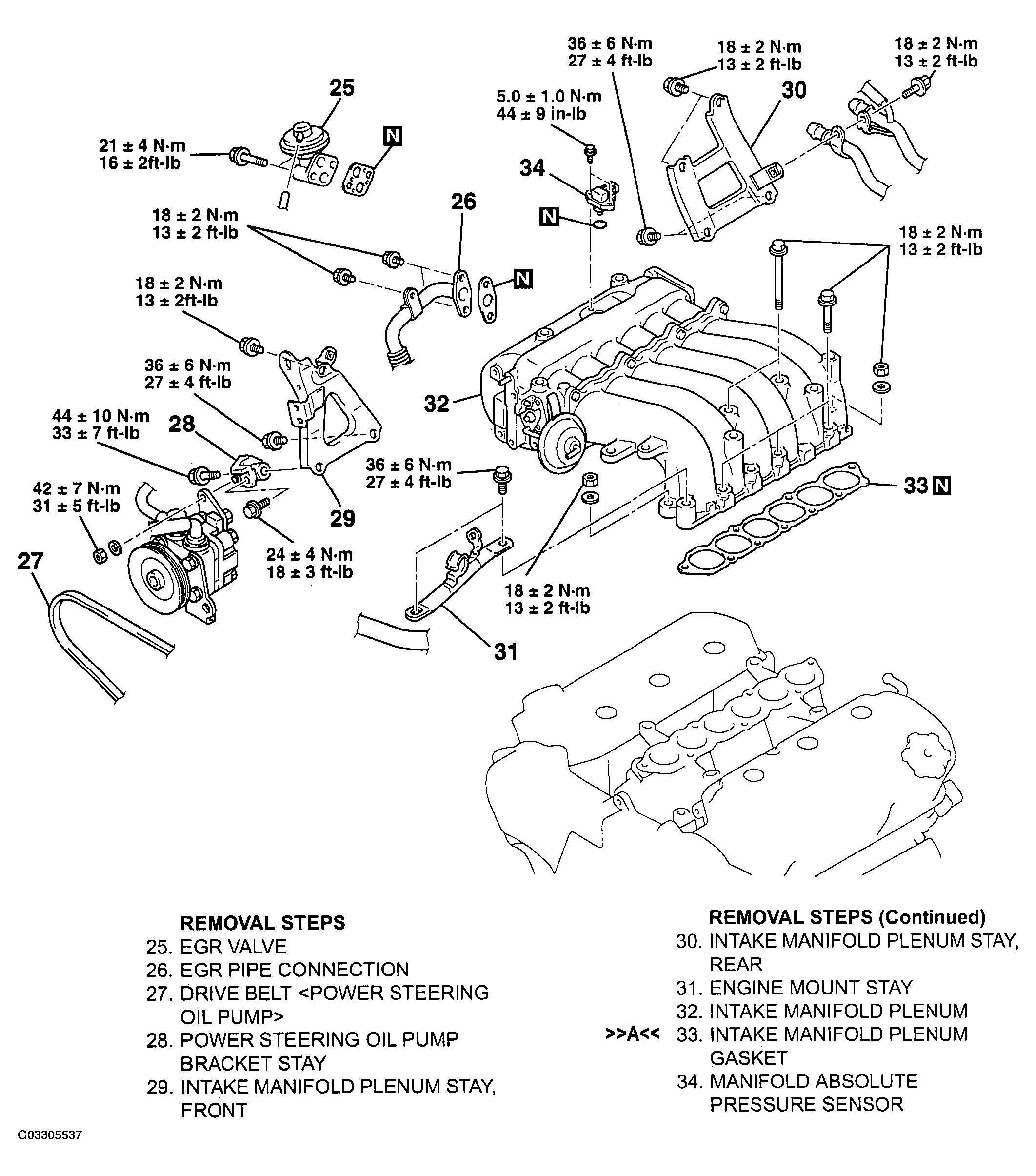

Fig 5: Removing And Installing Intake Manifold Plenum Components - With Intake Manifold (IMT) System (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
