>> A << Engine Assembly Installation

Install the engine assembly, being careful not to pinch the cables, hoses or wiring harness connectors.

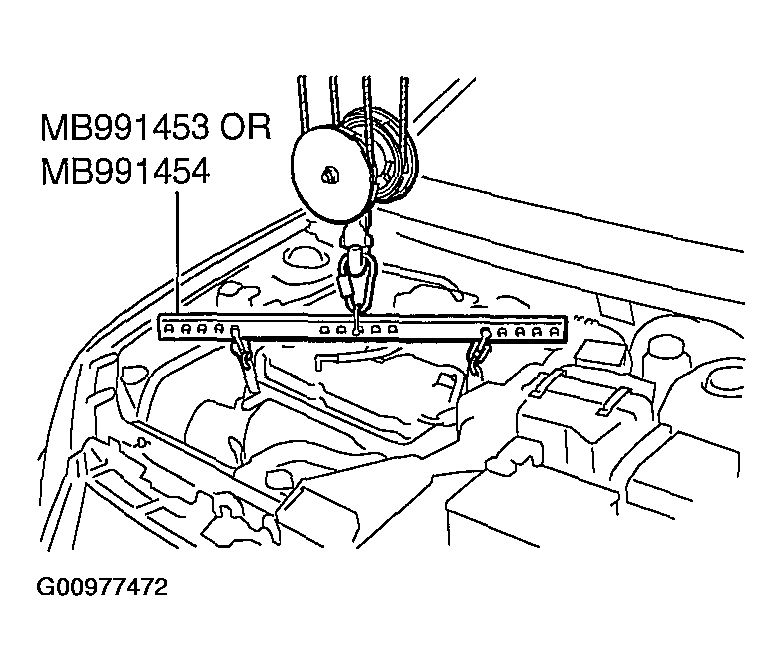

Fig 1: Installing Engine Assembly
G00977472Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
