Accessory Socket Relay Continuity Check

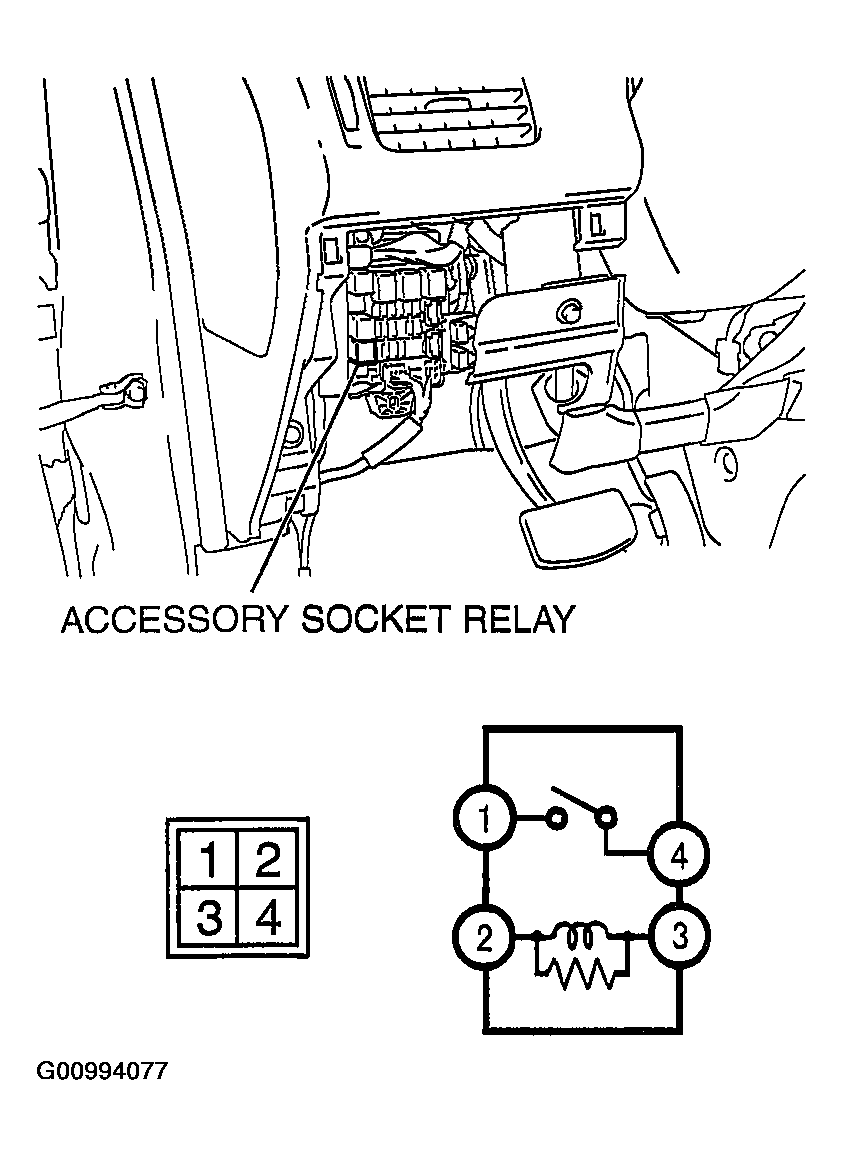

Fig 1: Identifying Accessory Socket Relay
G00994076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

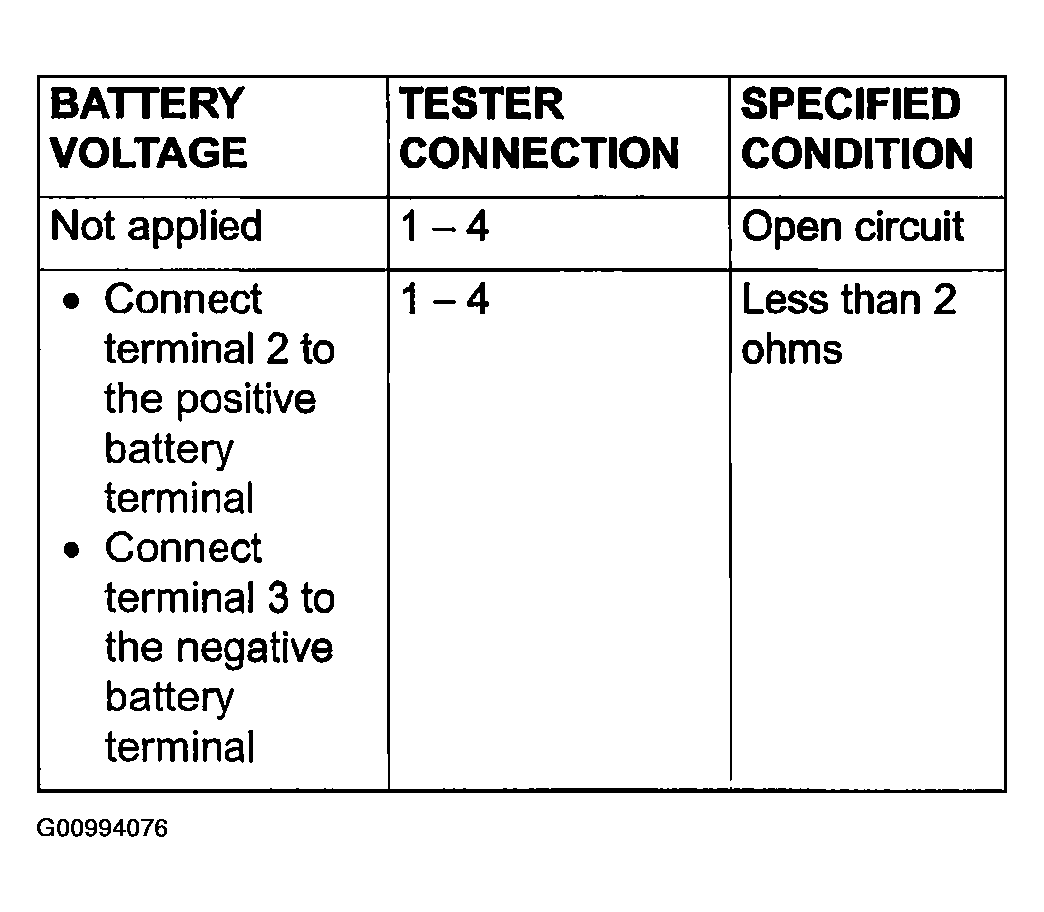

Fig 2: Identifying Battery Voltage Condition
G00994077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
