DTC 32: Longitudinal G-Sensor System: Notes

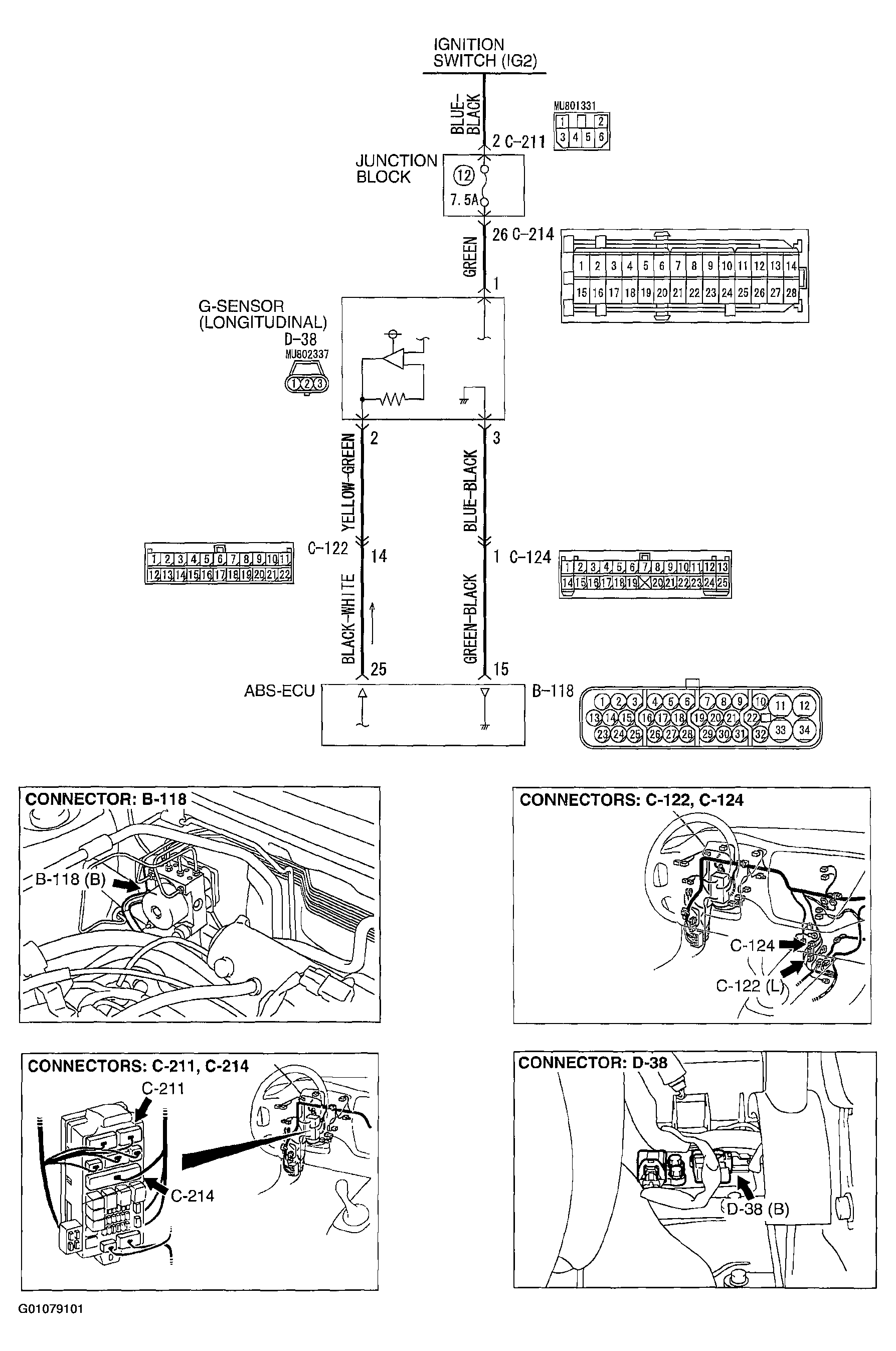

Fig 1: Longitudinal G-Sensor Circuit Diagram
G01079101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
