Heater Core: Service and Repair

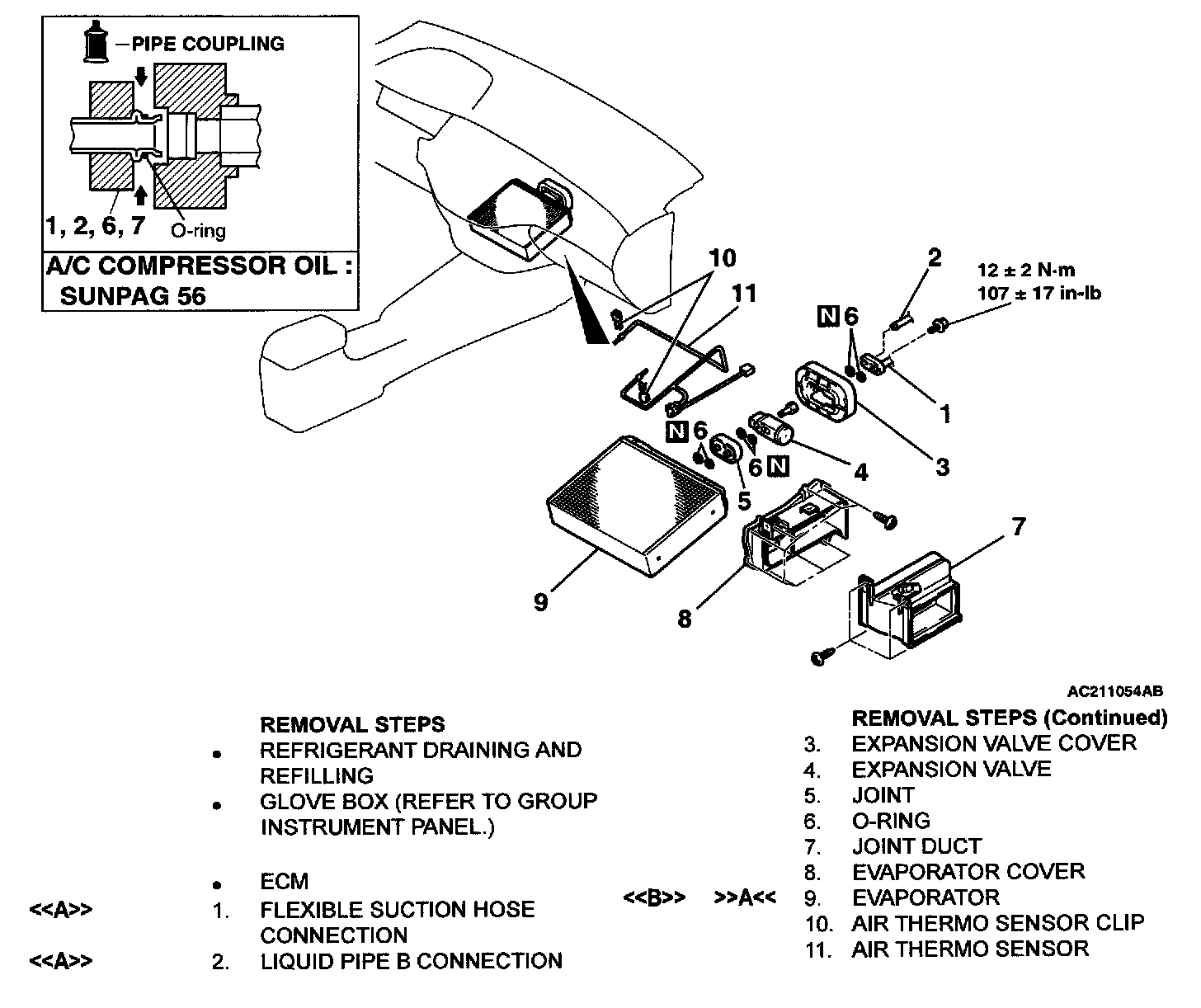

Evaporator Assembly:
REMOVAL SERVICE POINT
<> FLEXIBLE SUCTION HOSE, LIQUID PIPE B DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples. To prevent the entry of dust or other foreign material, plug the dismantled hose and the nipples of the expansion valves.
<> EVAPORATOR REMOVAL
CAUTION: Do not cut the upper side of the pad.
1. When removing the evaporator, cut and fold back the dashboard pad as in the diagram. (The thickness of the pad interferes with the removal of the evaporator.)
2. Remove the evaporator.
INSTALLATION SERVICE POINTS
>>A<< EVAPORATOR INSTALLATION
After installing the evaporator, glue the cut dashboard panel pad with an adhesive agent.
