Removal And Installation: Notes

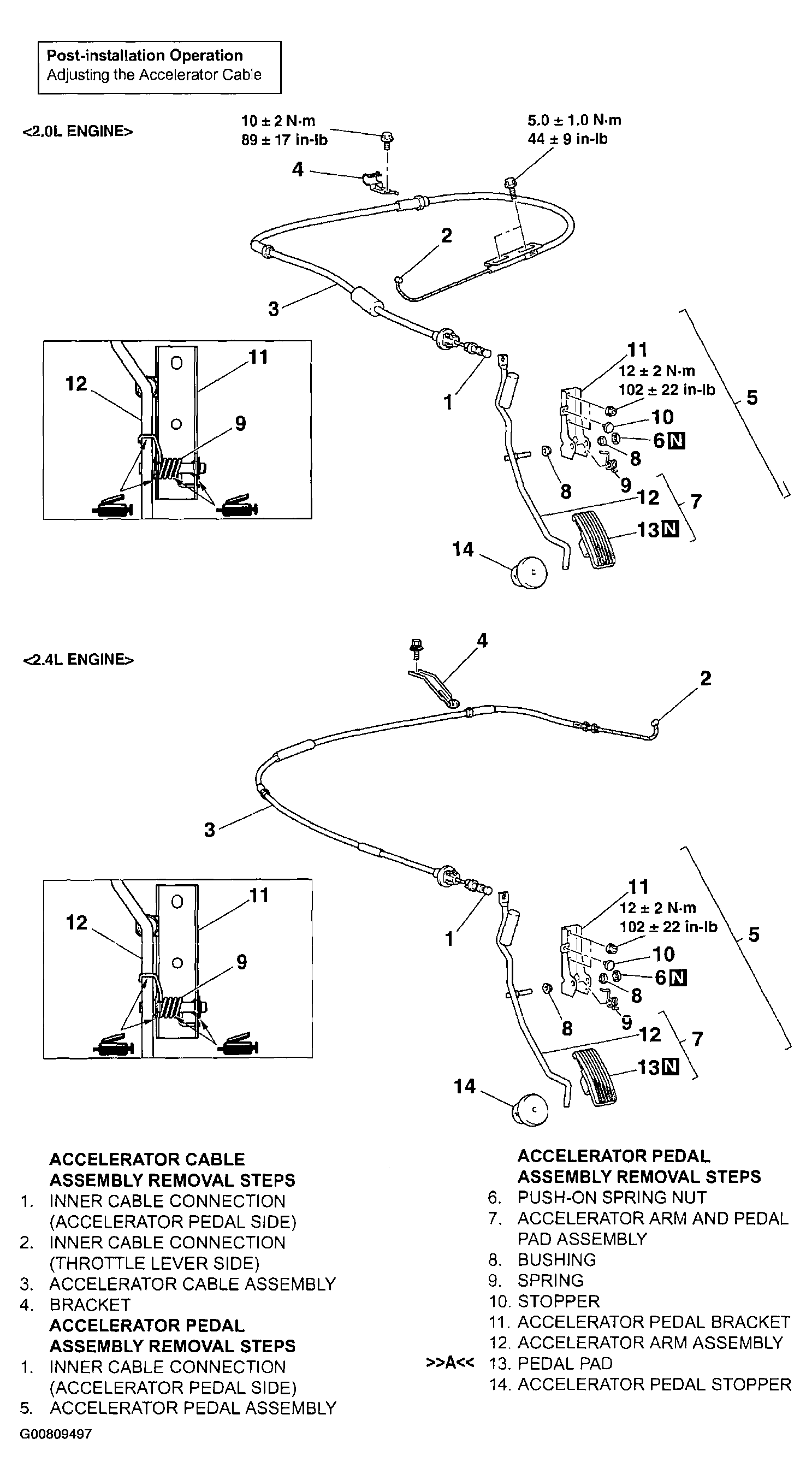

Fig 1: Removing And Installing Accelerator Cable And Pedal Components
G00809497Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
