Transmission Range Switch Check

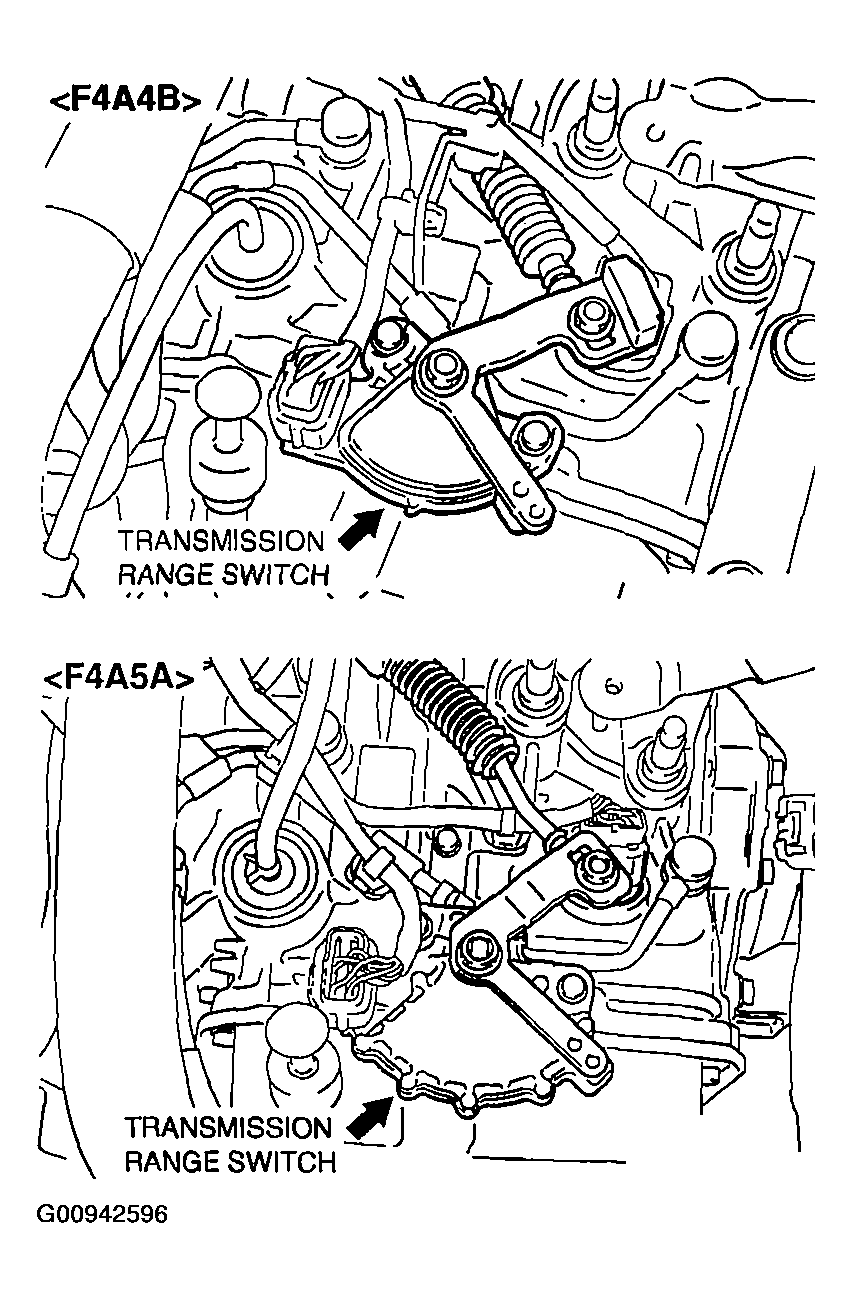

Fig 1: Identifying Transmission Range Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

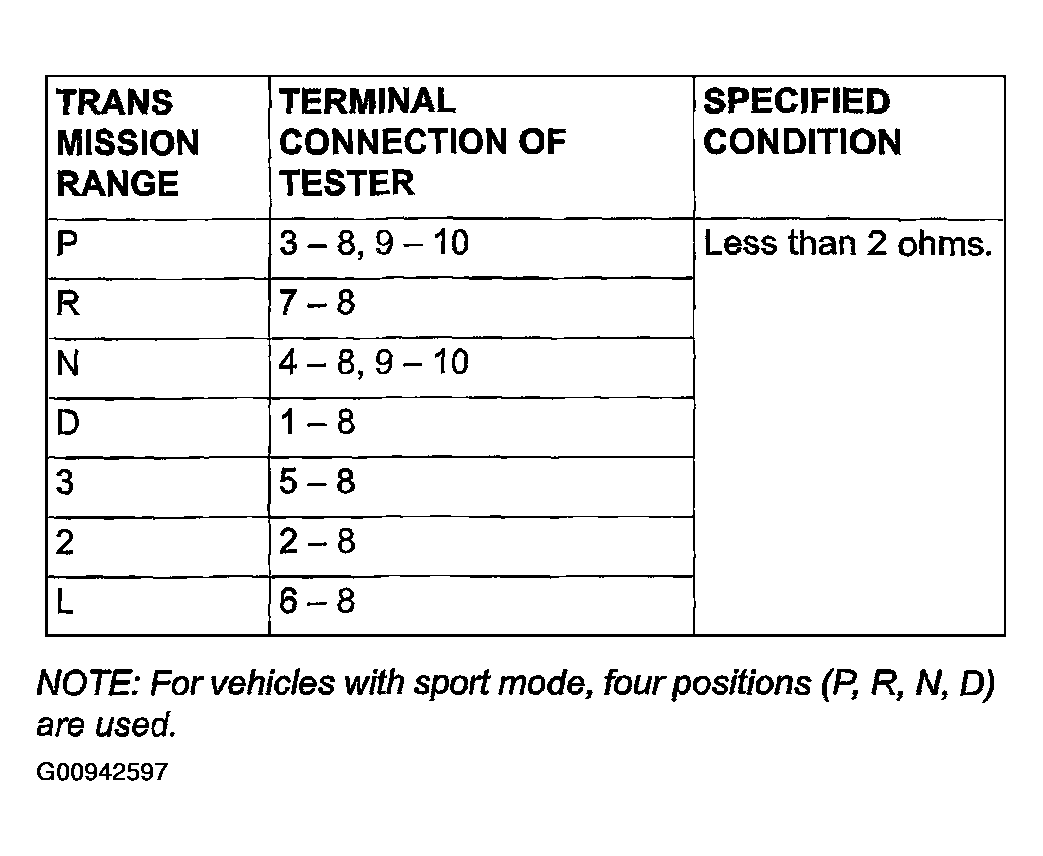

Fig 2: Transmission Range Switch Check Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

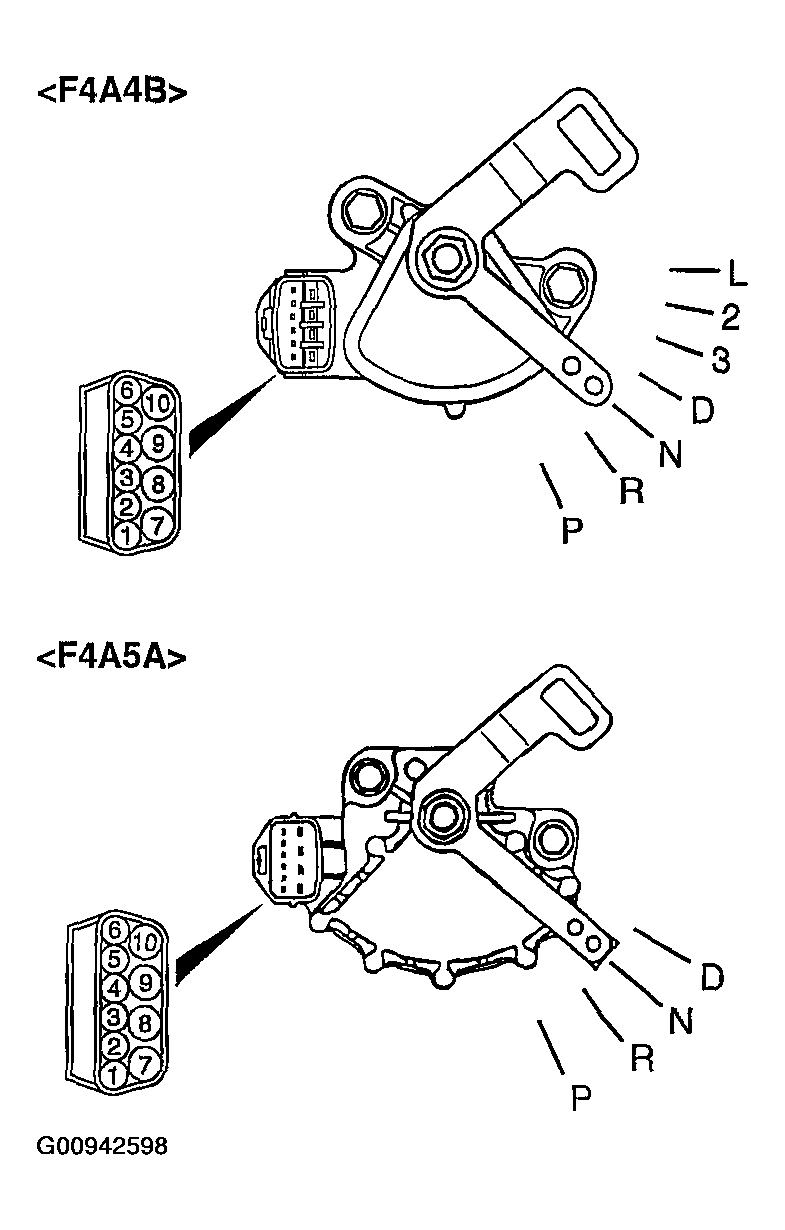

Fig 3: Identifying Transmission Range Switch Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
