INSPECTION PROCEDURE 15: Shift Switch Assembly System
>>
Shift Switch Assembly System Circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Shift Switch Assembly System Circuit

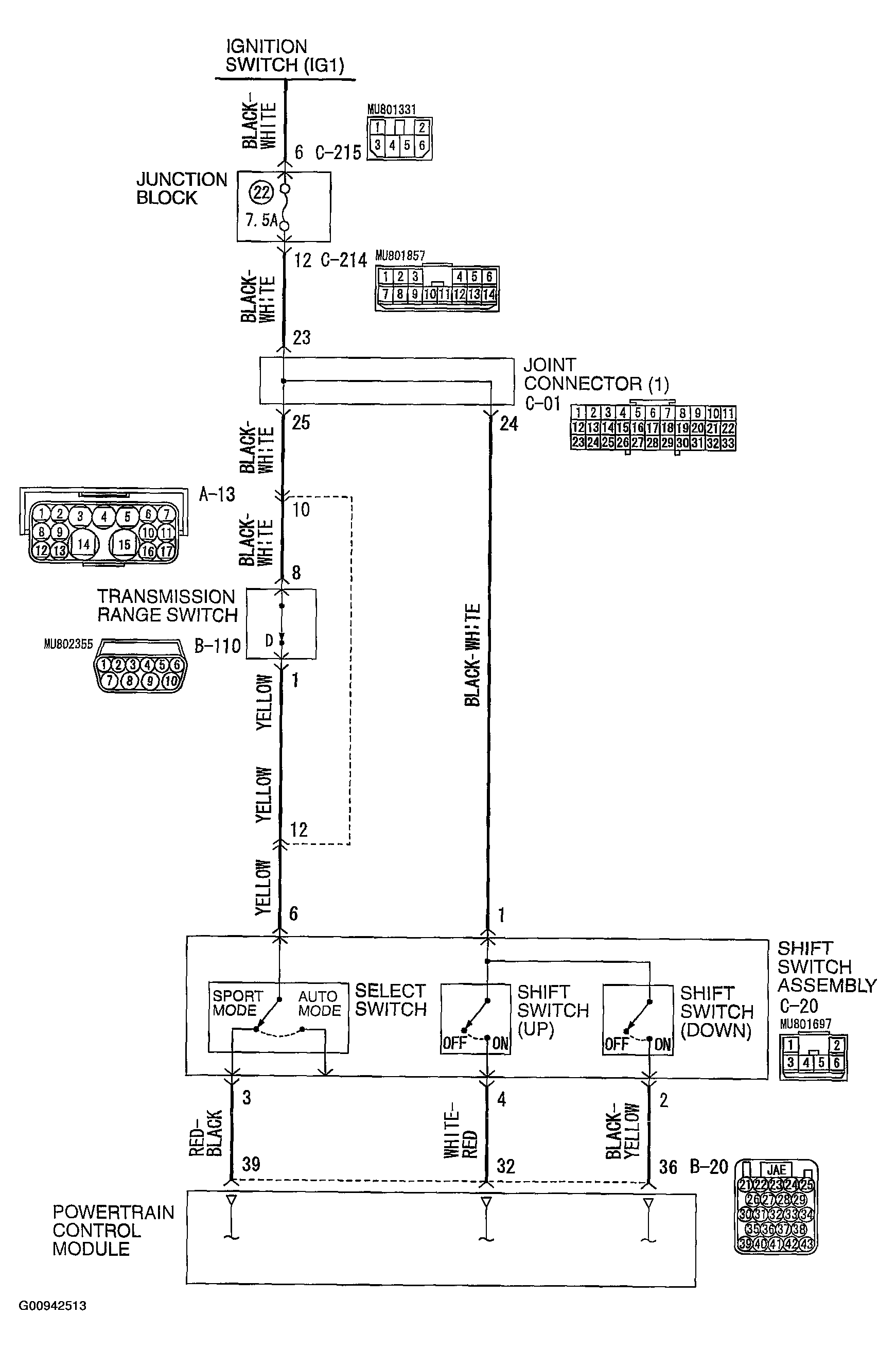

Fig 1: Inspection Procedure 15: Shift Switch Assembly System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

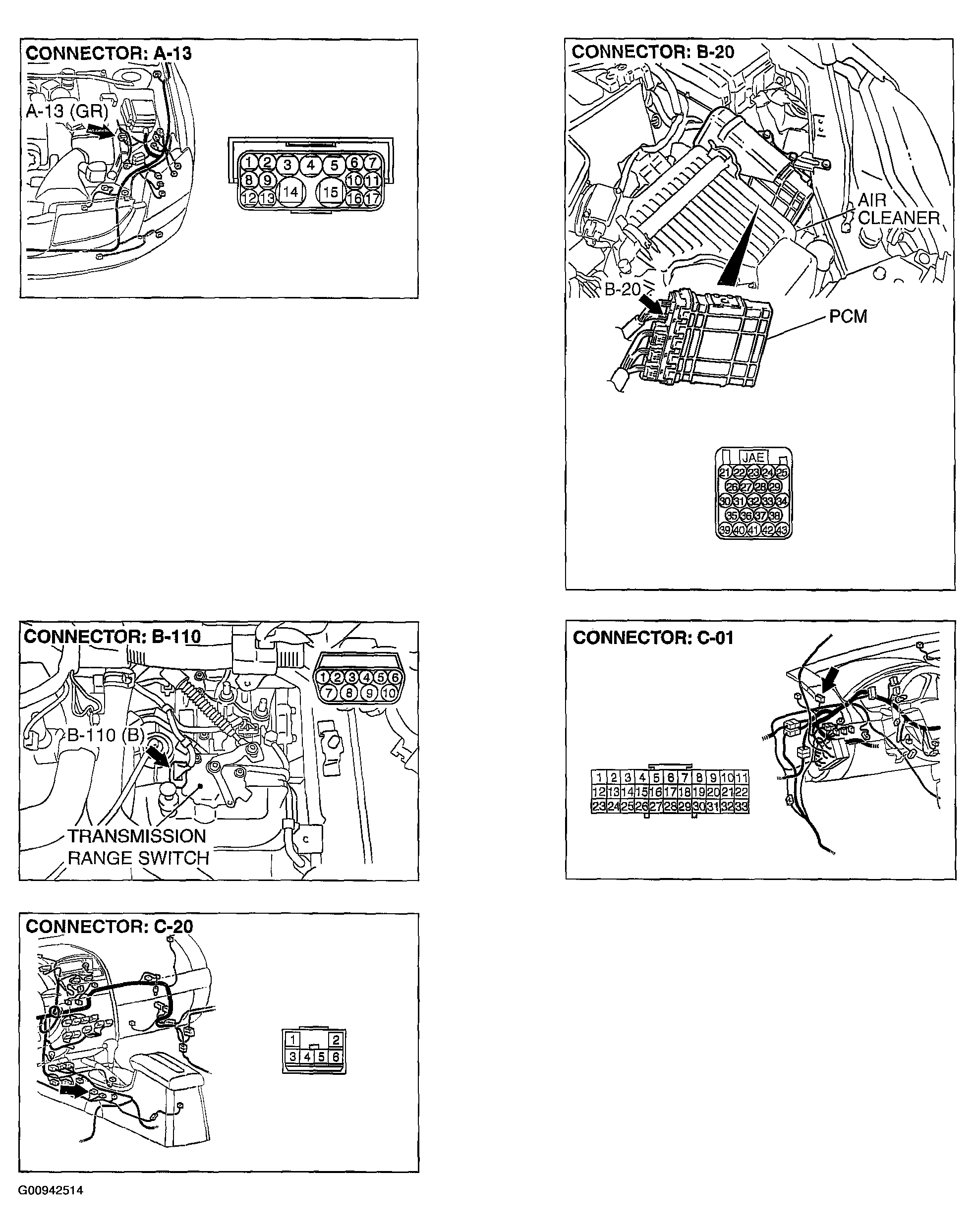

Fig 2: Identifying Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

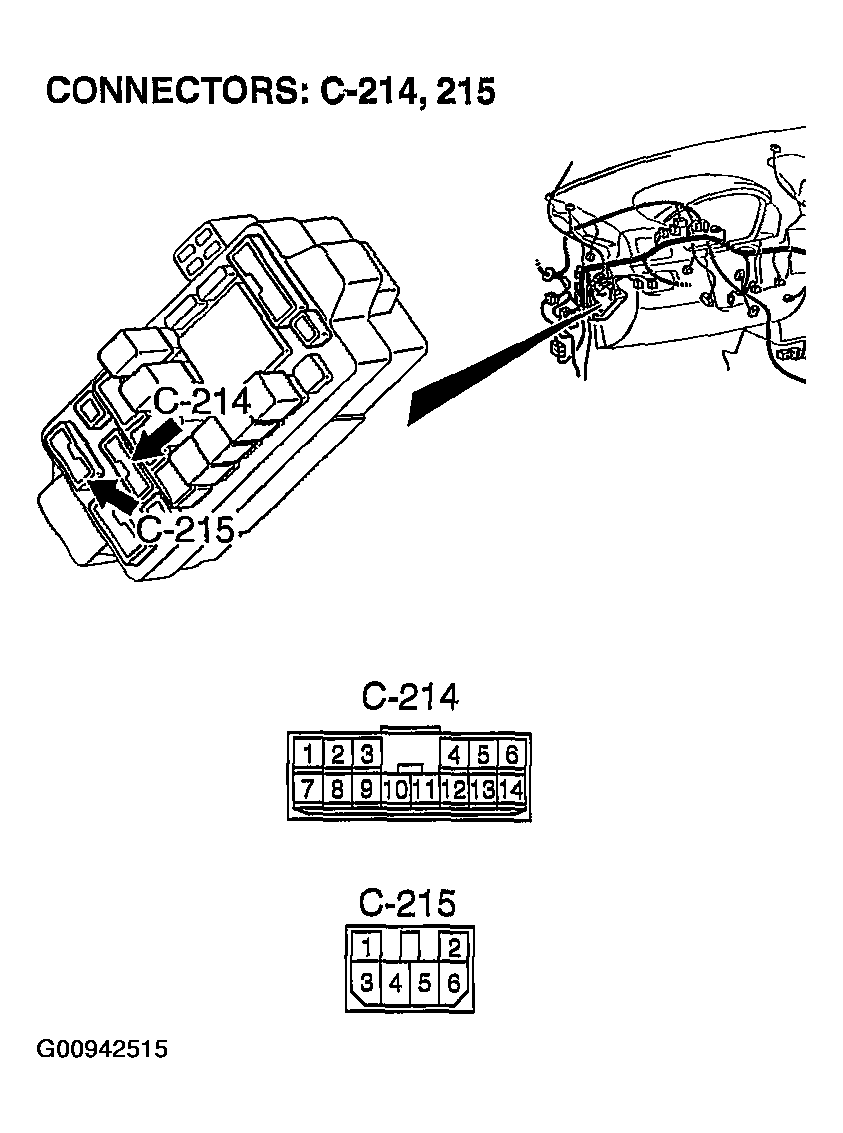

Fig 3: Identifying Connectors: C-214, 215
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
