Removal And Installation: Notes

WARNING:

Before removing the power steering gear assembly, refer to AIR BAG SAFETY PRECAUTIONS REMOVAL & INSTALLATION .
Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

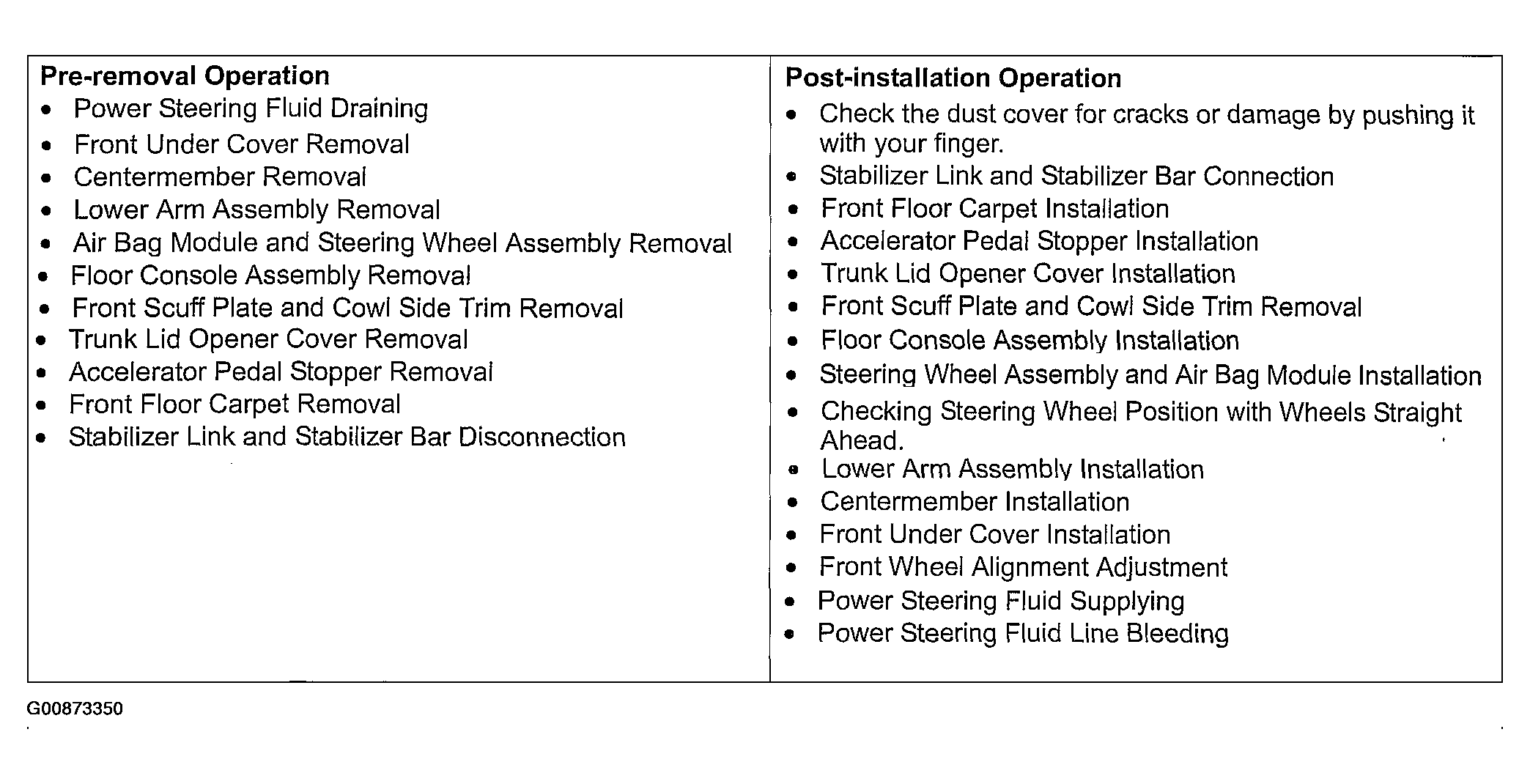

Fig 1: Pre-Removal Operation And Post-Installation Procedures For Power Steering Gear Box And Linkage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

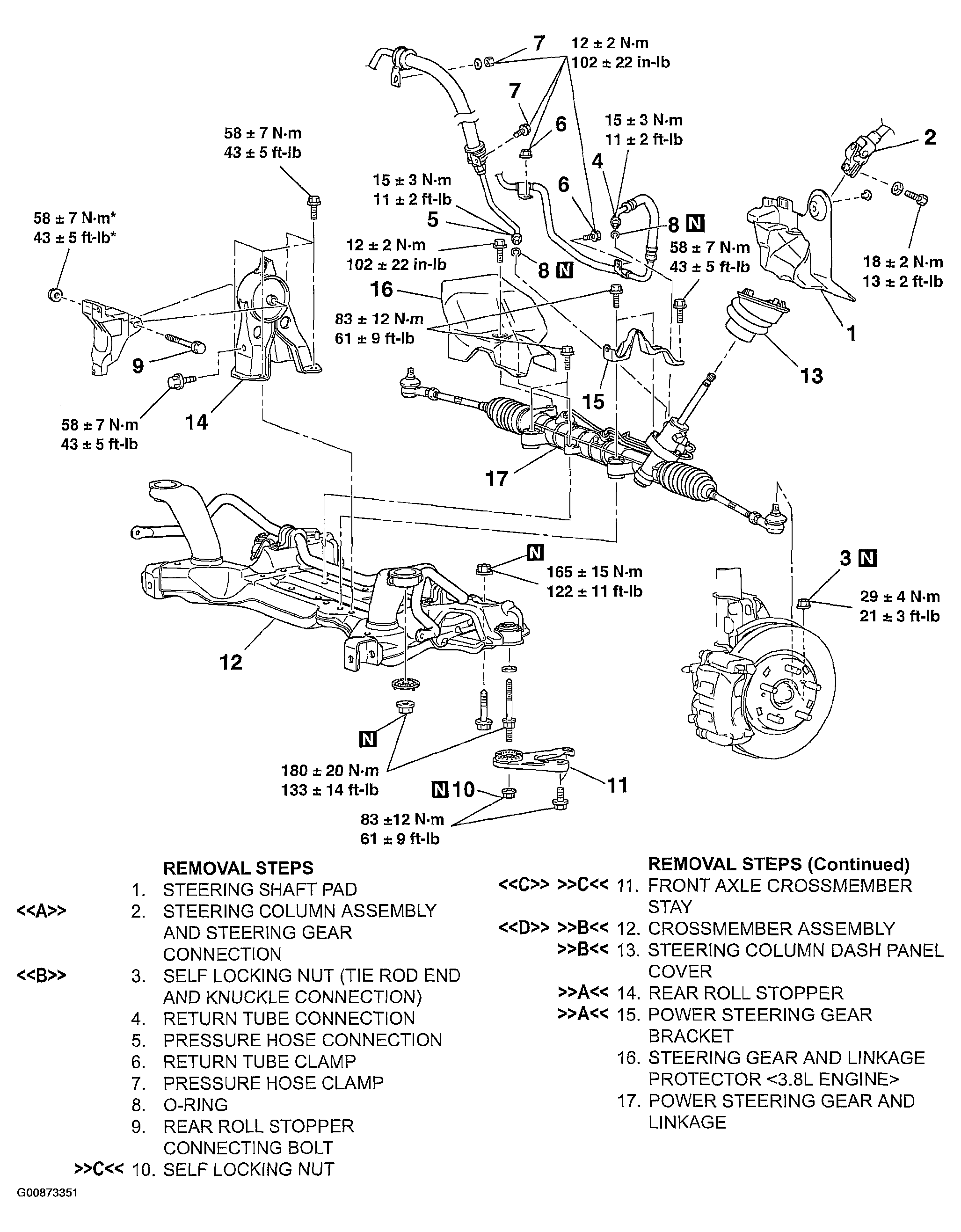

Fig 2: Removing And Installing Power Steering Gear Box And Linkage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991897: Ball Joint Remover
