Removal And Installation < 2.4L Engine >: Notes

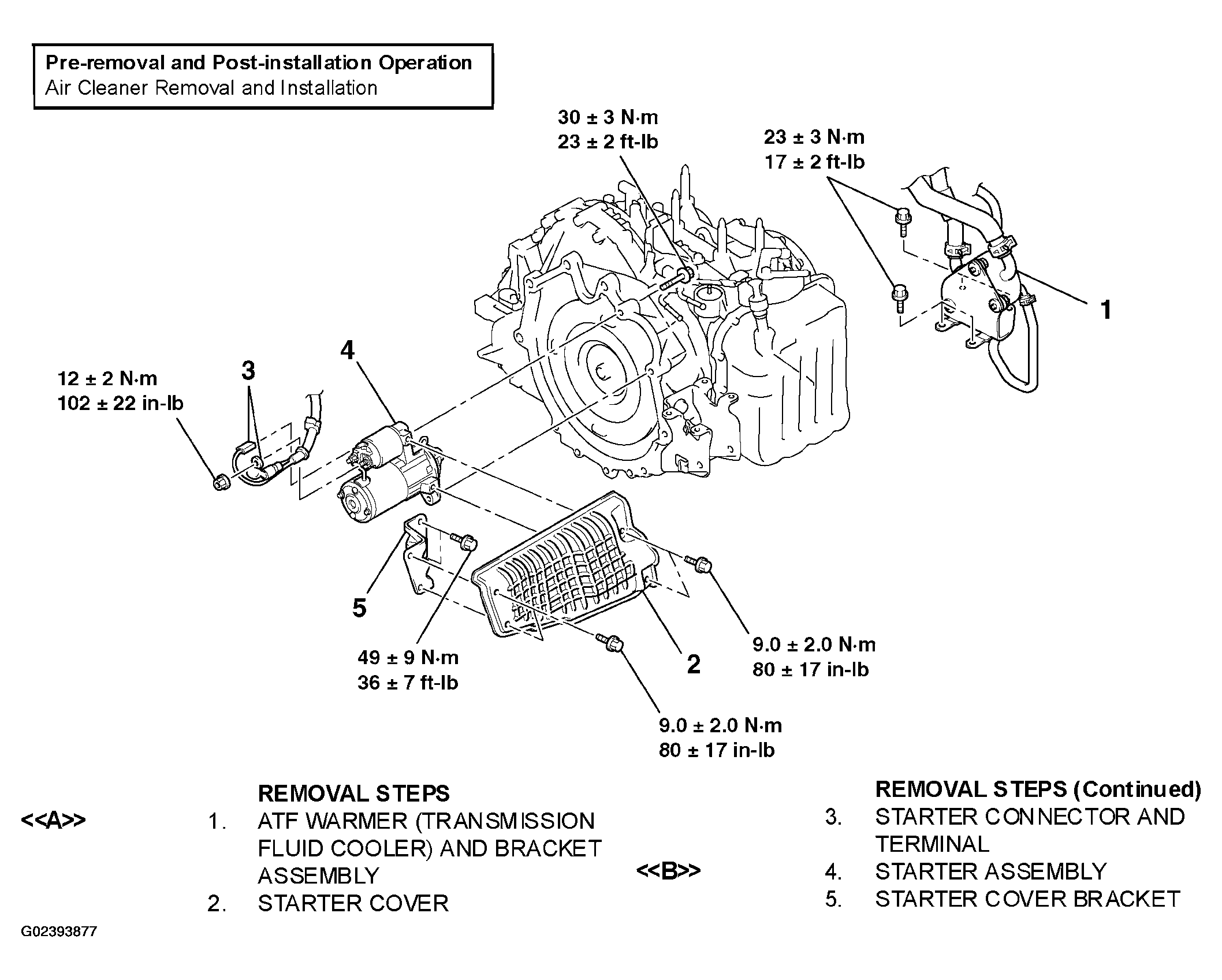

Fig 1: Removing And Installing Starter Motor Assembly (2.4L Engine)
G02393877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
