Removal And Installation: Notes

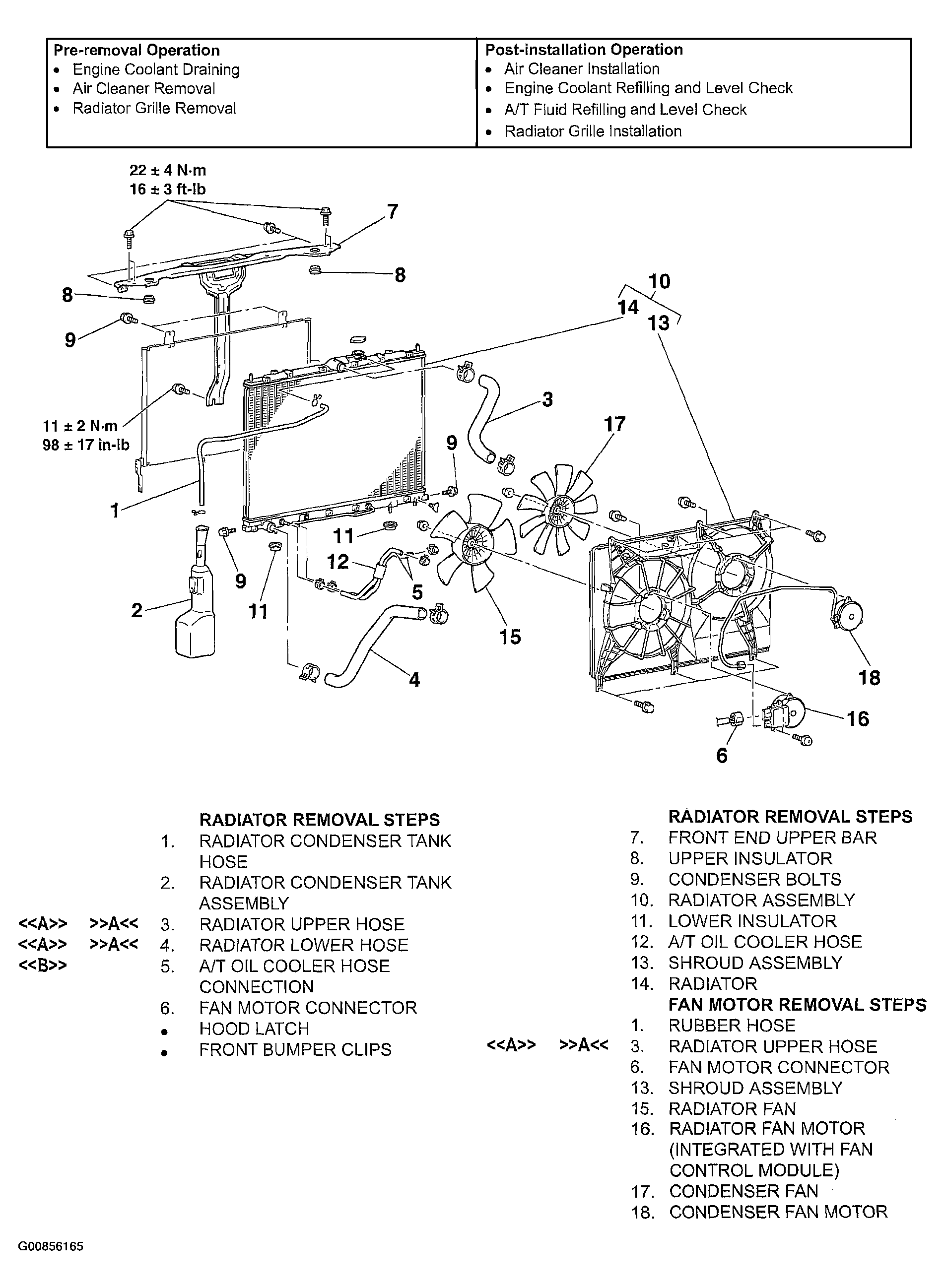

Fig 1: Removing/Installing Radiator Components
G00856165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
