4TH Gear Range

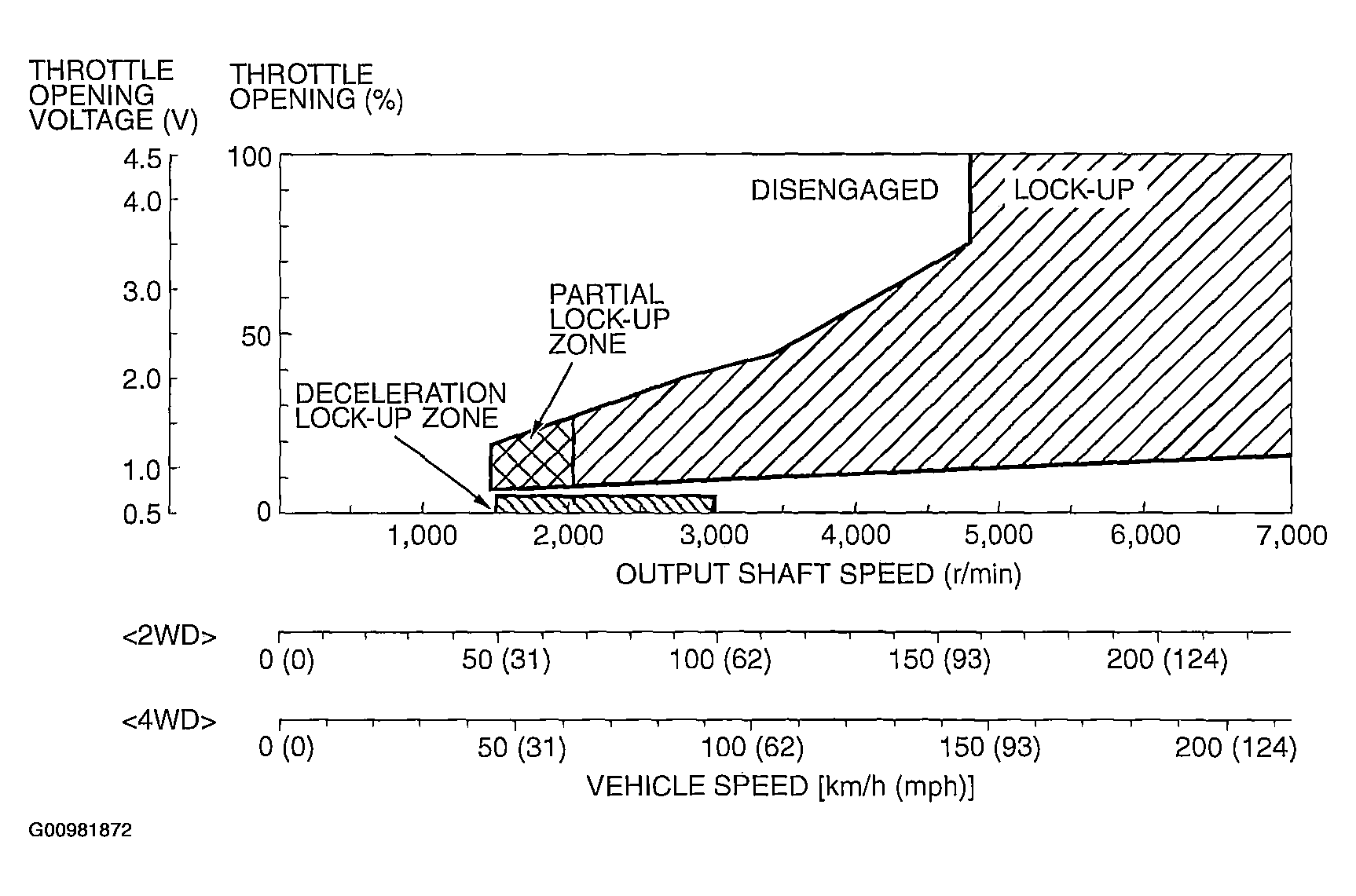

Fig 1: Torque Converter Clutch Control 4TH Gear Range Chart
G00981872Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
