Connector D-35 Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Connector D-35 Connector End View

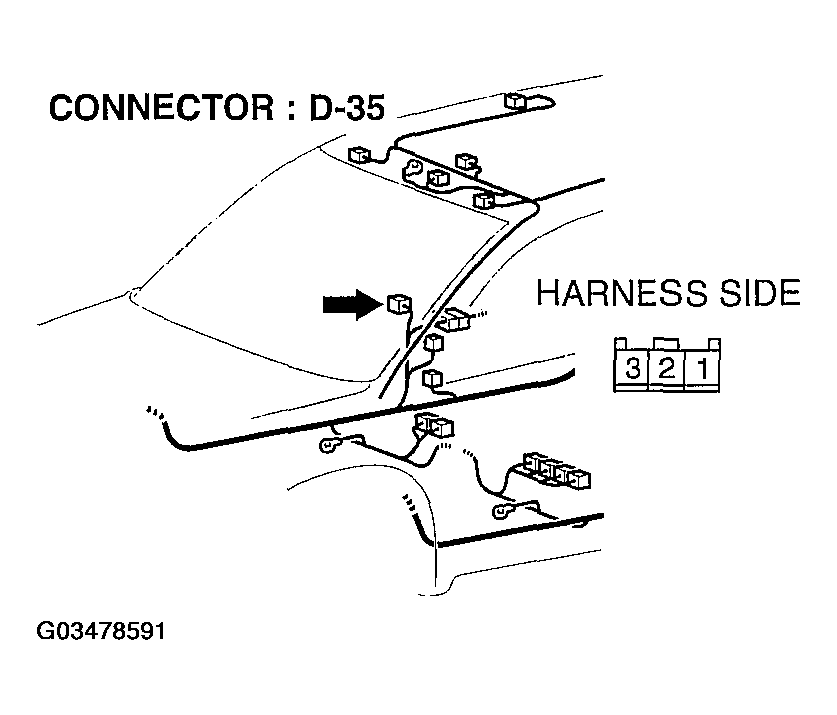

Fig 1: Connector D-35 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
