Inspection Procedure Using An Oscilloscope: Notes

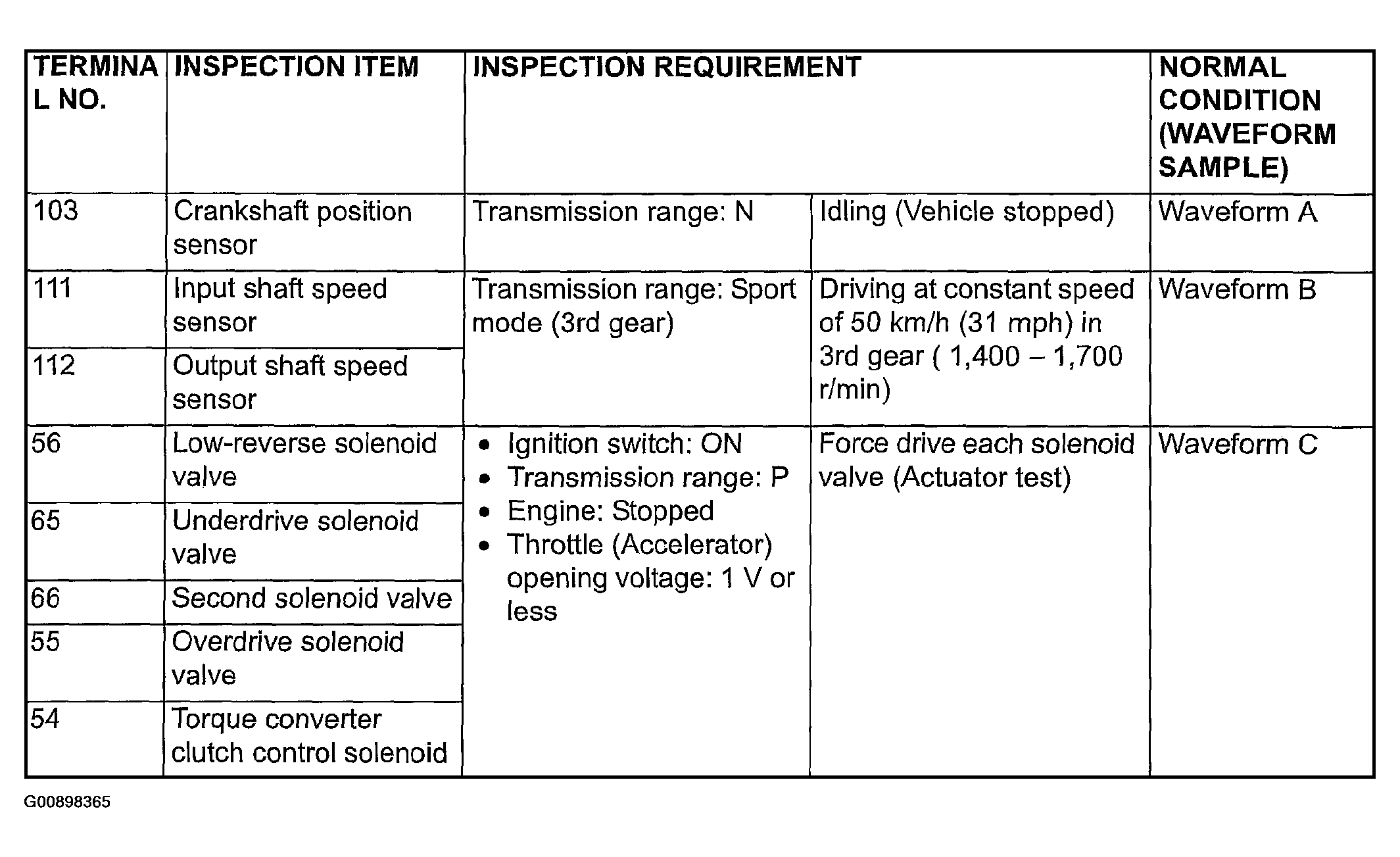

Fig 1: Oscilloscope Inspection Procedure Chart
G00898365Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
