Fail-Safe/Backup Function

When a malfunction of a main sensor or actuator is detected by the PCM, the transaxle is controlled by pre-set control logic to maintain safe conditions for driving.

The following table shows how the fail-safe/backup function affects vehicle driveability and operation.

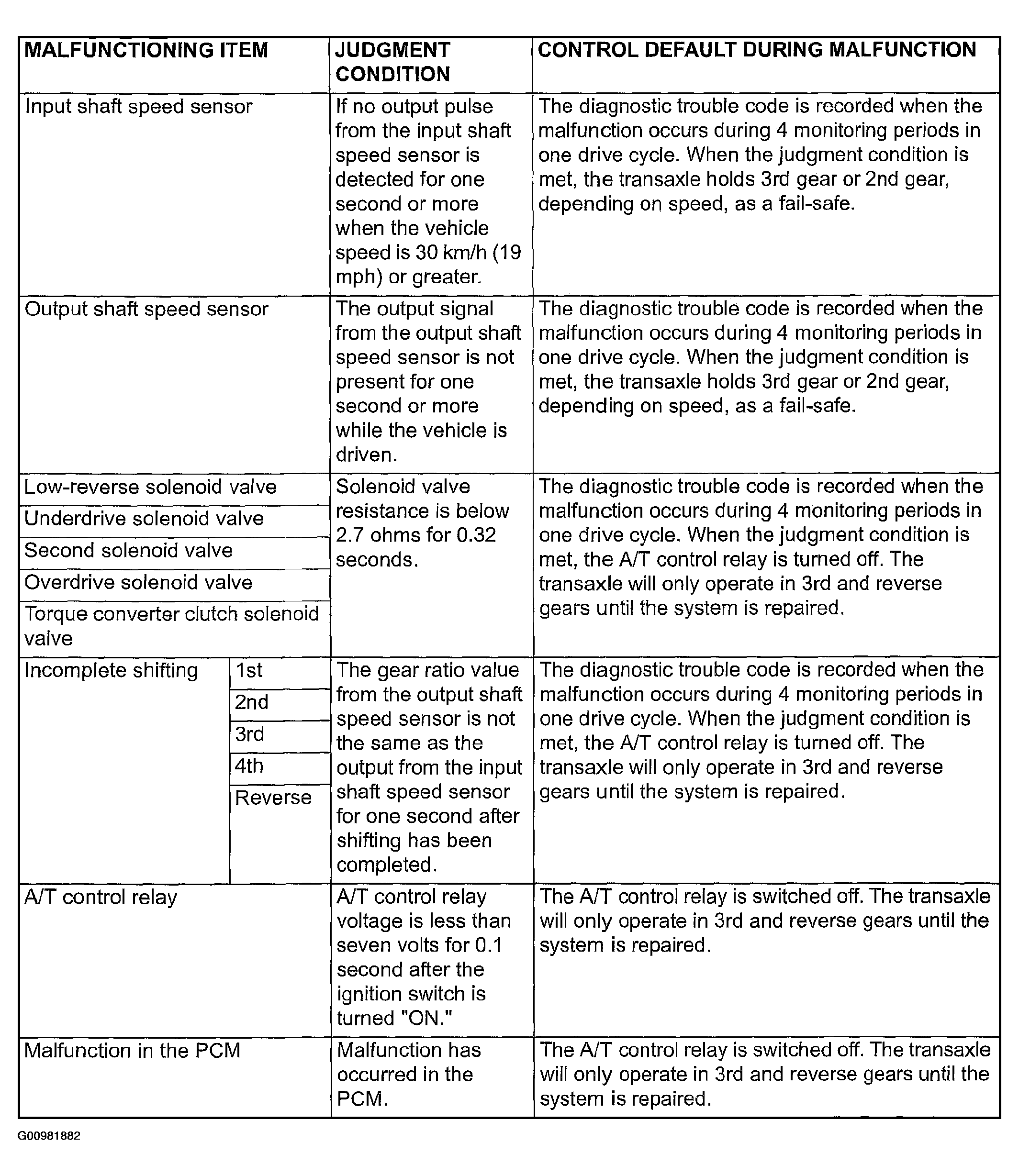

Fig 1: Fail-Safe/Backup Function Chart
G00981882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
