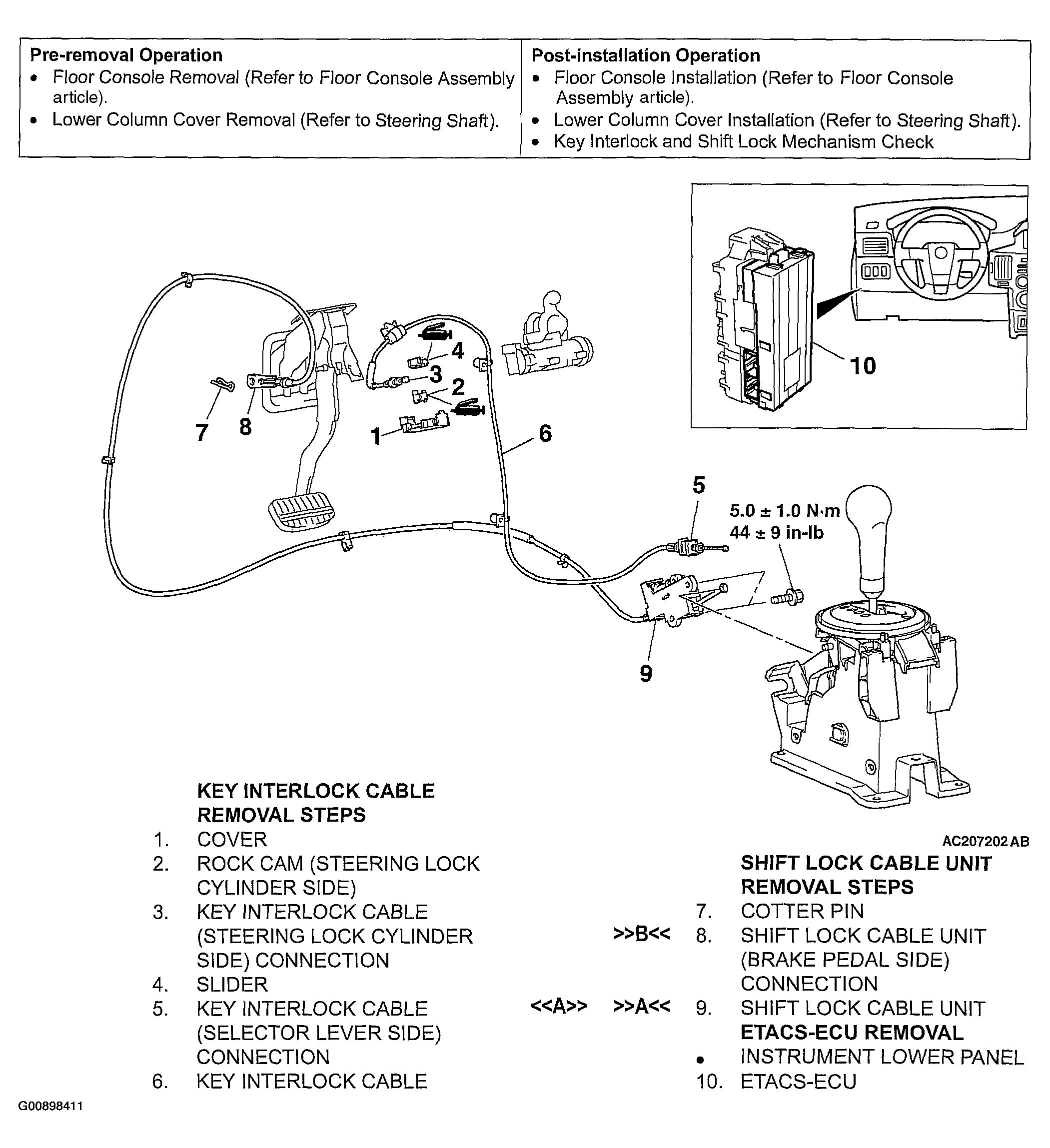

Removal And Installation: Notes
CAUTION:
When removing and installing the shift lock cable unit and key interlock cable, be careful not to hit the SRS-ECU.
Pre-removal Operation
- Floor Console Removal (Refer to FLOOR CONSOLE ASSEMBLY ).
- Lower Column Cover Removal (Refer to STEERING SHAFT ).
Post-installation Operation
- Floor Console Installation (Refer to FLOOR CONSOLE ASSEMBLY ).
- Lower Column Cover Installation (Refer to STEERING SHAFT ).
- Key Interlock and Shift Lock Mechanism Check (Refer to KEY INTERLOCK AND SHIFT LOCK MECHANISM CHECK ).
