Removal And Installation: Notes

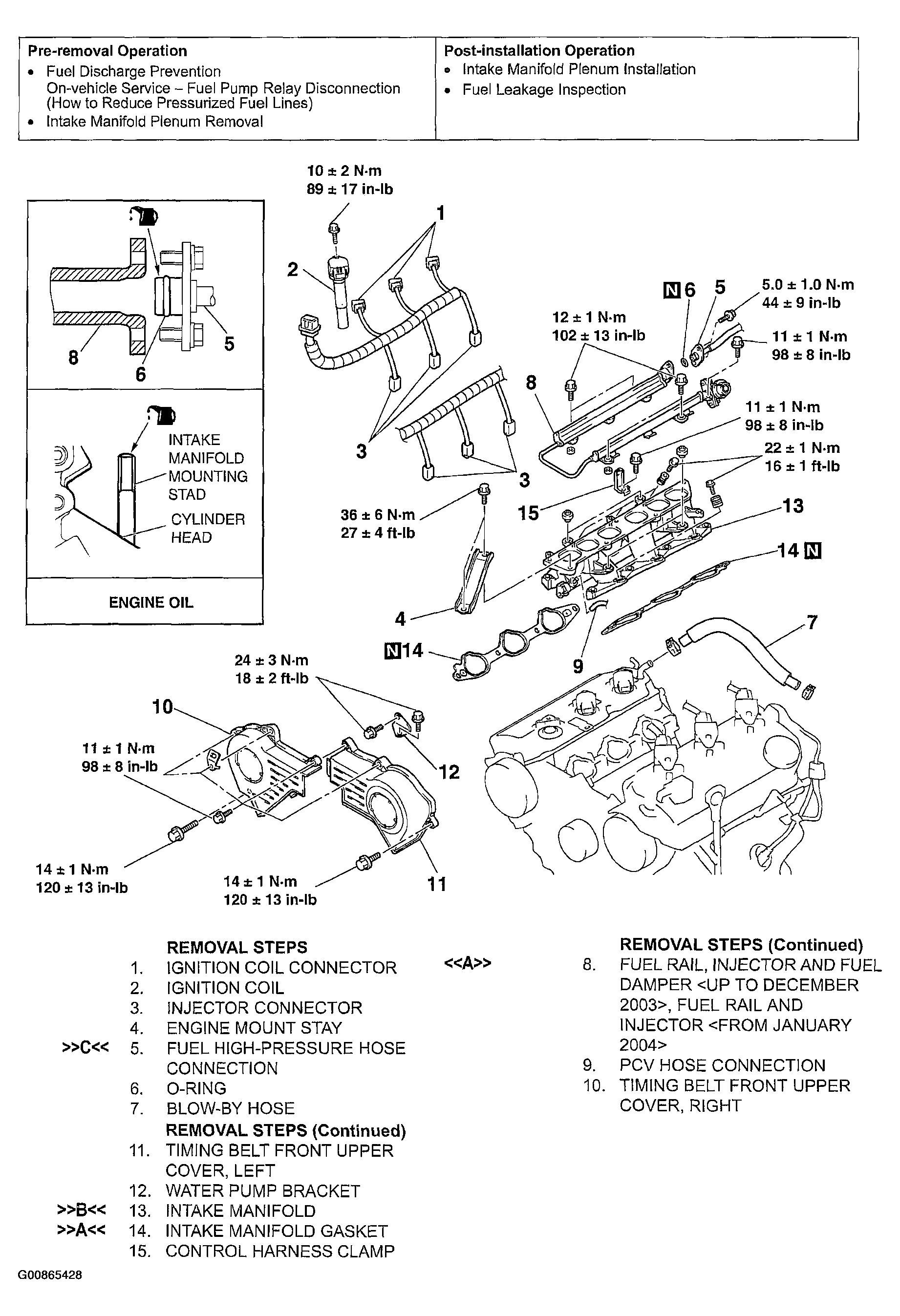

Fig 1: Removing And Installing Intake Manifold
G00865428Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
