Indicator Light Operation Pattern

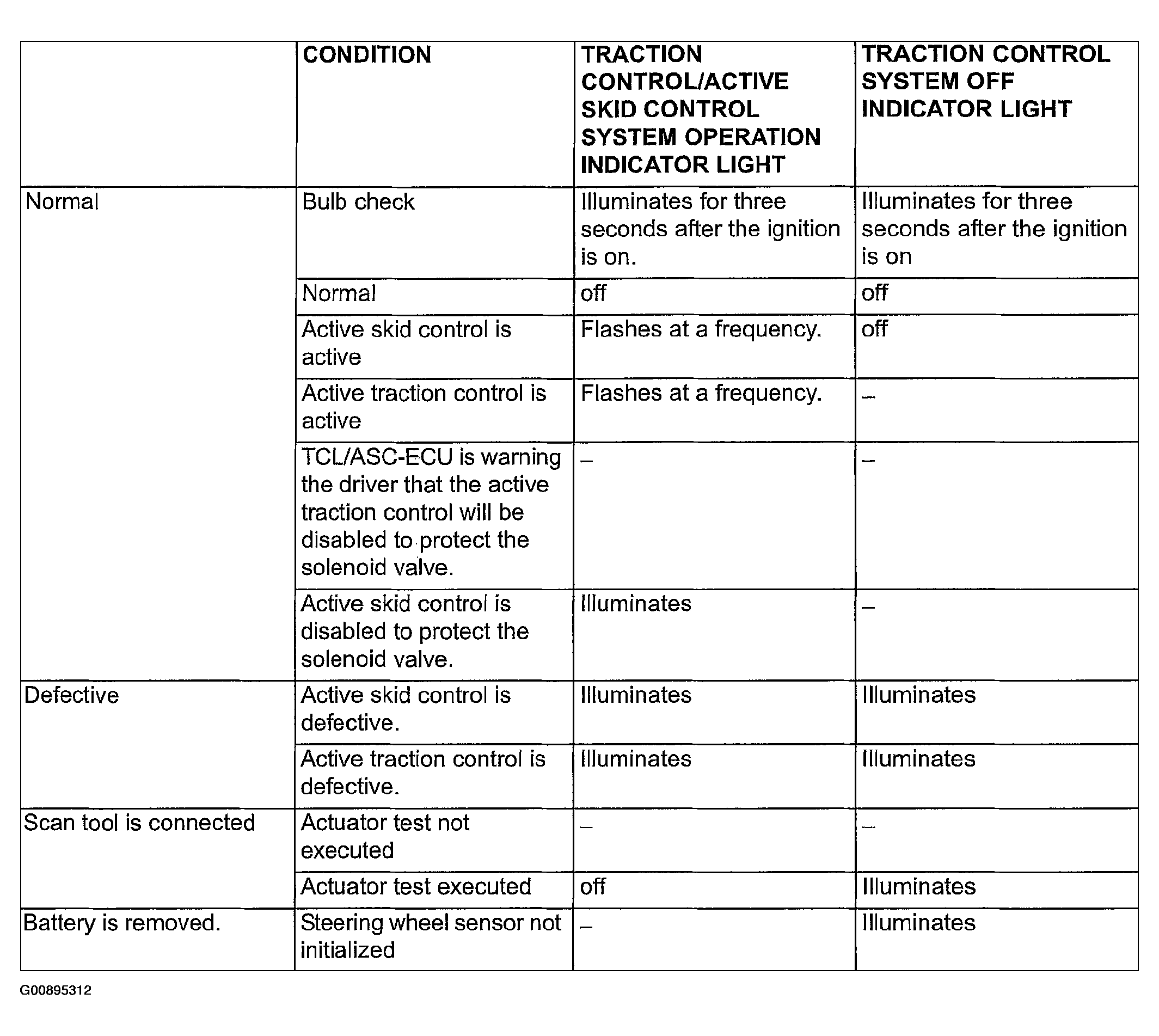

Fig 1: Traction Control System Off Indicator Light Specification
G00895312Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
