Intake Manifold Plenum and Throttle Body Assembly

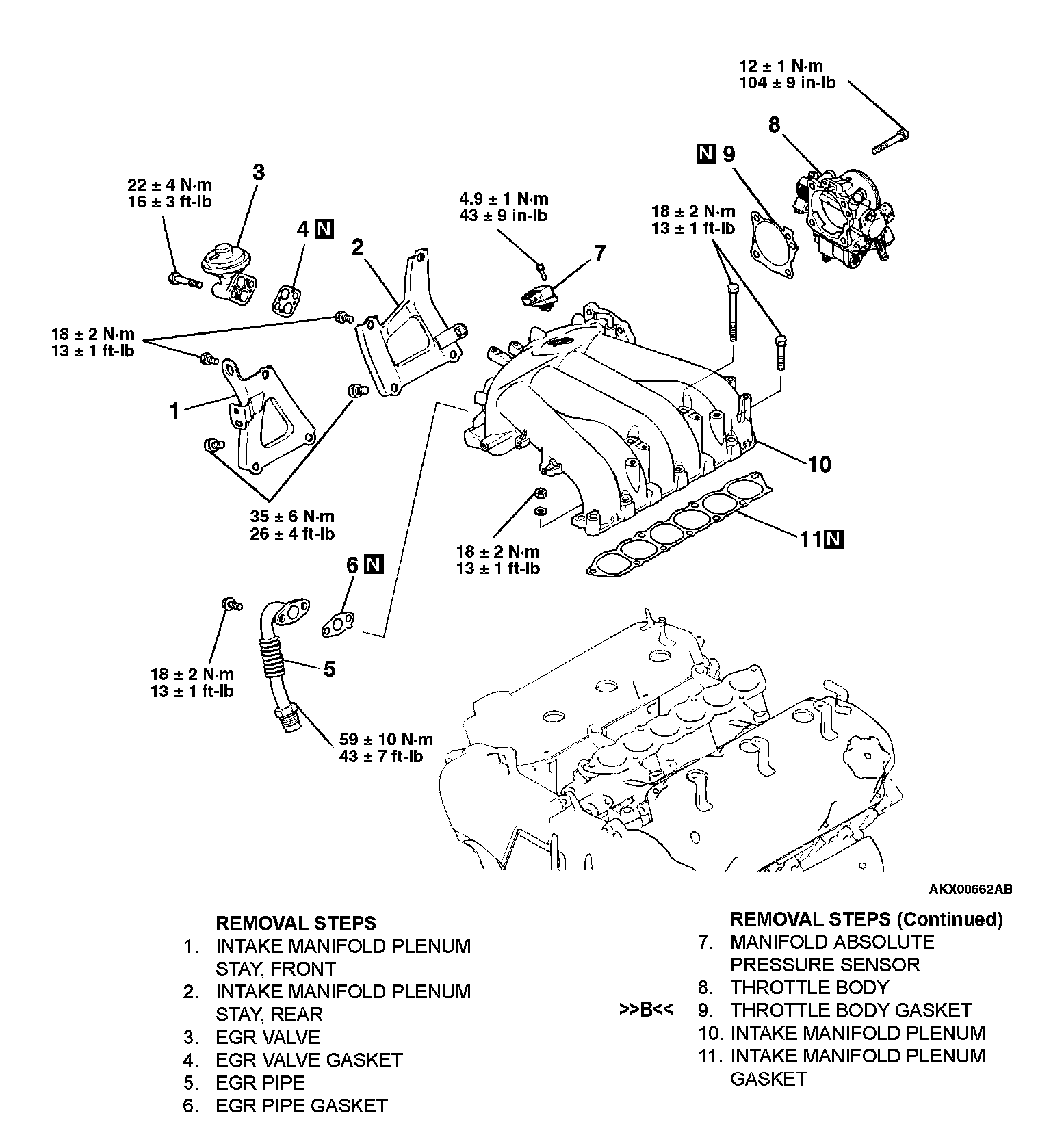

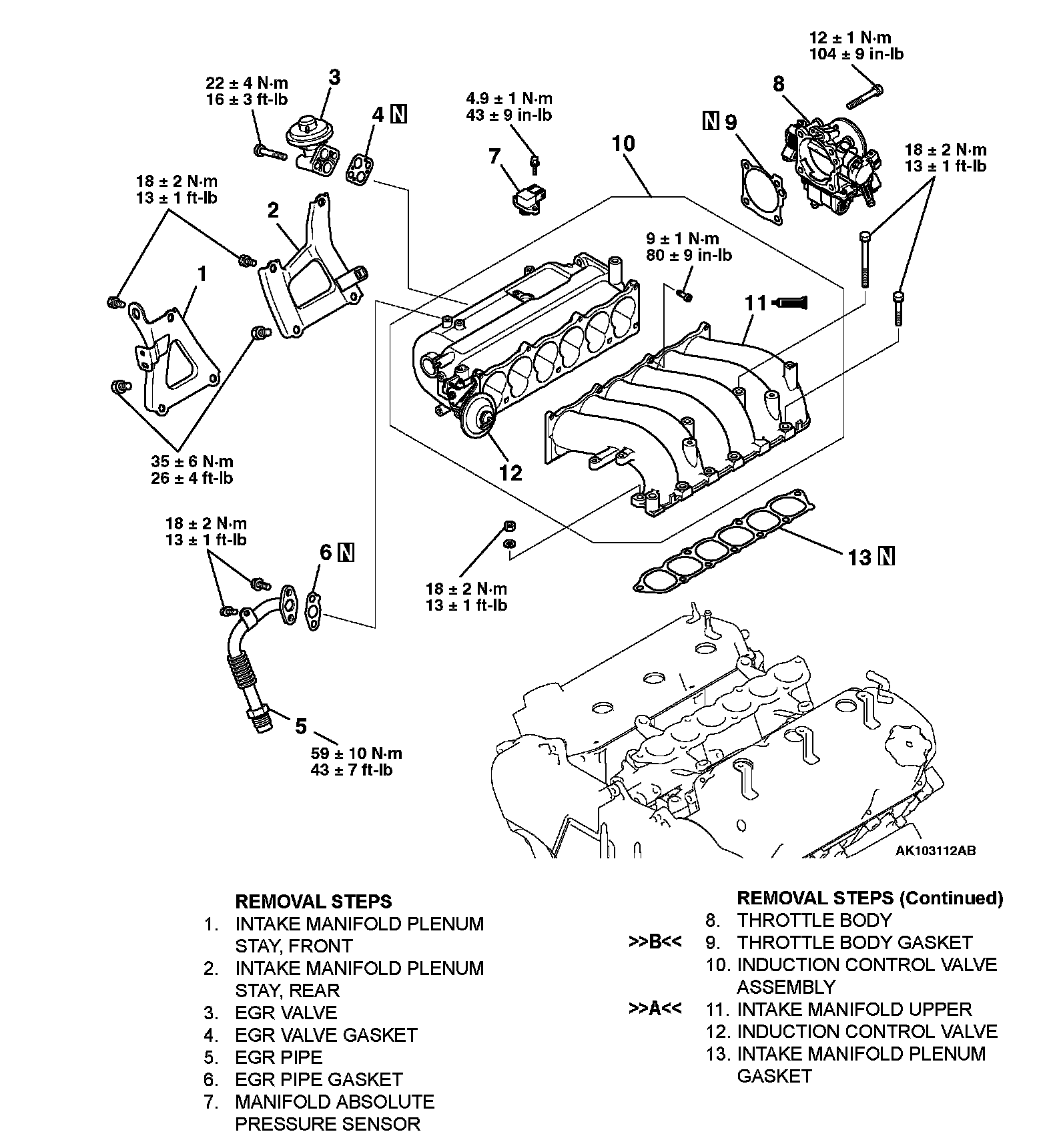

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
