Removal And Installation < 2.4L Engine>
Pre-removal and Post-installation Operation
Timing Belt Removal and Installation (Refer to
REMOVAL & INSTALLATION
.)

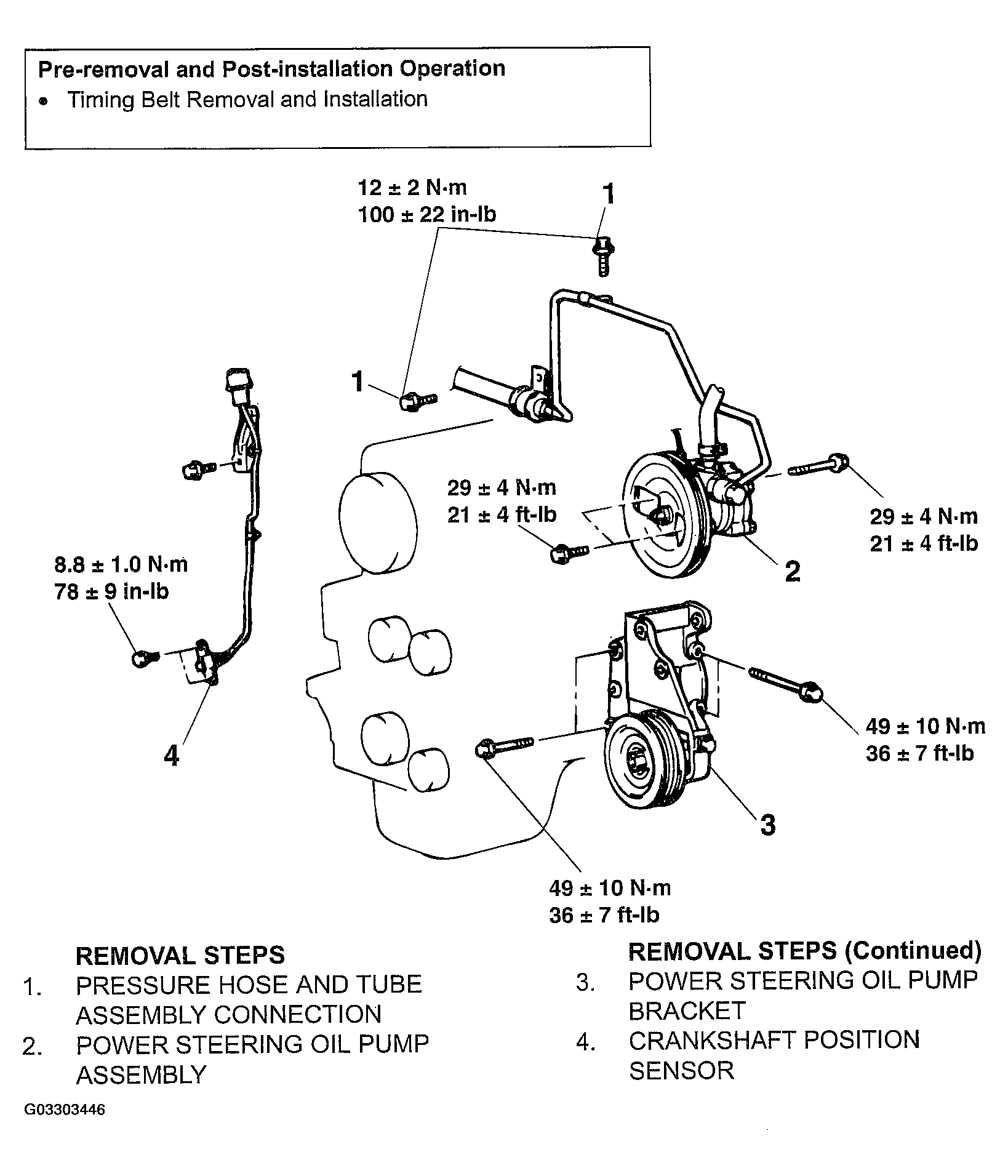

Fig 1: Removing And Installing Crankshaft Position Sensor Components (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
