< Vehicles Without Sport Mode>

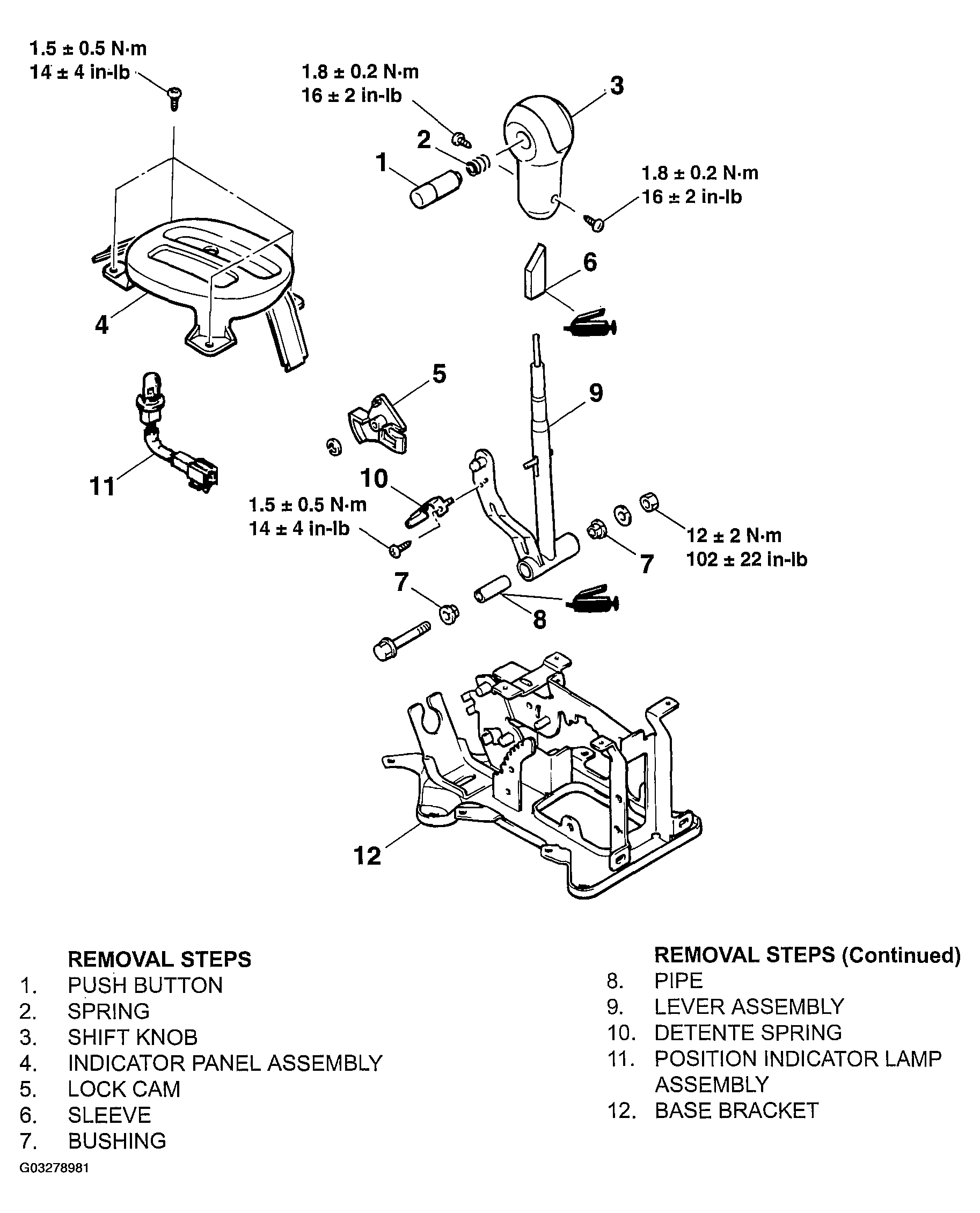

Fig 1: Disassembly And Assembly Of Selector Lever (Vehicles Without Sport Mode)
G03278981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
