Data List Reference Table

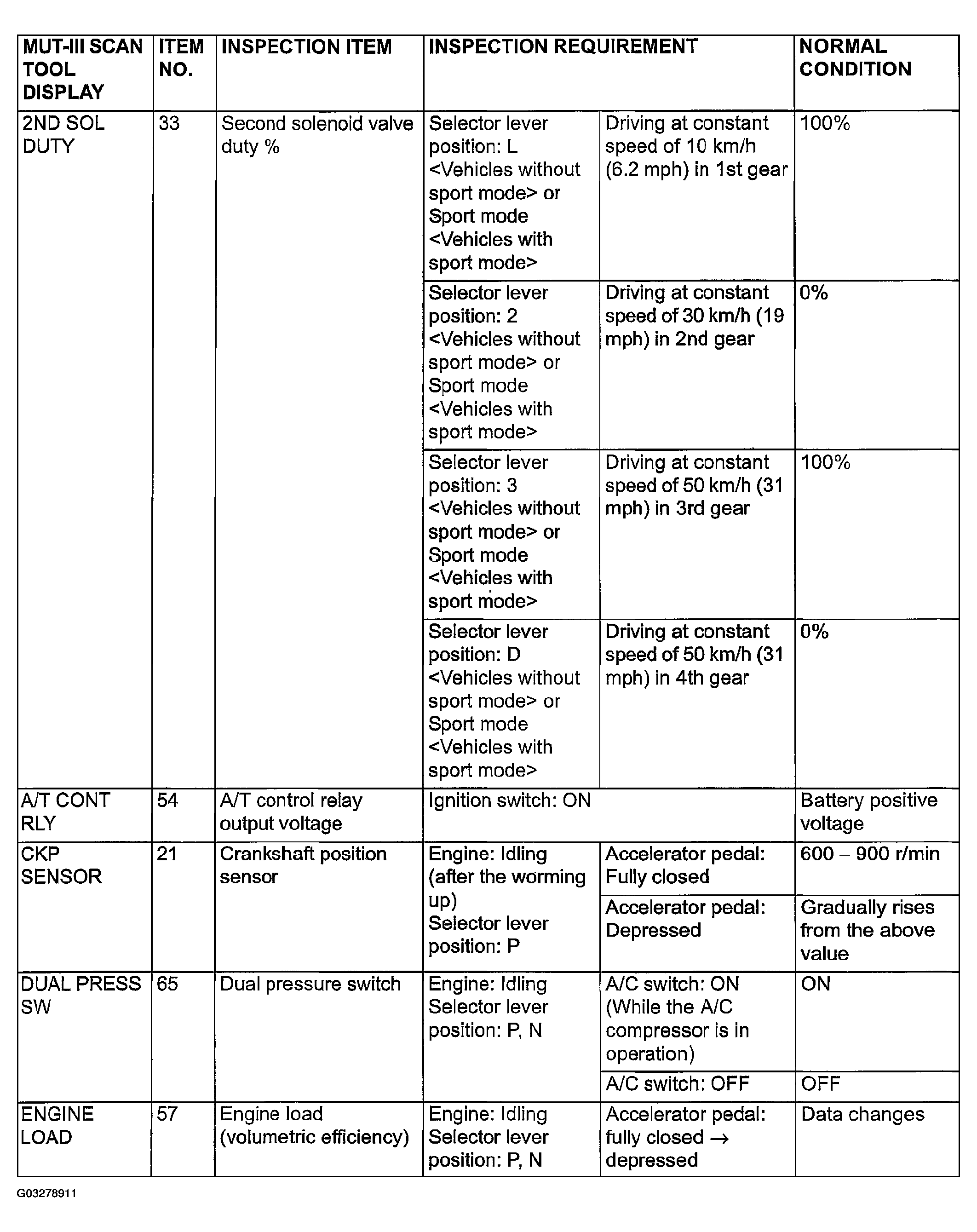

Fig 1: Data List Reference Chart (1 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Data List Reference Chart (2 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Data List Reference Chart (3 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Data List Reference Chart (4 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Data List Reference Chart (5 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Data List Reference Chart (6 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Data List Reference Chart (7 Of 7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
