Road Test

ROAD TEST

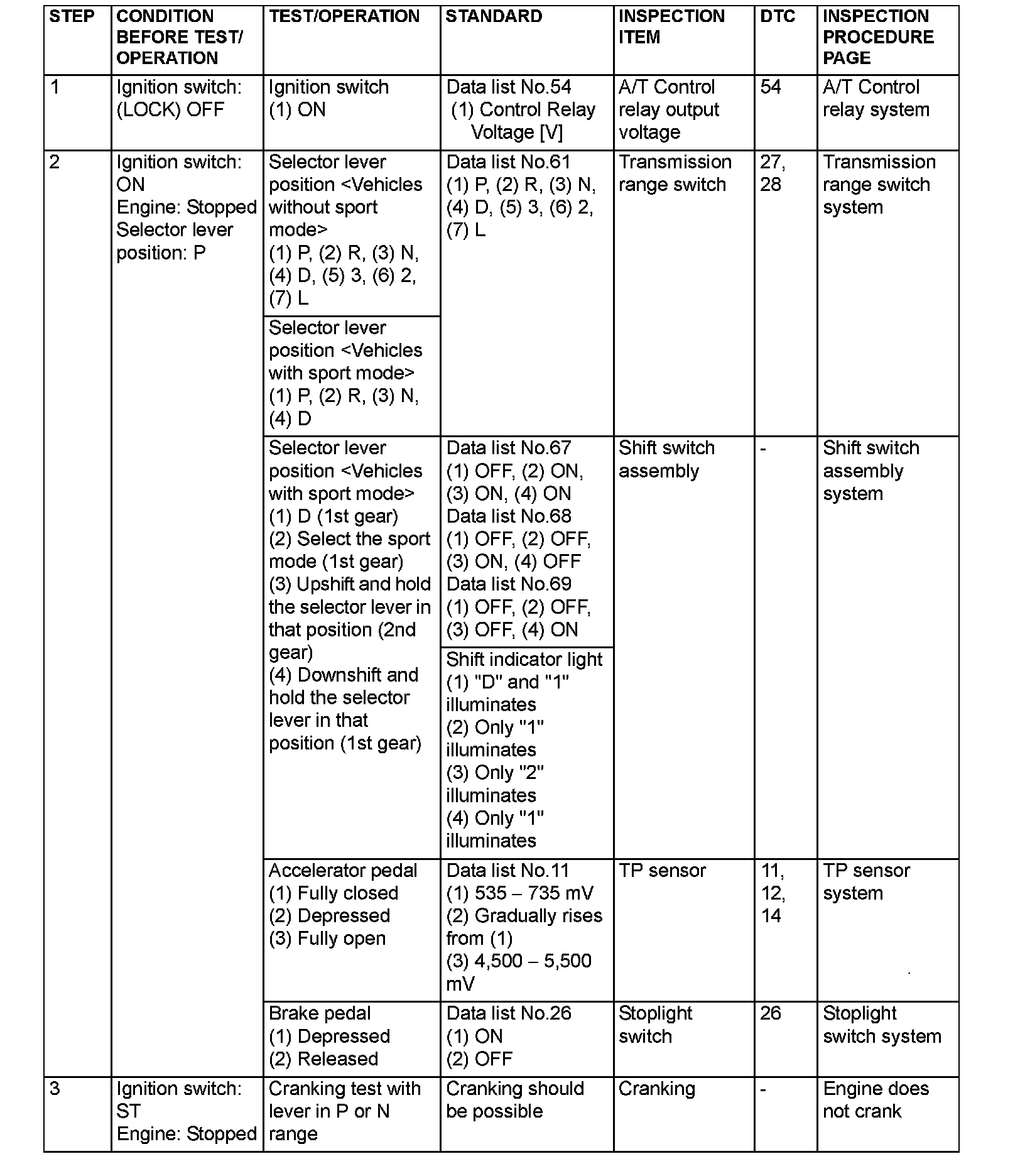

Steps 1-3:

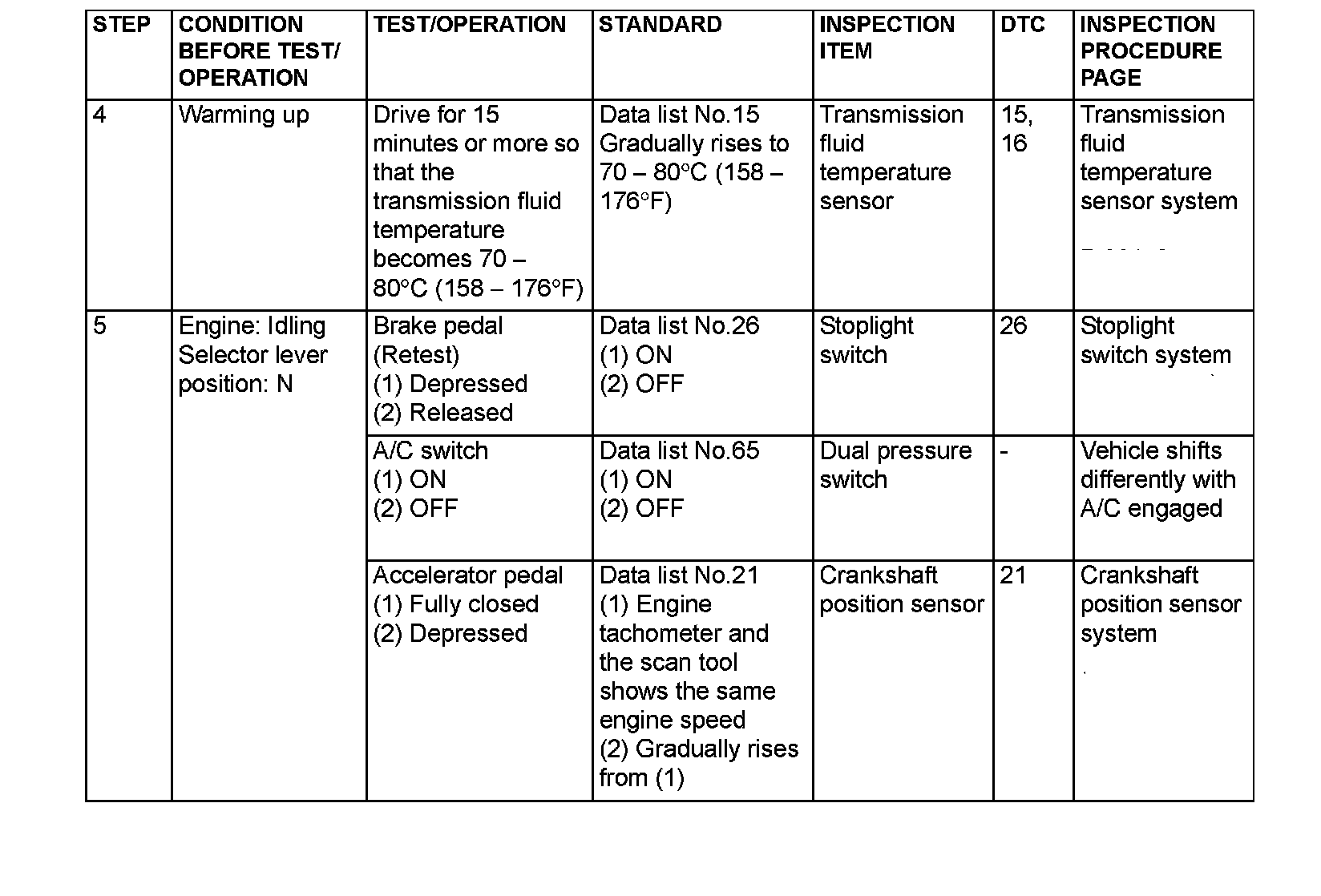

Steps 4 & 5 (continued):

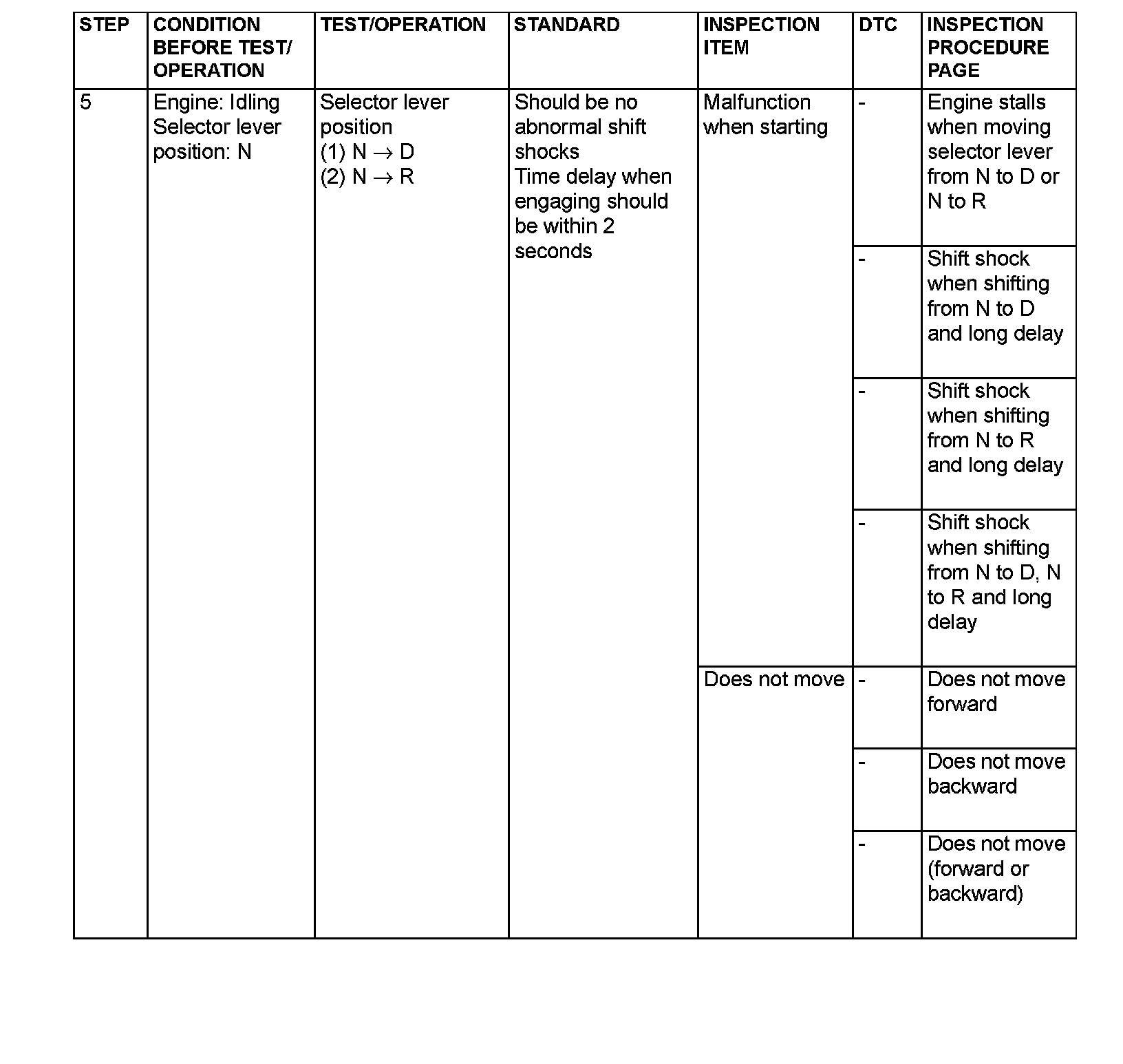

Step 5:

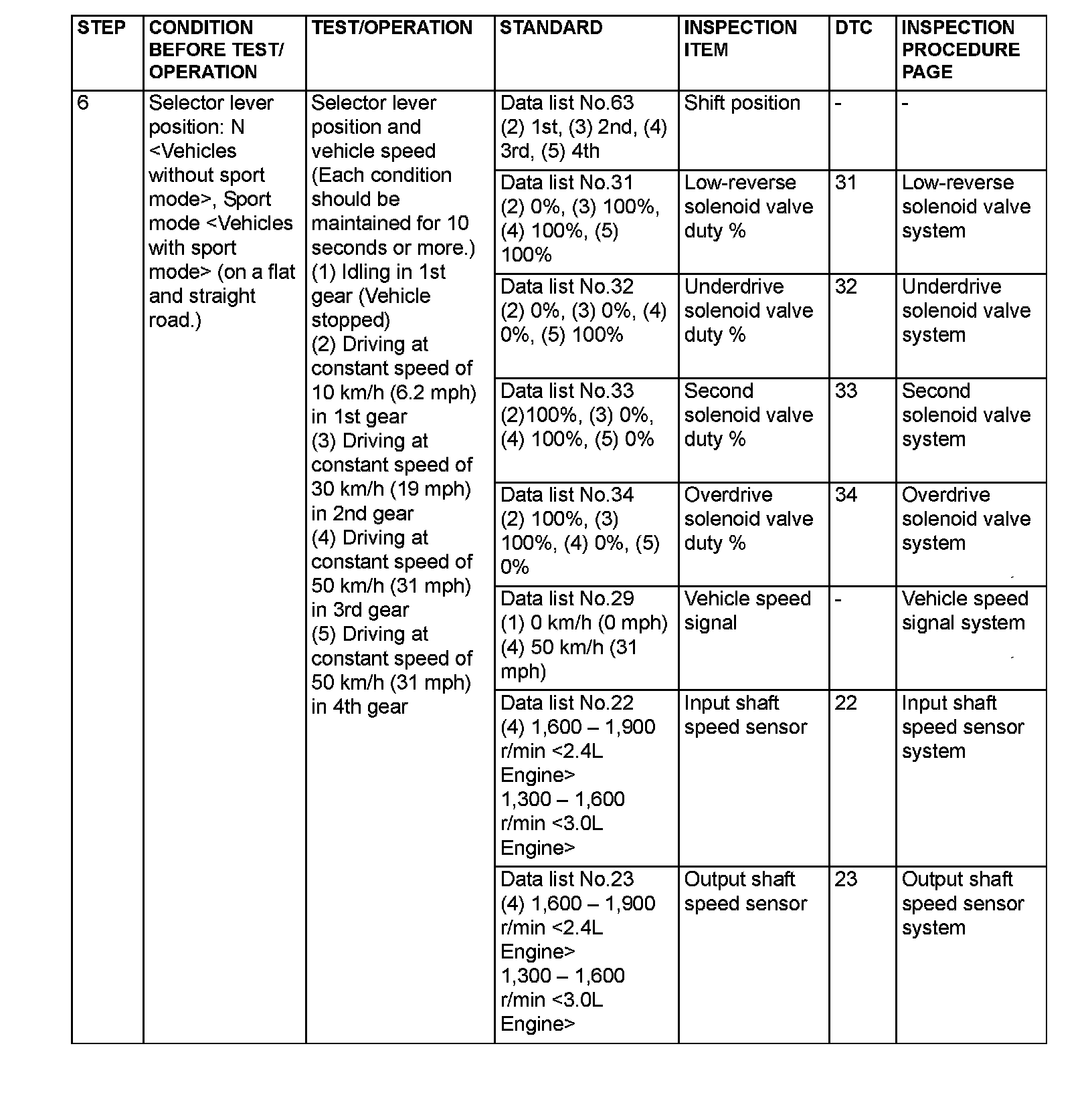

Step 6:

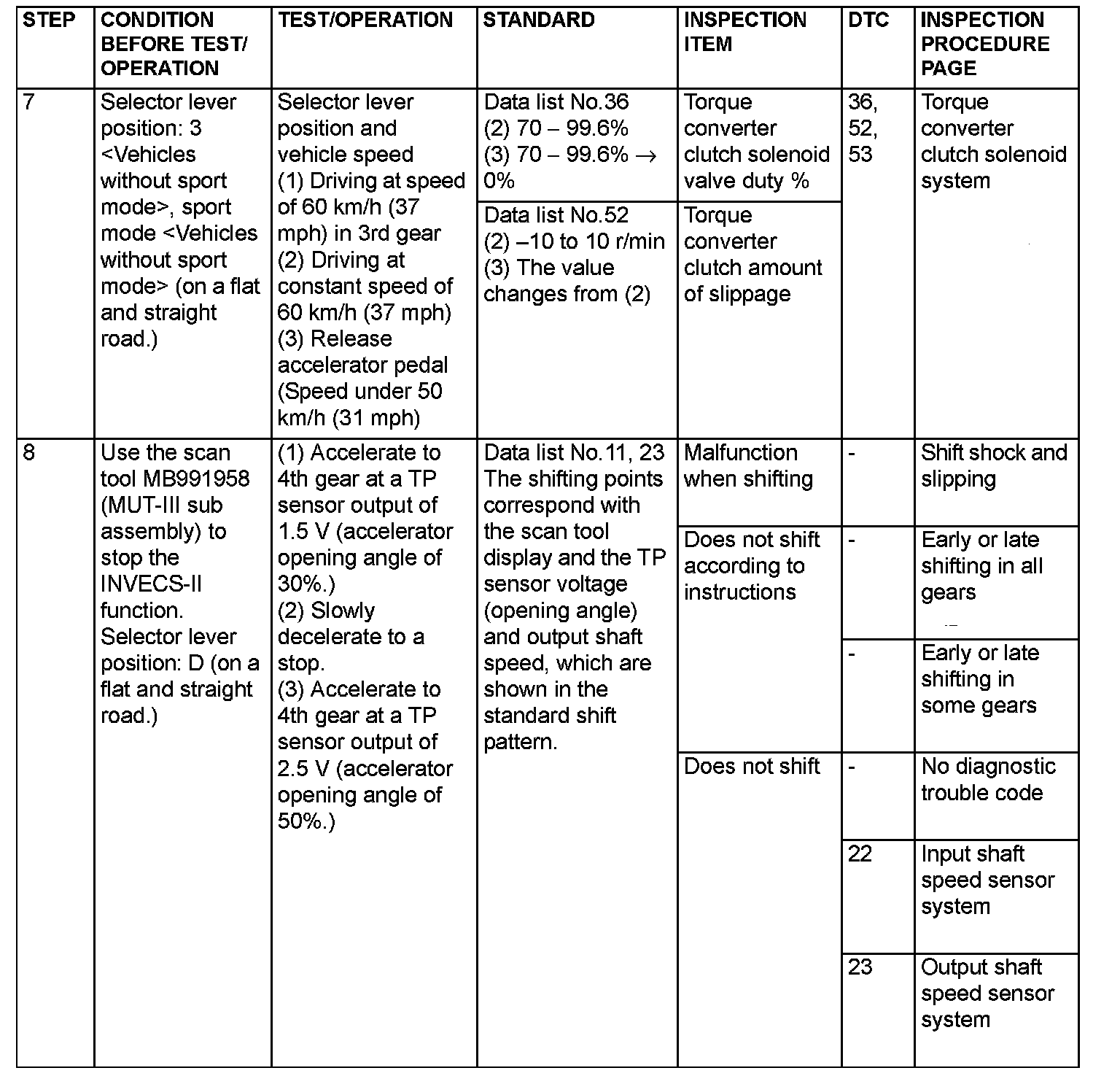

Steps 7 & 8:

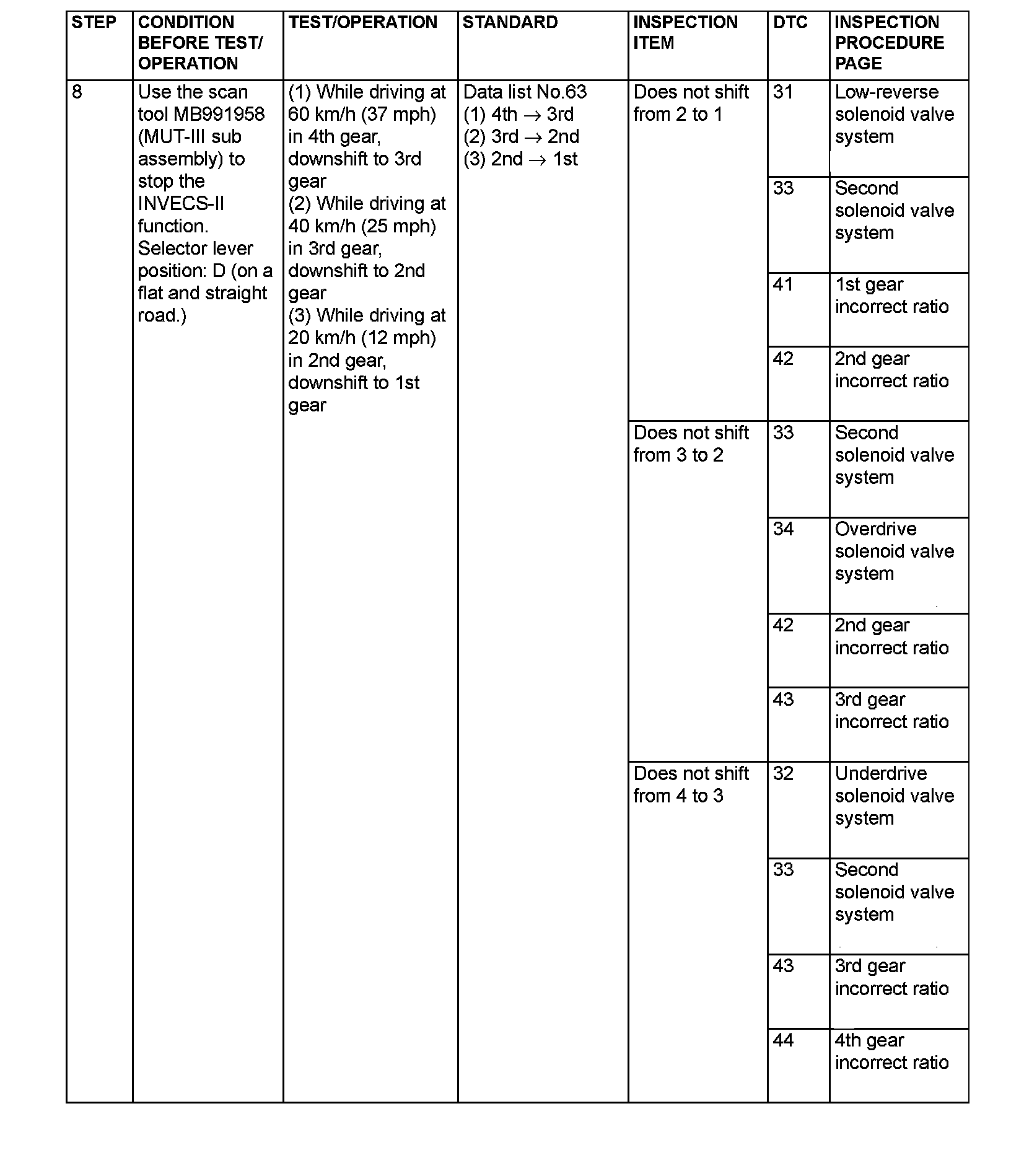

Step 8:




Step 9:





Check by the following procedures
