Input Signal Chart

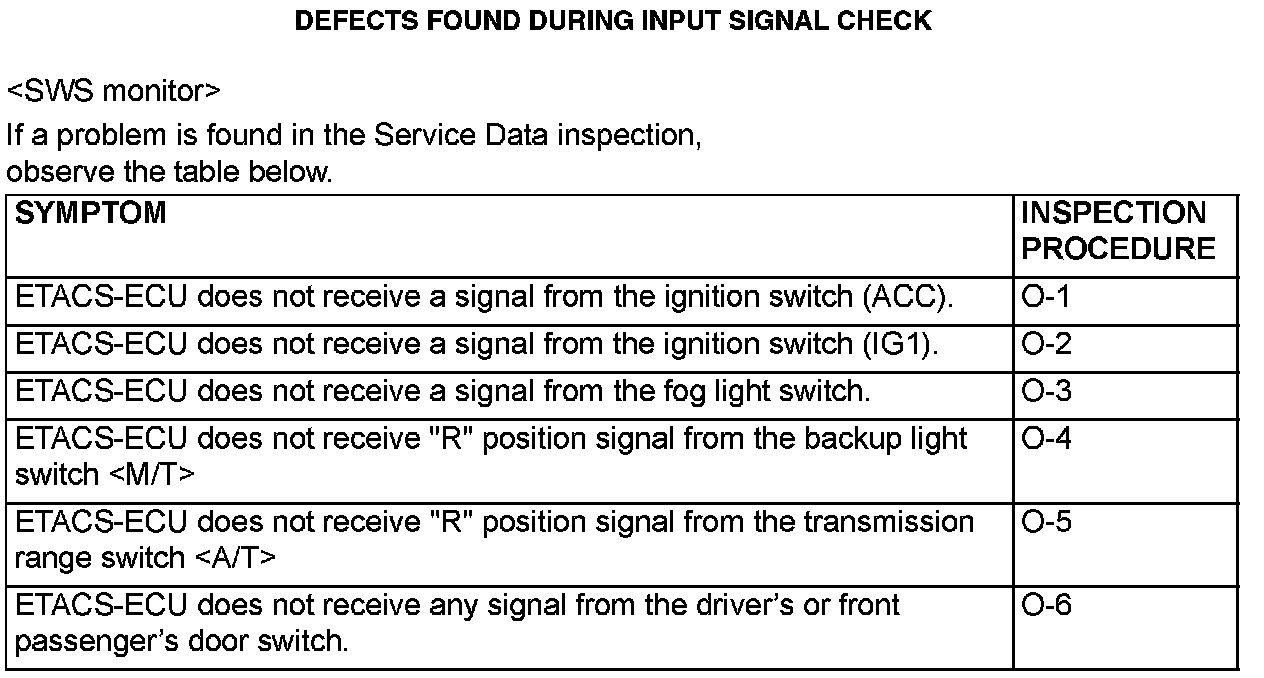

Symptom Chart - SWS Monitor (Part 1):



Symptom Chart - SWS Monitor (Part 2):

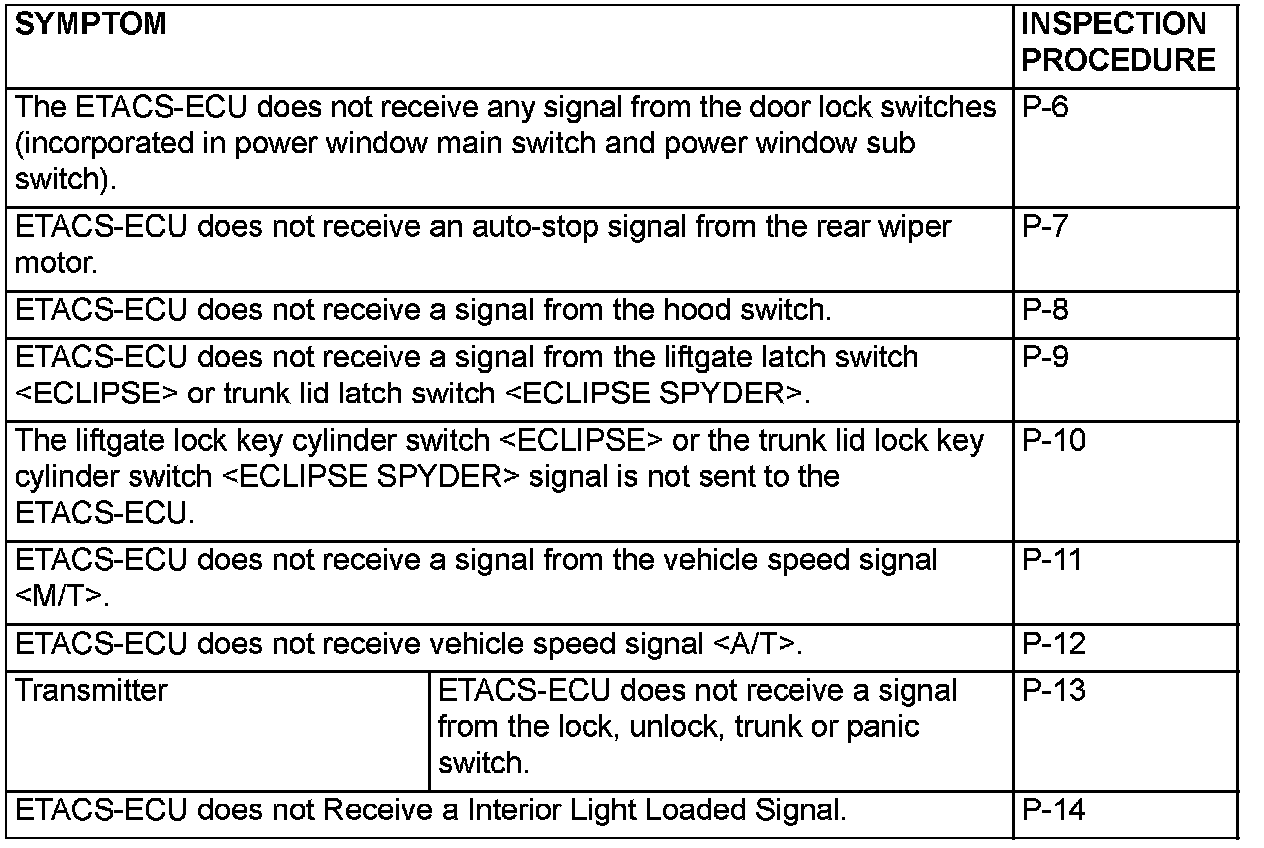

Symptom Chart - Scan Tool Or Voltmeter (Part 1):

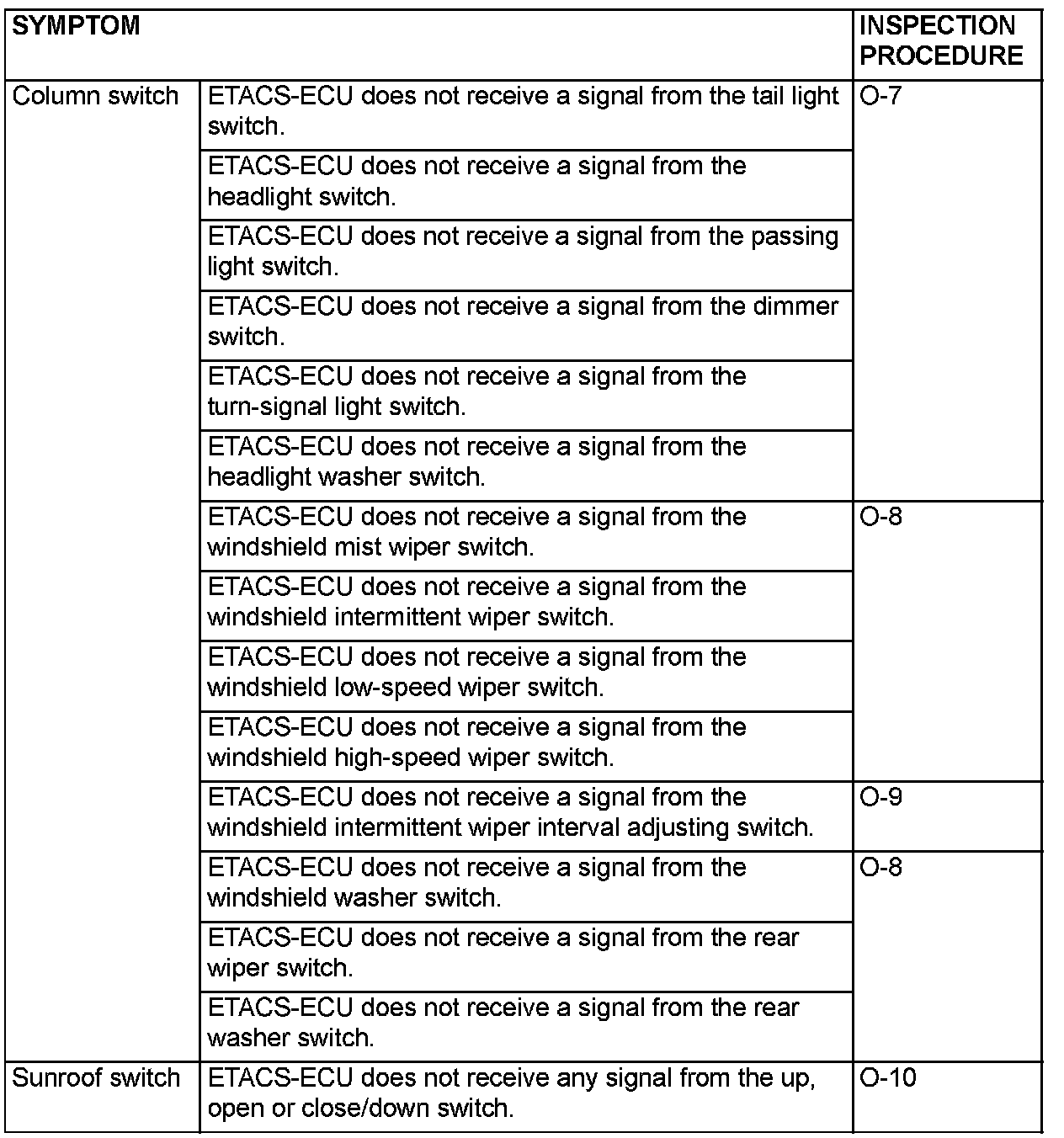

Symptom Chart - Scan Tool Or Voltmeter (Part 2):
