Removal And Installation: Notes

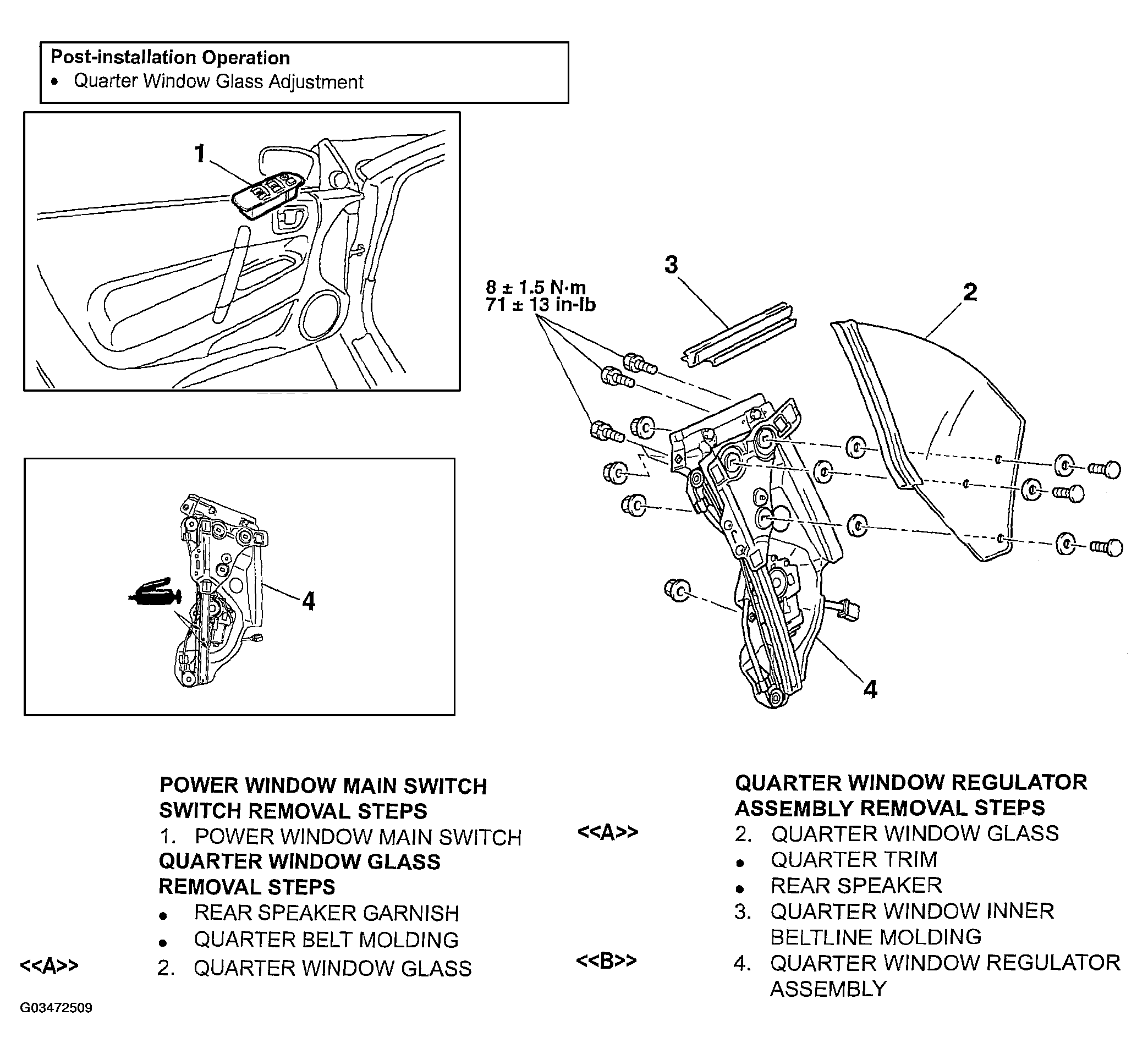

Fig 1: Removing And Installing Quarter Window Glass And Regulator Assembly
G03472509Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
