Sectional View < F4A42>

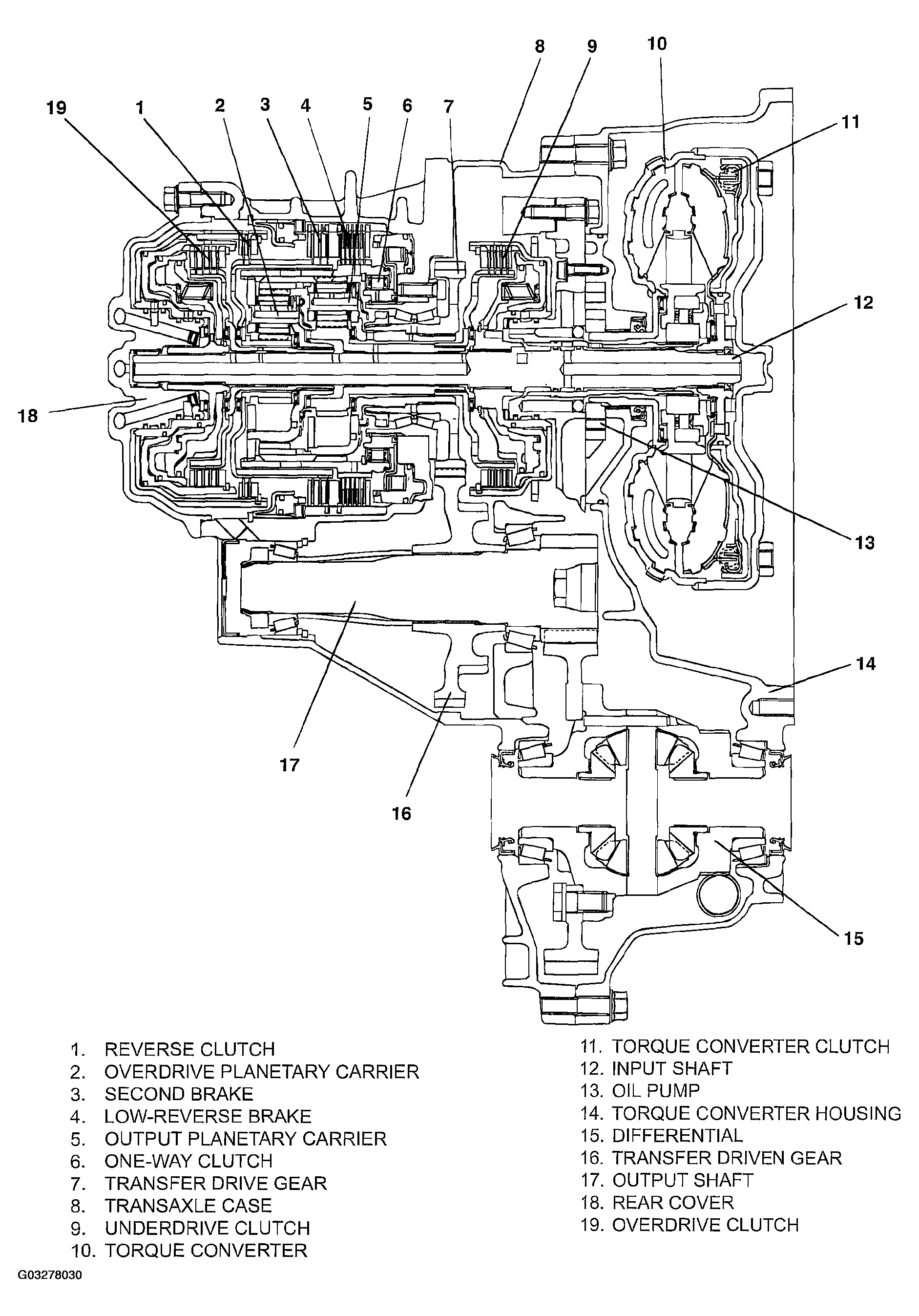

Fig 1: Transaxle Sectional View (F4A42)

G03278030

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
