2.4L Engine

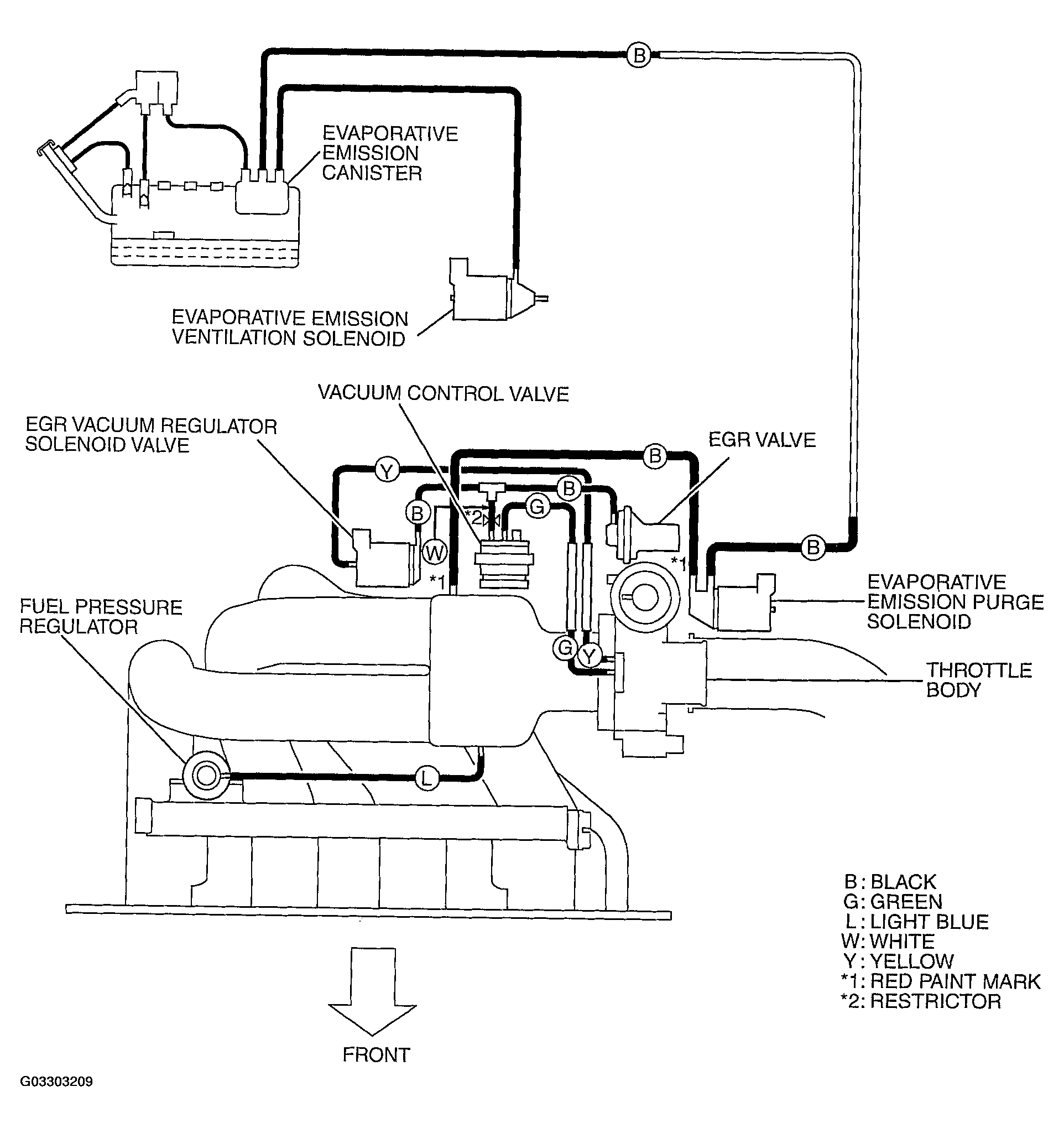

Fig 1: Identifying Vacuum Hose Routing (2.4L Engine)

G03303209

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
