Battery Testing Procedure
>>
Test Step
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test Step

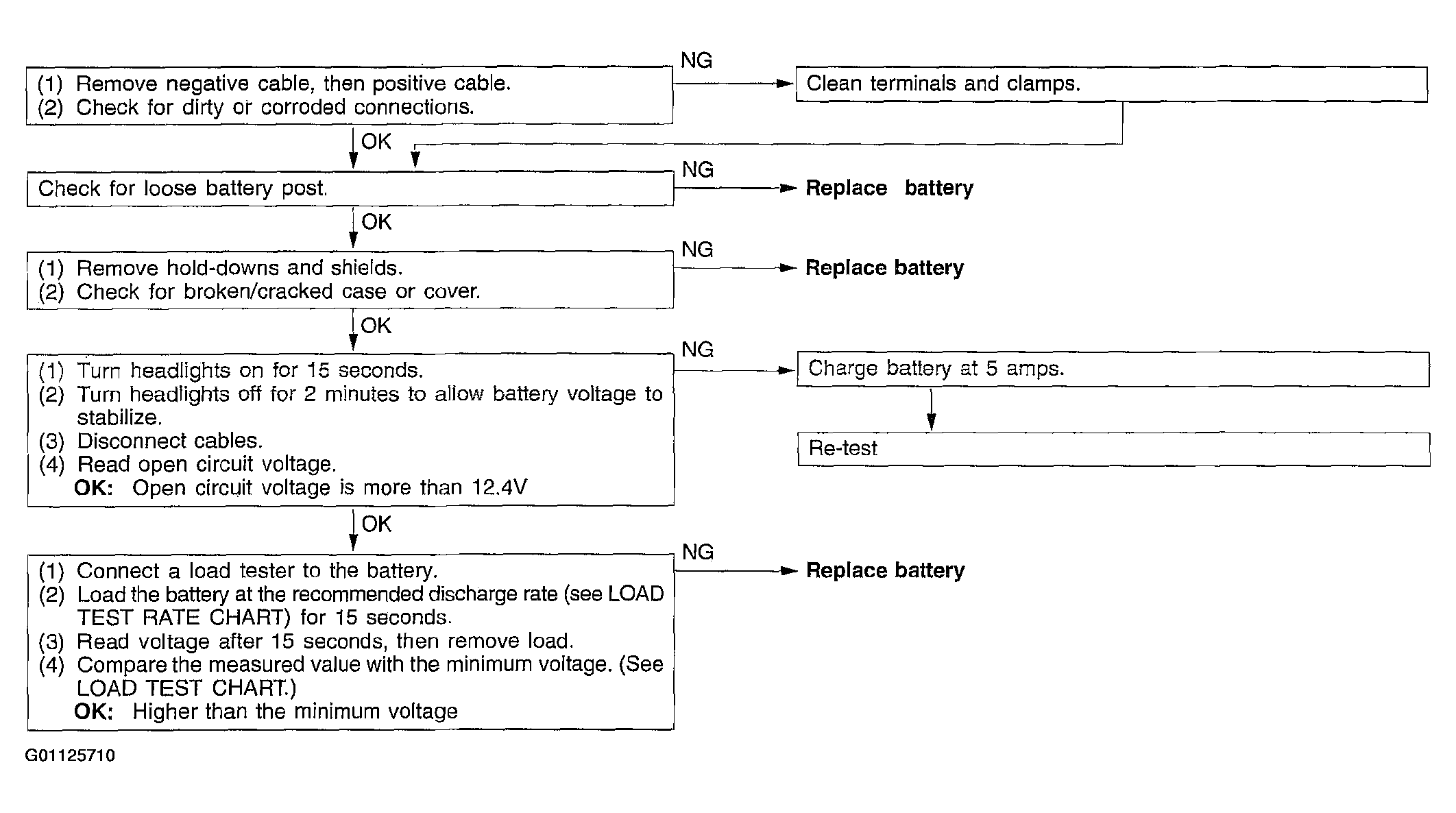

Fig 1: Battery Testing Procedure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
