Outlander XLS, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC 26: Stoplight Switch System
>>
Circuit Operation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Operation
Battery positive voltage is supplied to the stoplight switch (terminal 2).
When the brake pedal is depressed, battery positive voltage is applied to the PCM (terminal 123).

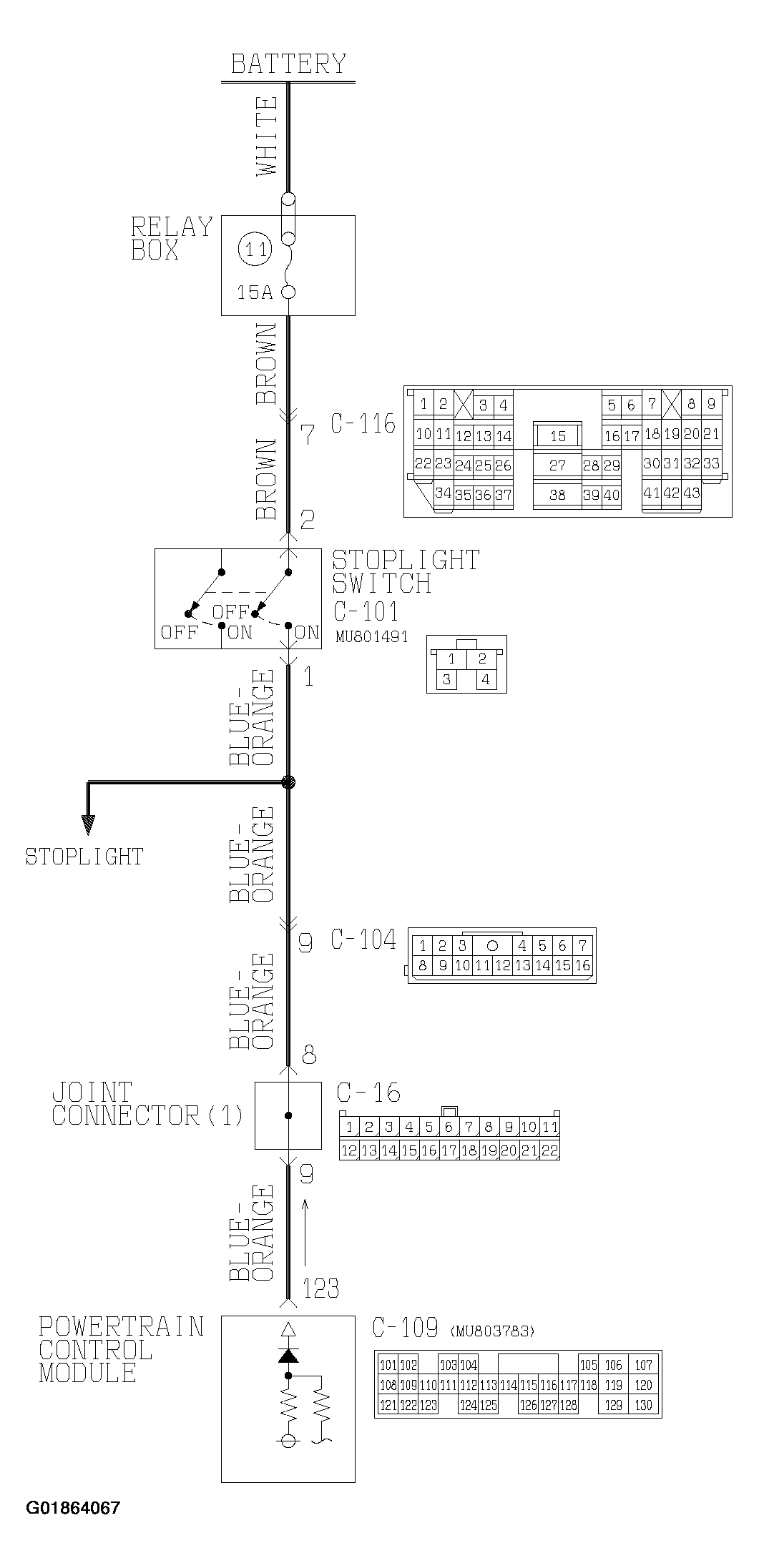

Fig 1: Stoplight Switch System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

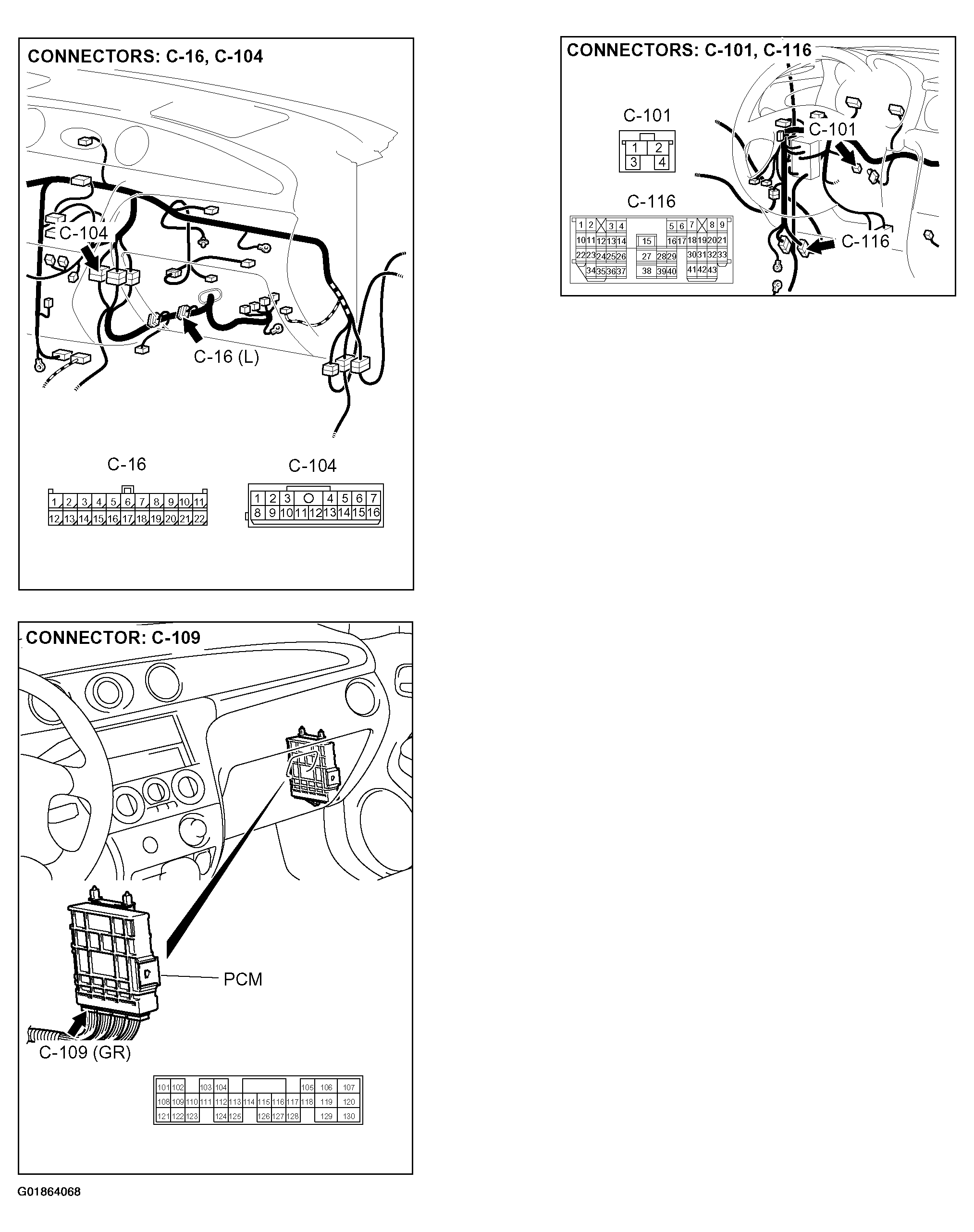

Fig 2: Identifying Stoplight Switch System Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
