Disassembly And Assembly: Notes

Fig 1: Identifying Number Of Clutch Discs And Plates
G01863283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

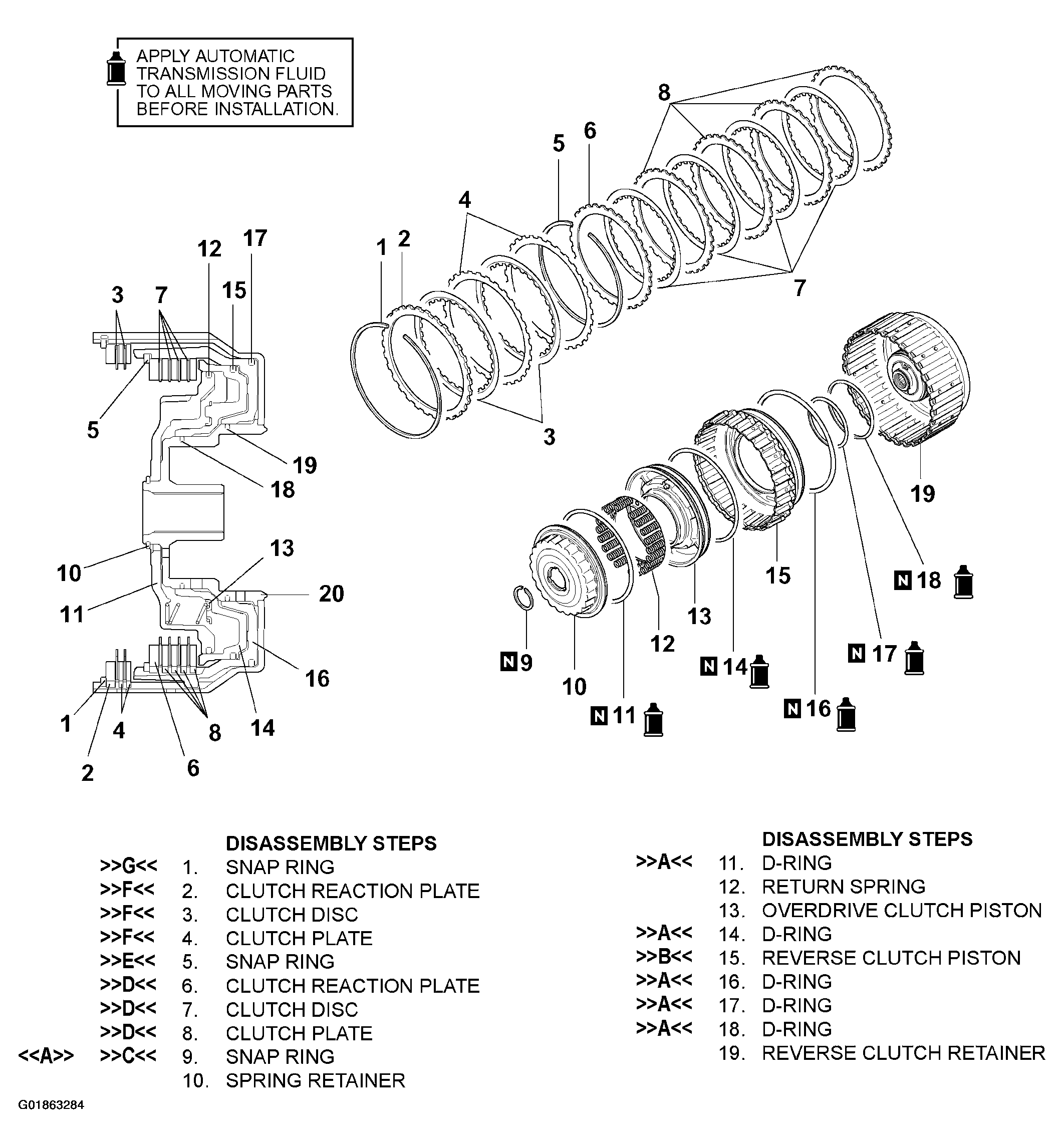

Fig 2: Exploded View Of Reverse And Overdrive Clutch
G01863284Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
