A/T Control Solenoid Valve Assembly Connector B-20 Connector End View

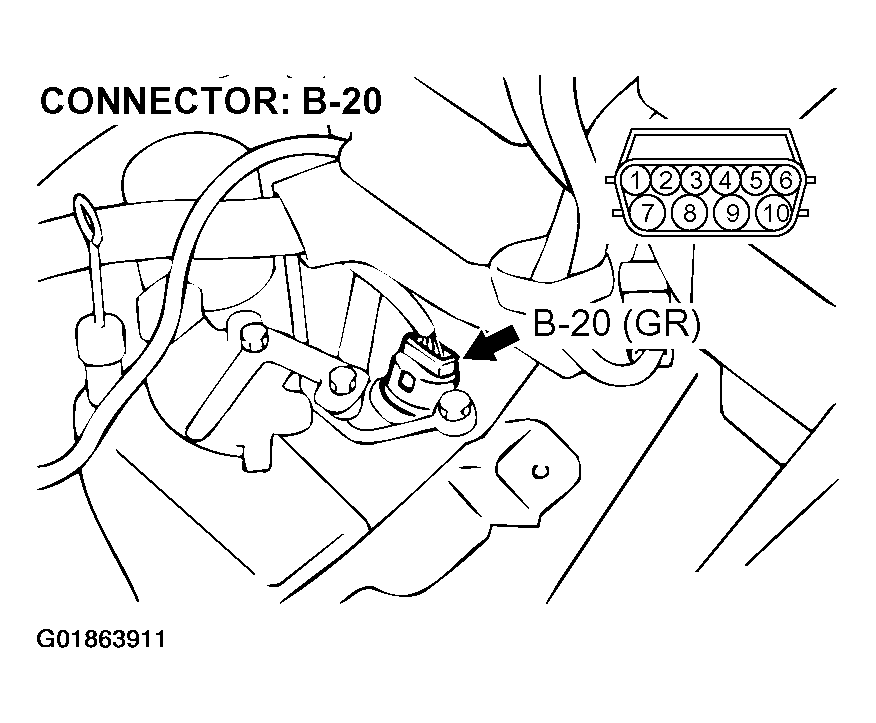

Fig 1: A/T Control Solenoid Valve Assembly Connector B-20 Connector End View
G01863911Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
