Removal And Installation: Notes

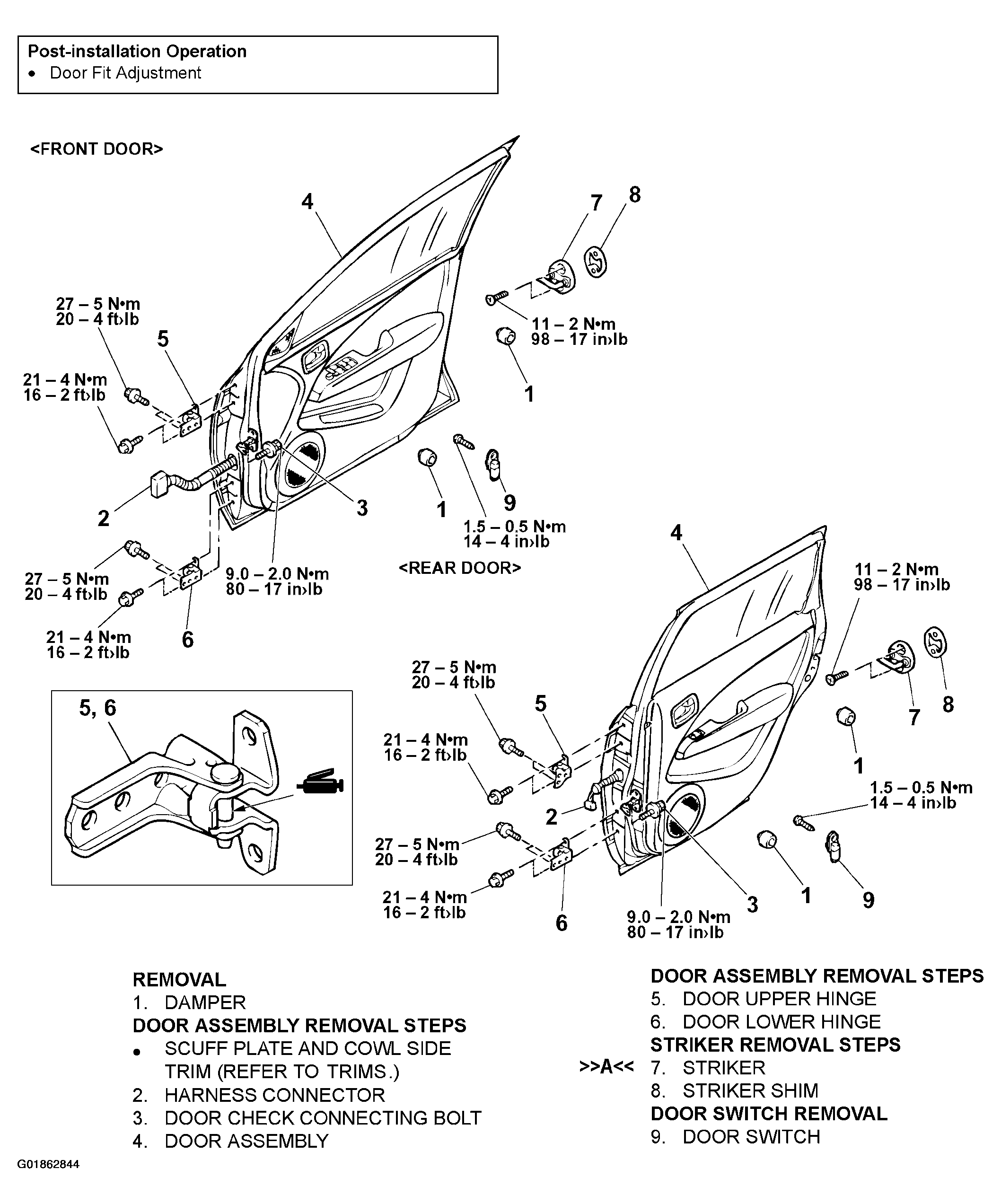

Fig 1: Identifying Door Assembly Components
G01862844Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
