Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.
    Fig 1: Checking Continuity Between Terminals Of Switch
    G01864718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

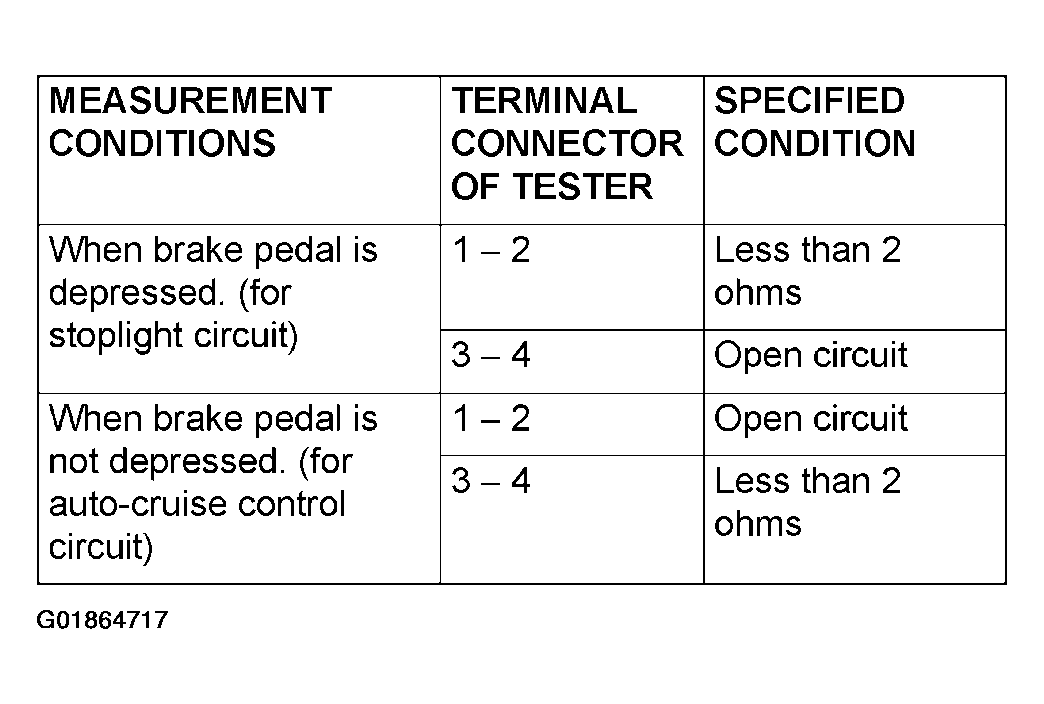

    Fig 2: Identifying Stoplight Switch Continuity
    G01864717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
