Data List Reference Table

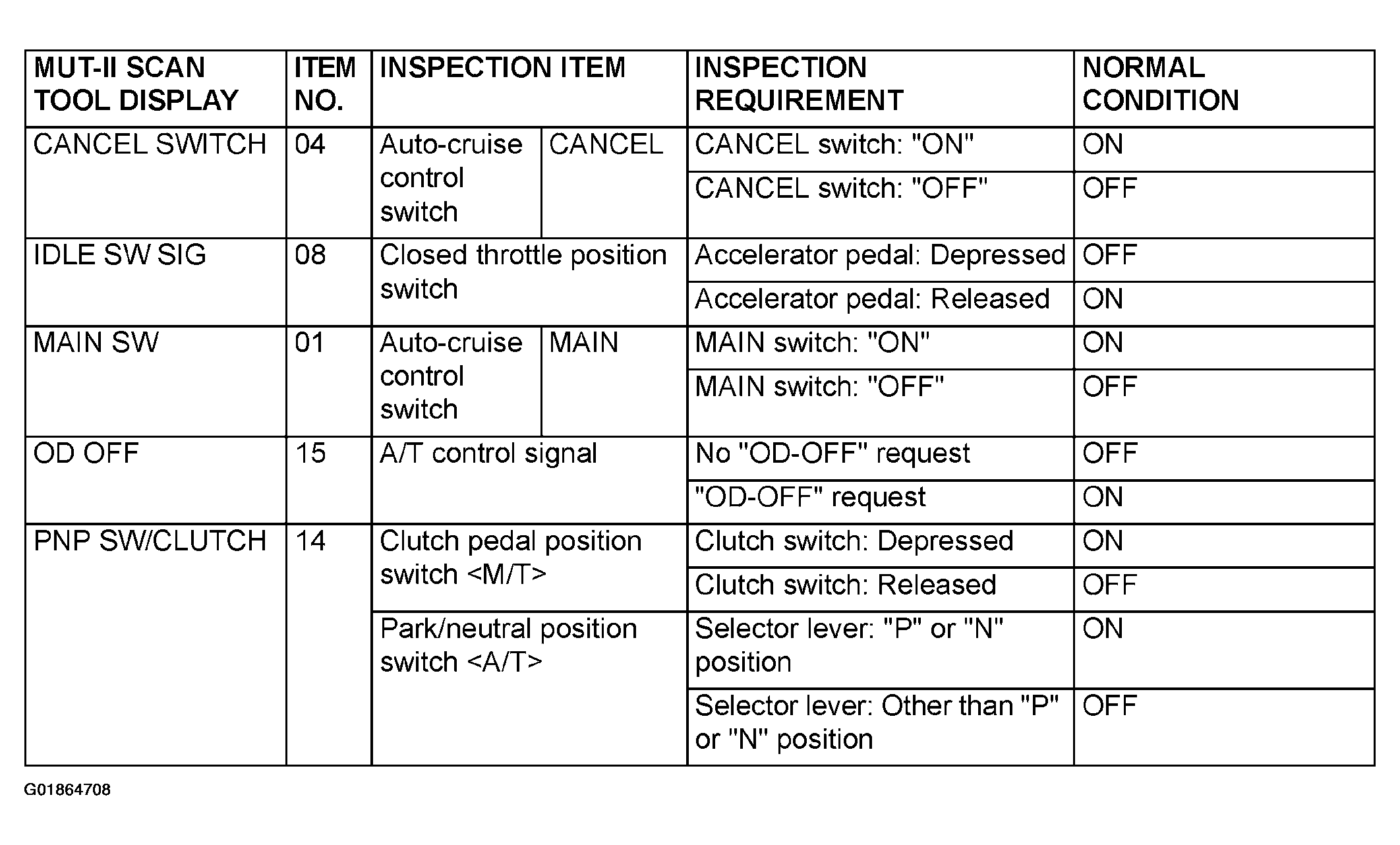

Fig 1: Data List Reference Table (1 Of 2)
G01864708Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

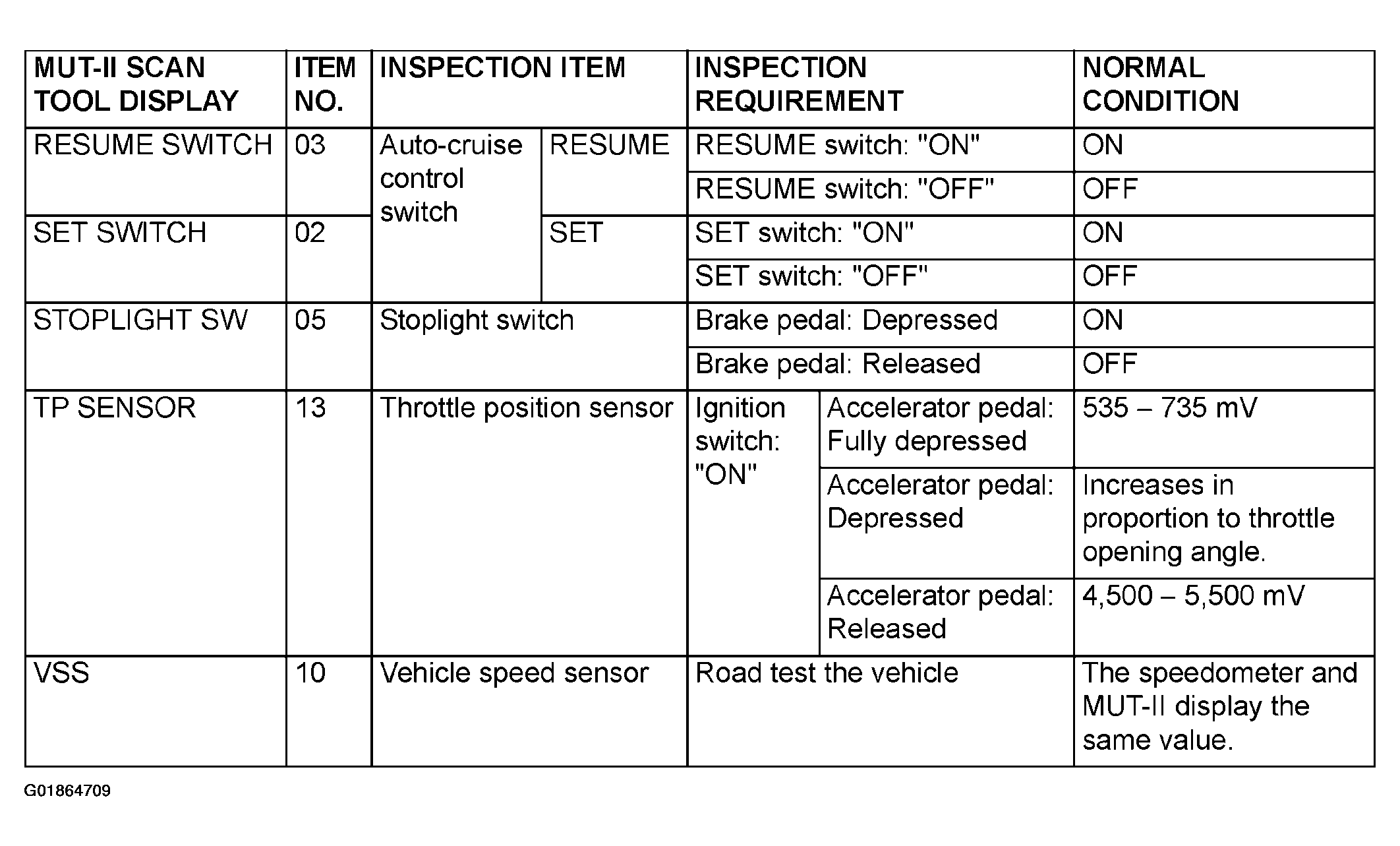

Fig 2: Data List Reference Table (2 Of 2)
G01864709Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
