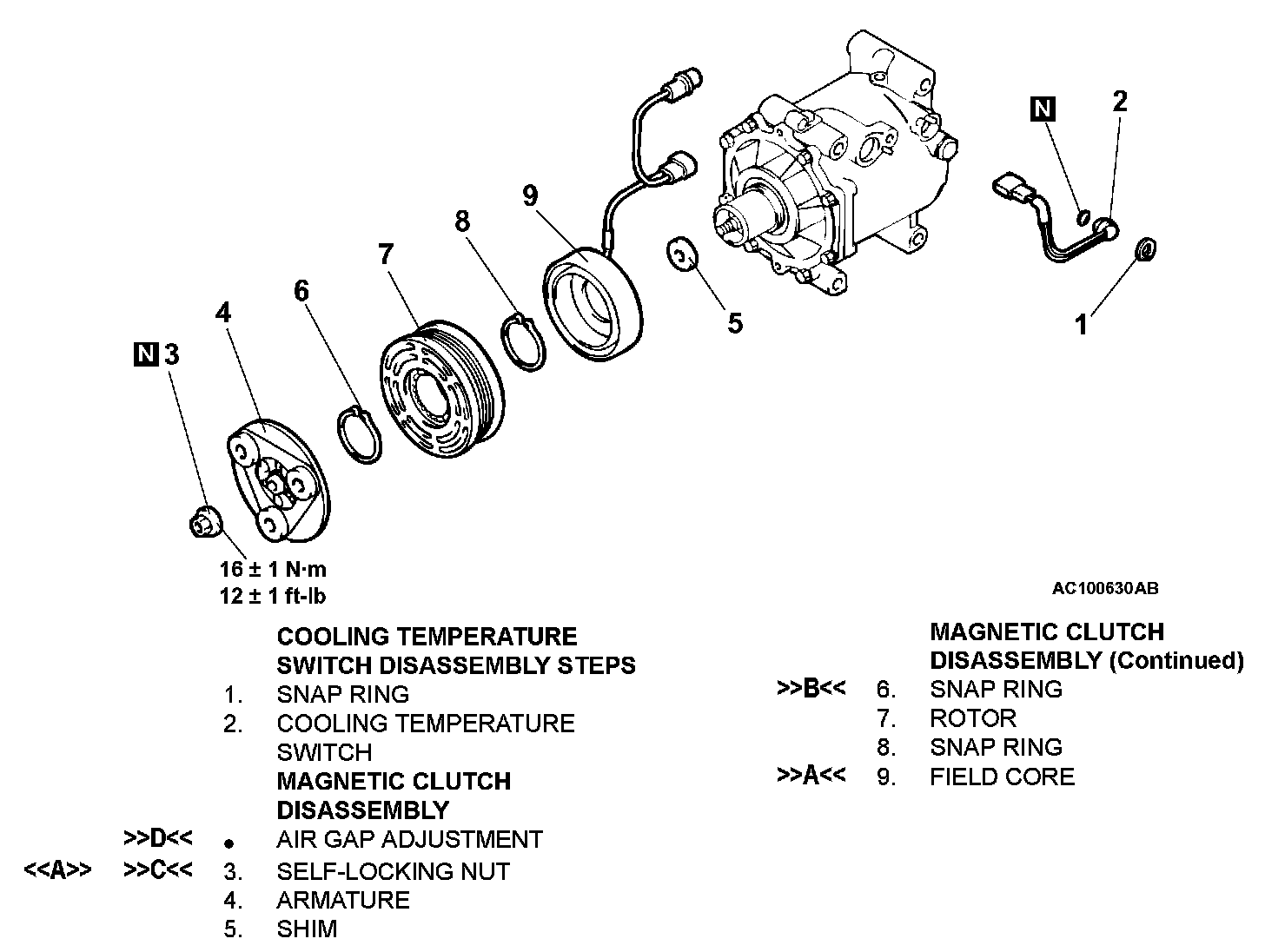

Compressor Clutch


Compressor Clutch:






ITEM STANDARD VALUE
Air gap (magnetic clutch) mm (in) 0.3 - 0.5 (0.012 - 0.020)
