Transfer-Ecu Check

  1. Remove the indicator panel and the floor console front panel. (Refer to FLOOR CONSOLE ASSEMBLY .

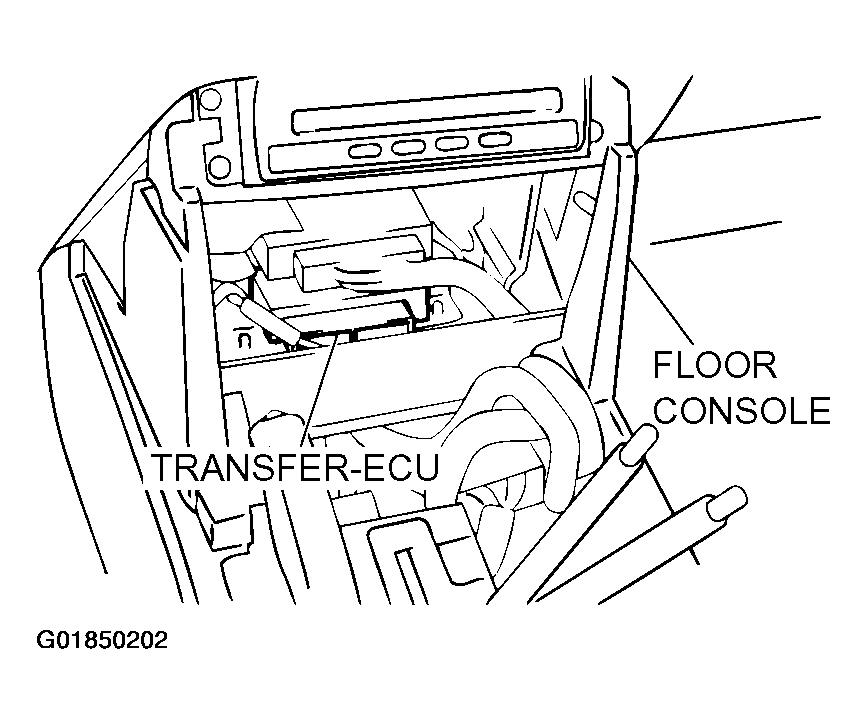

    Fig 1: Removing Floor Console
    G01850202Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Measure the transfer-ECU terminal voltage. (Refer to TRANSFER-ECU TERMINAL VOLTAGE REFERENCE CHART .
