Removal And Installation: Notes

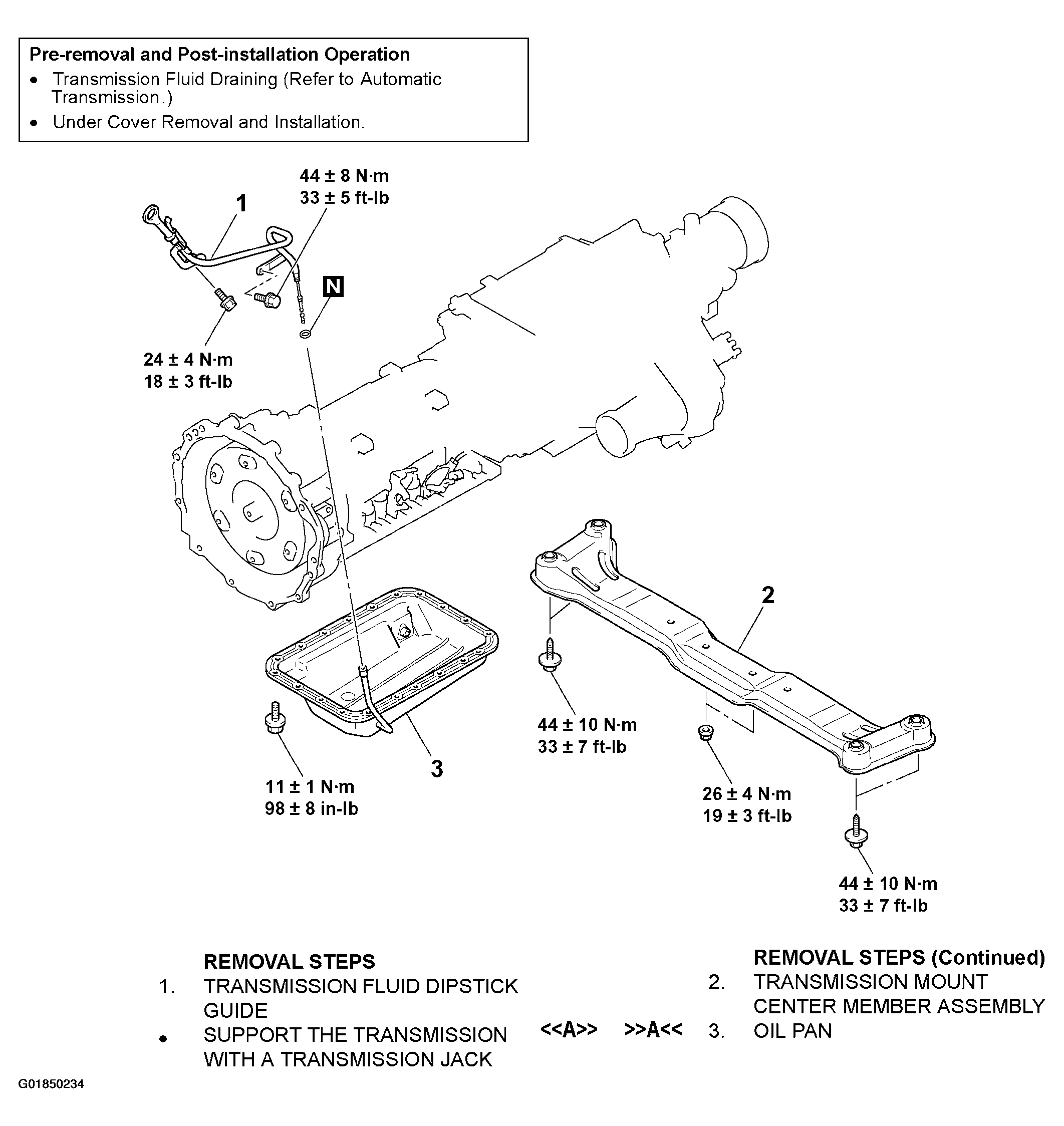

Fig 1: Removing & Installing Oil Pan
G01850234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

  1. MD998727: Oil Pan Remover
