Data List Reference Table

Fig 1: Data List Reference Table (1 Of 5)
G01850285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

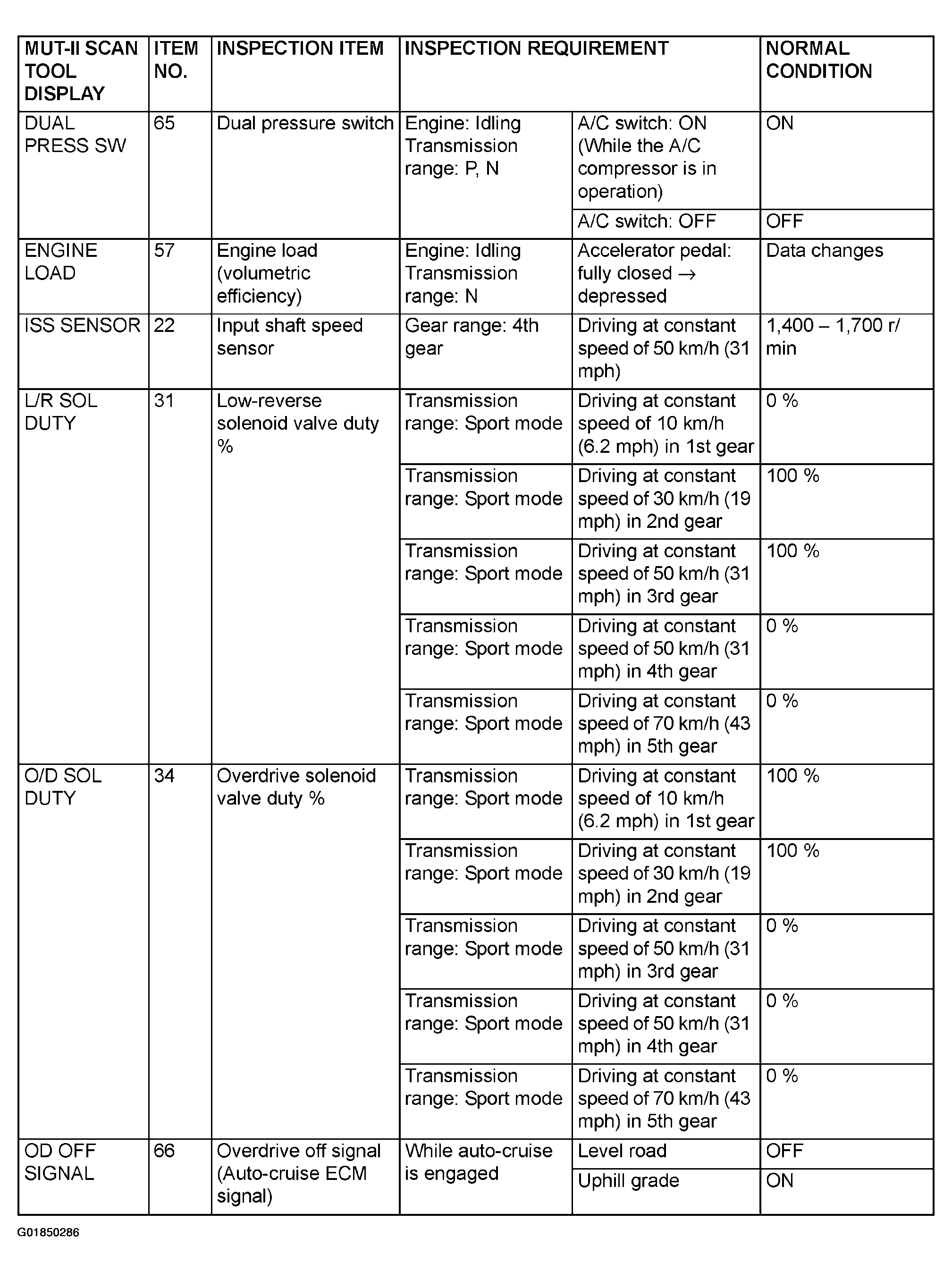

Fig 2: Data List Reference Table (2 Of 5)
G01850286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

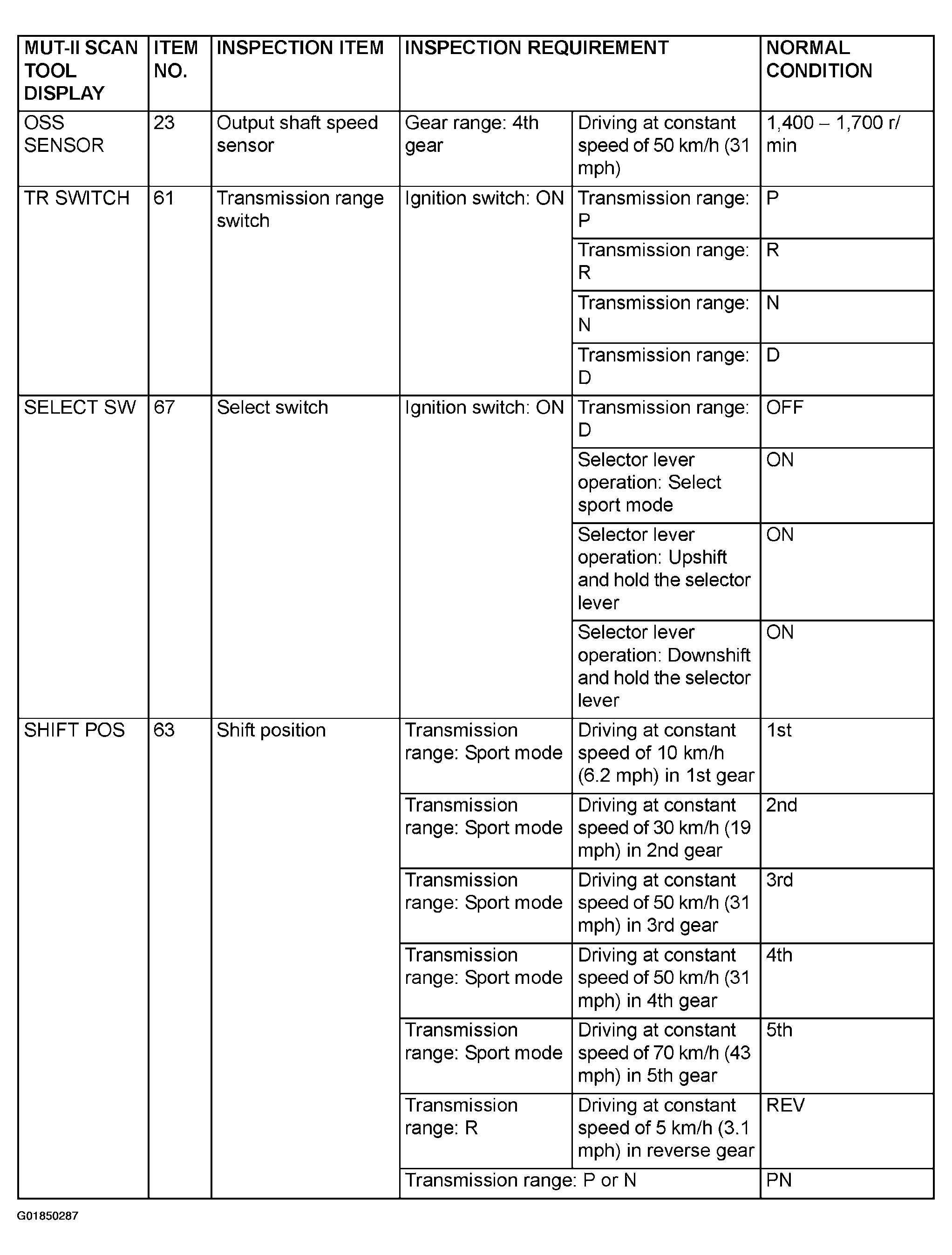

Fig 3: Data List Reference Table (3 Of 5)
G01850287Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

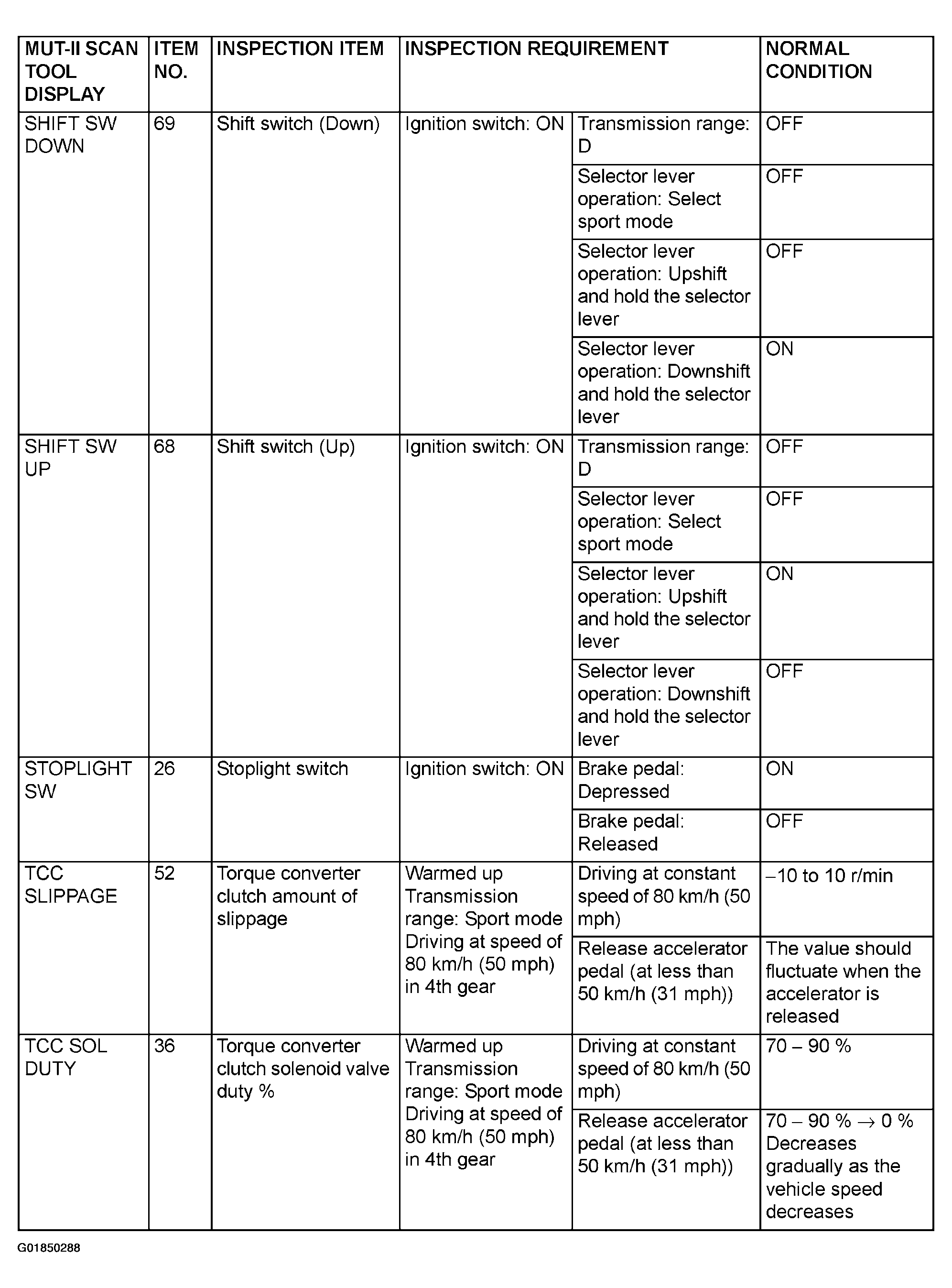

Fig 4: Data List Reference Table (4 Of 5)
G01850288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

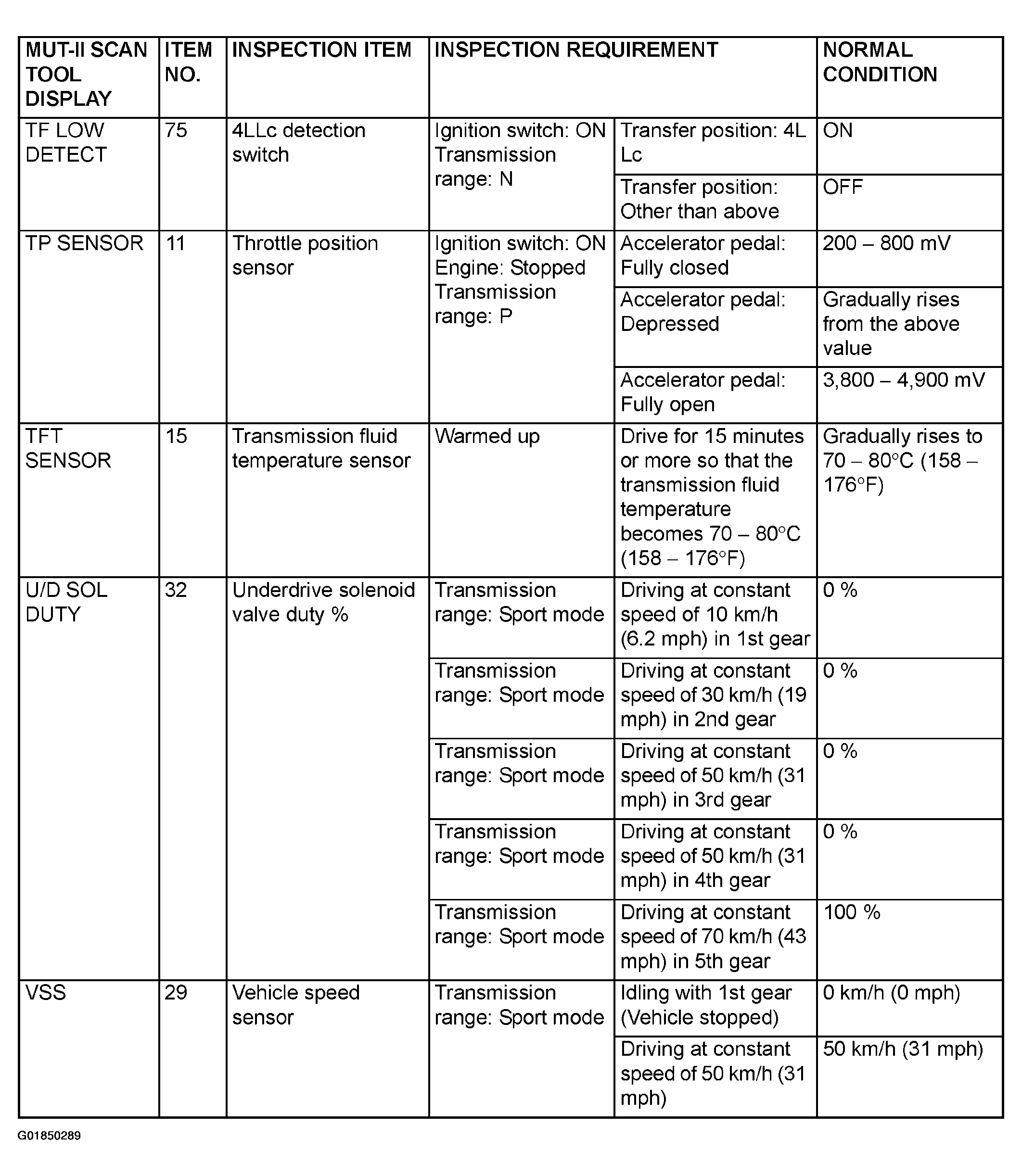

Fig 5: Data List Reference Table (5 Of 5)
G01850289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
