Actuator Test Specifications

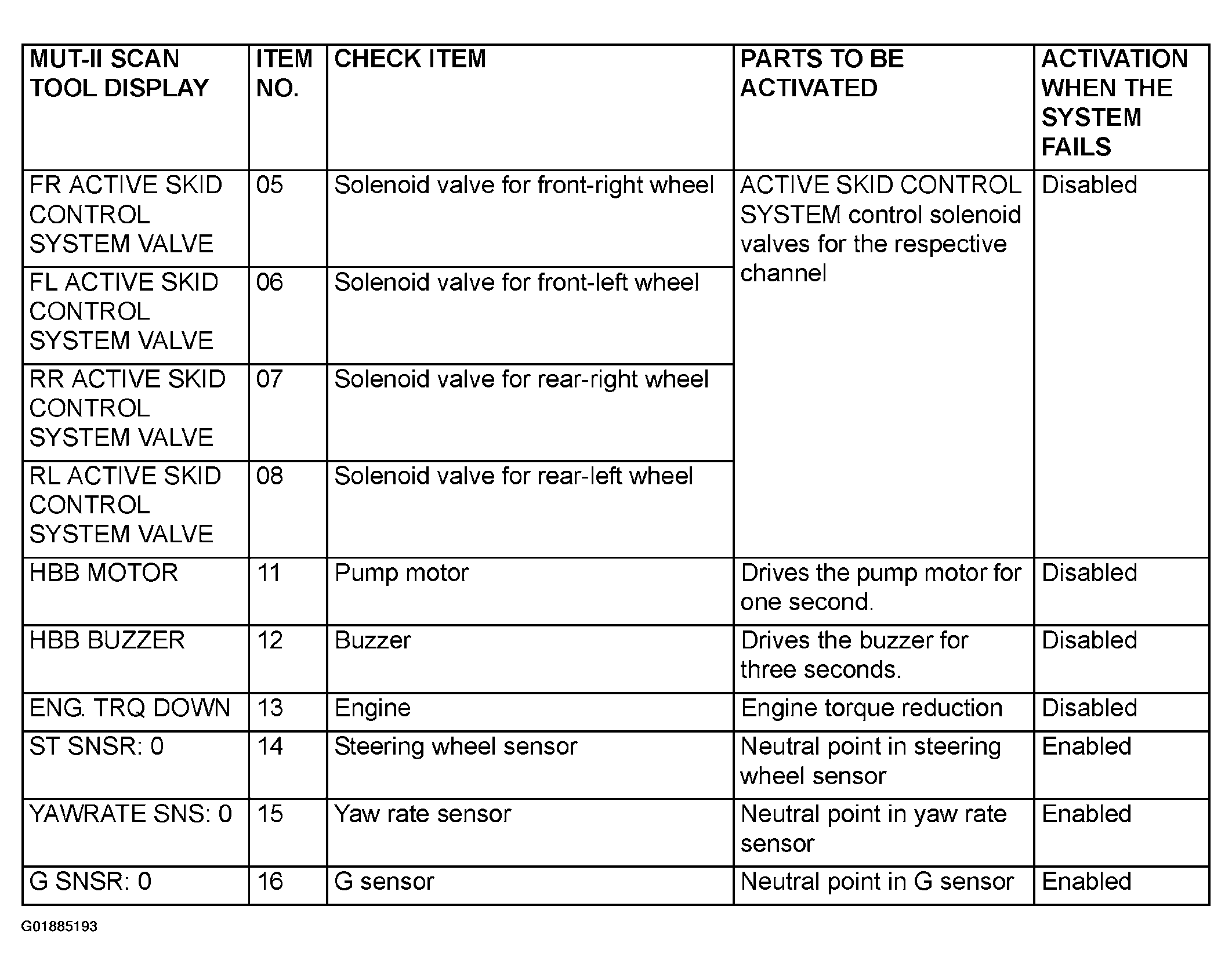

Fig 1: Actuator Test Specifications Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

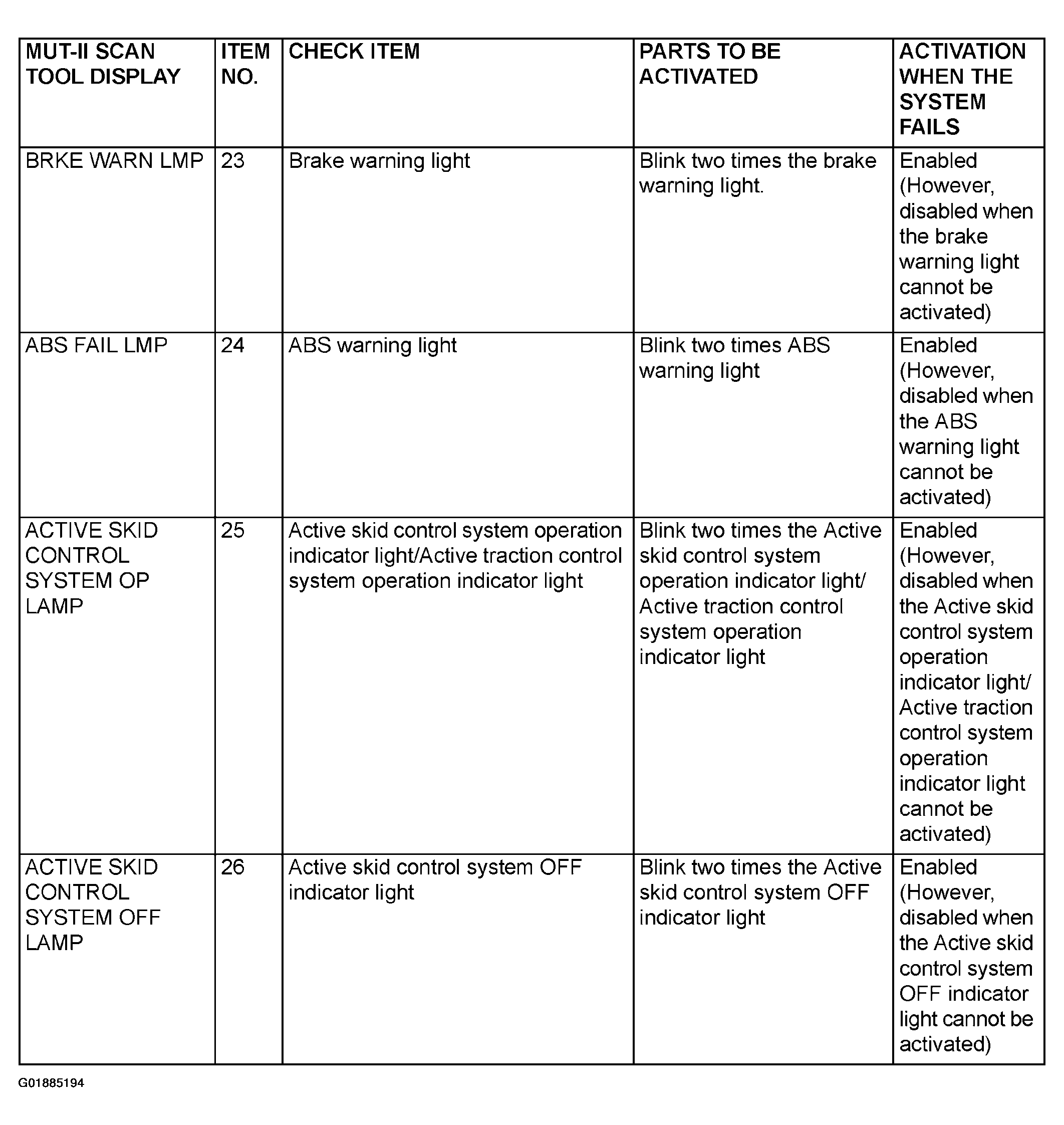

Fig 2: Actuator Test Specifications Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ITEM No. 05 - 08 DRIVE PATTERN

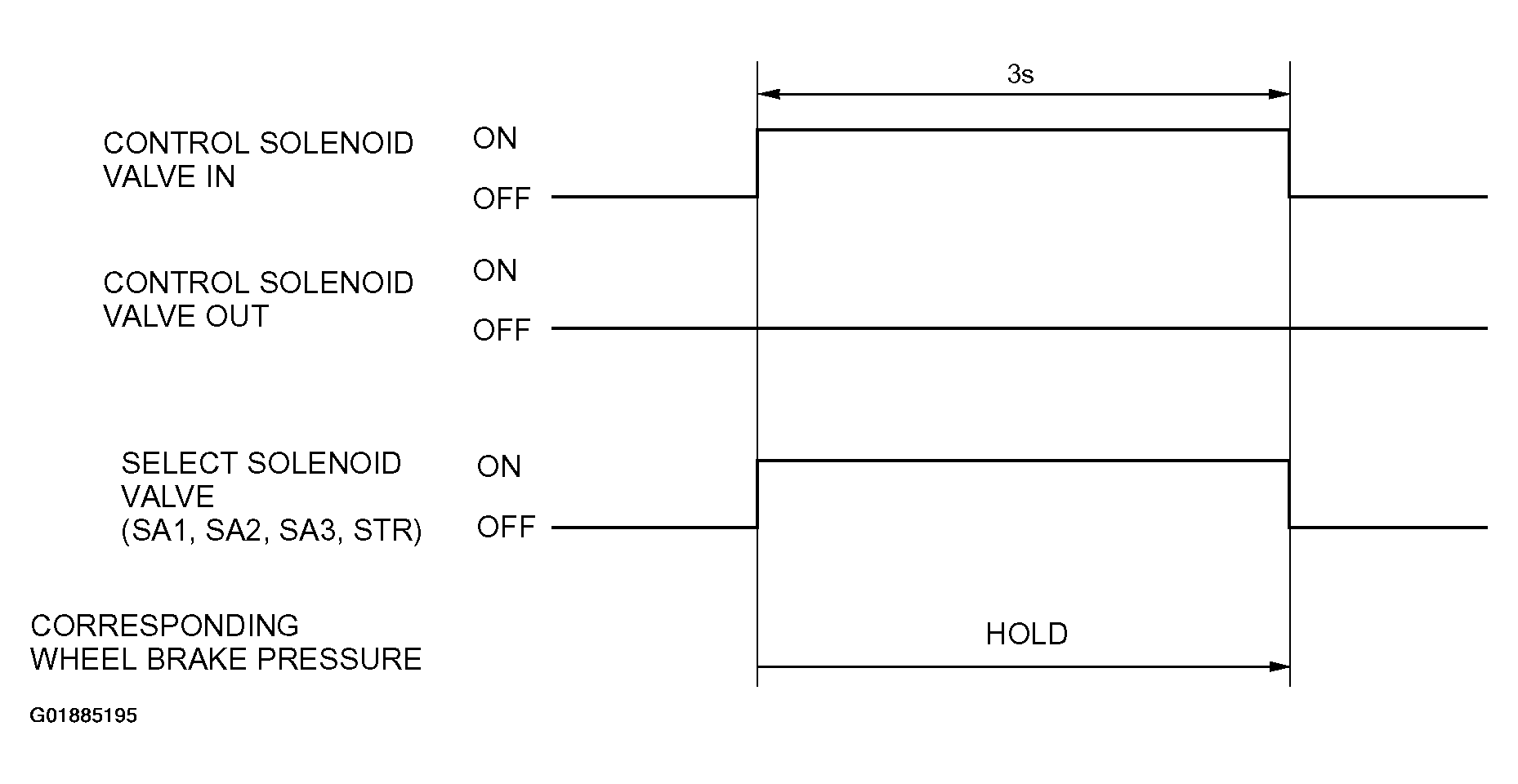

Fig 3: Drive Pattern (Item No. 05 - 08)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
