Construction Diagram: Notes

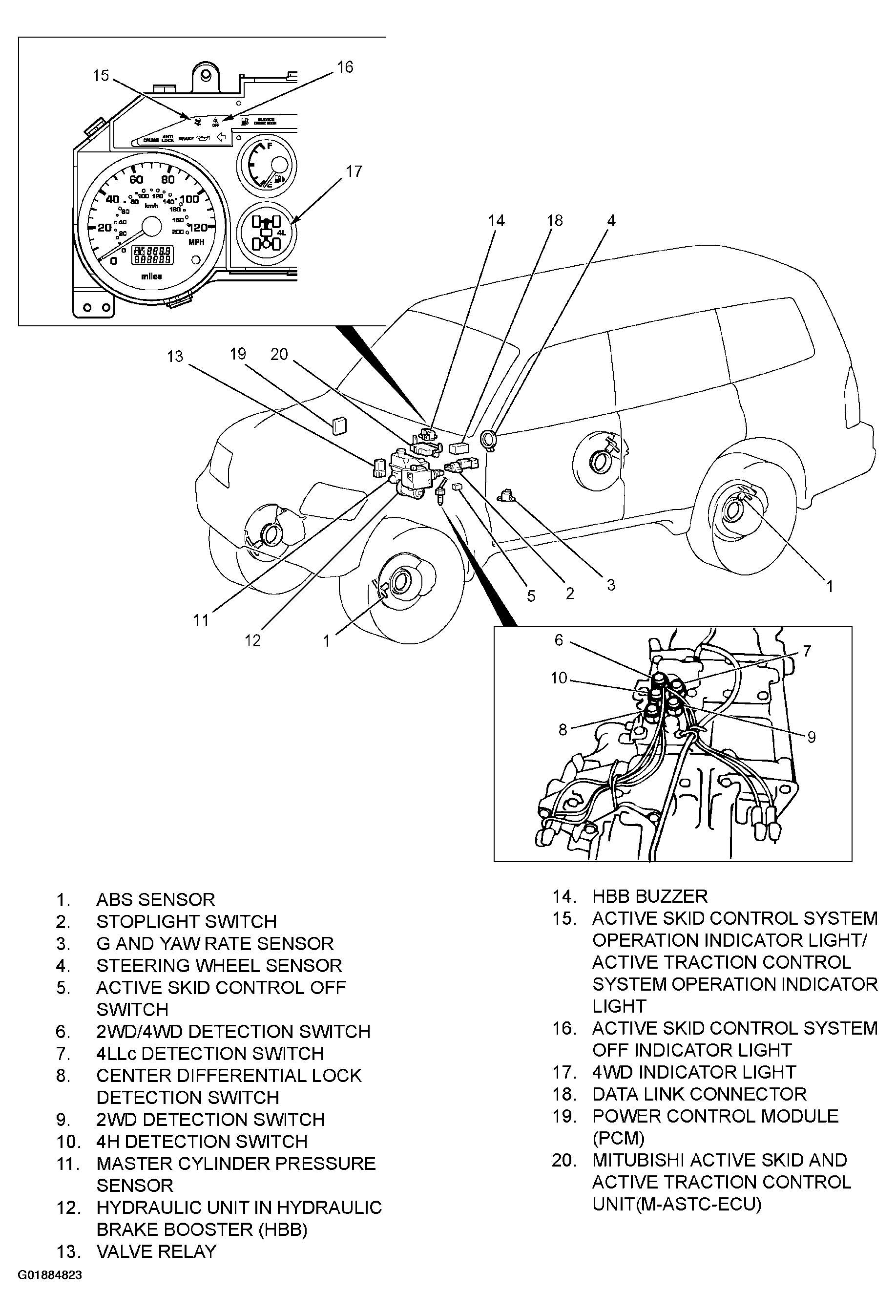

Fig 1: Traction Control System Construction Diagram
G01884823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
