Removal And Installation: Notes

CAUTION: Do not drop or shock the G and yaw rate sensor.

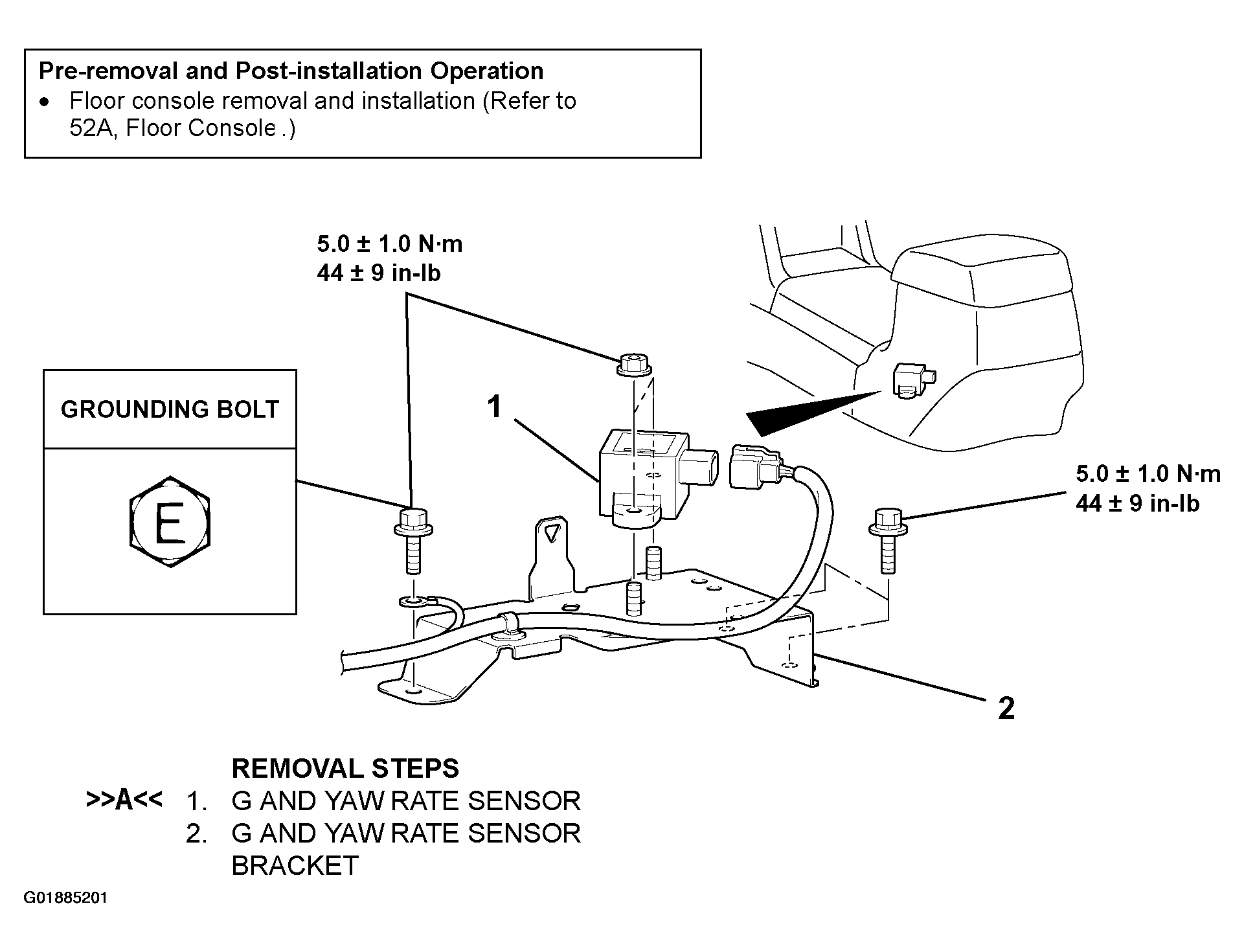

Fig 1: Removing/Installing G & YAW Rate Sensor
G01885201Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
