Fail-Safe Function Reference Table

Part 1:




Part 2:

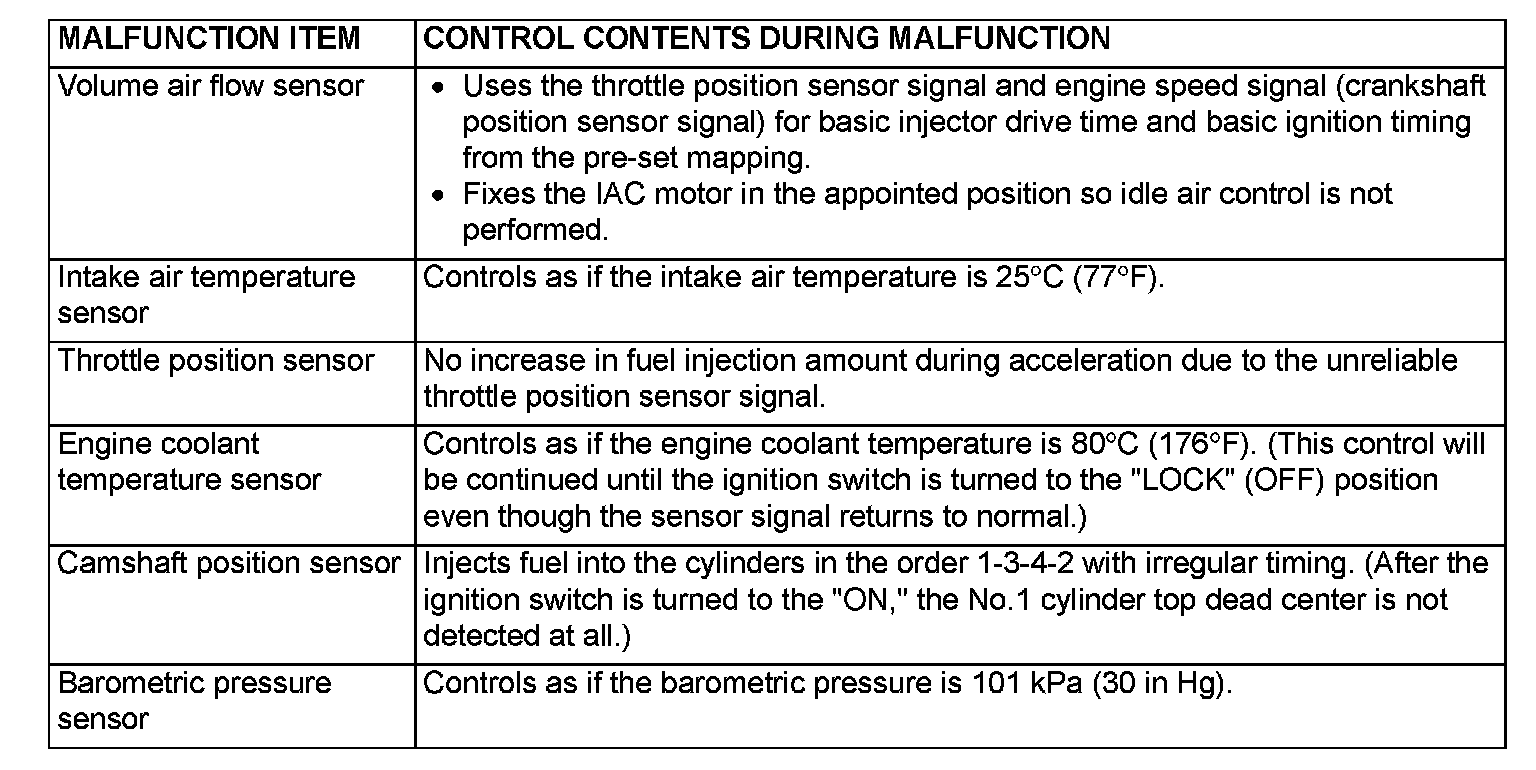

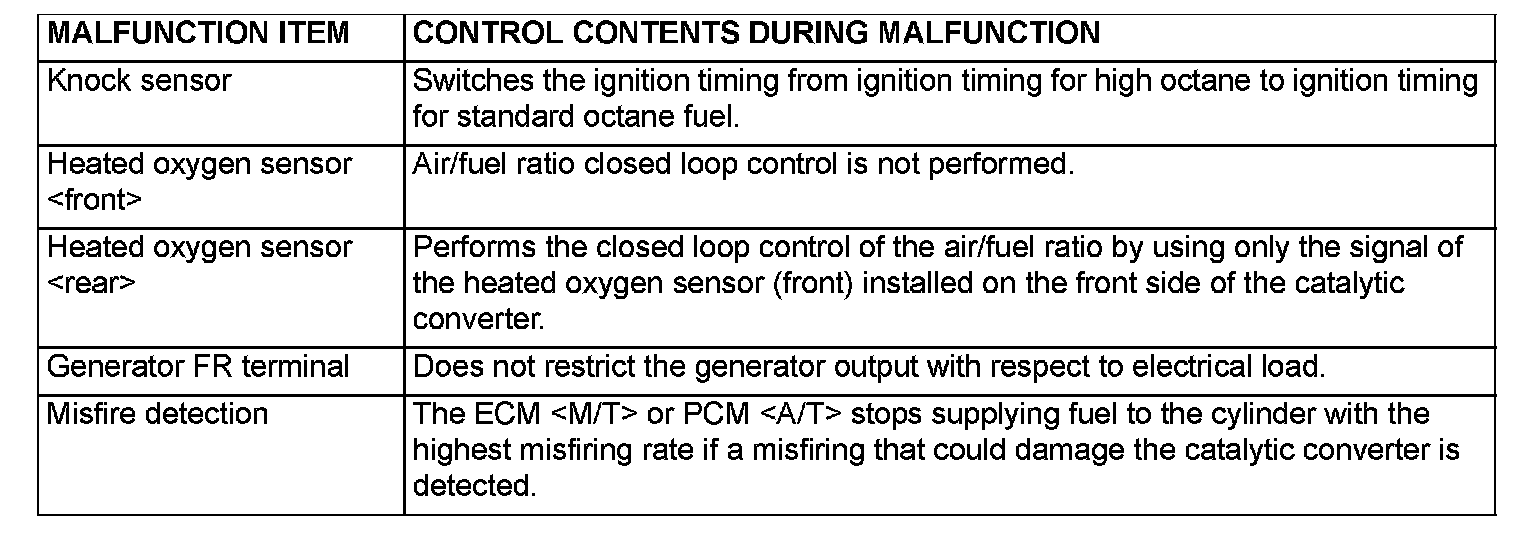

FAIL-SAFE FUNCTION REFERENCE TABLE
When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the given defaults.
