Pulse Check

WARNING: This page is about a different variant/trim than selected.
  1. The input signals (signals other than SWS communication line signals), which are compatible with the SWS monitor by using the scan tool or voltmeter, can be confirmed by the Pulse Check.
    2. NOTE: If a problem is found the during Pulse Check, see INPUT SIGNAL CHECK .
  2. Use the scan tool or voltmeter to check the following input signals.

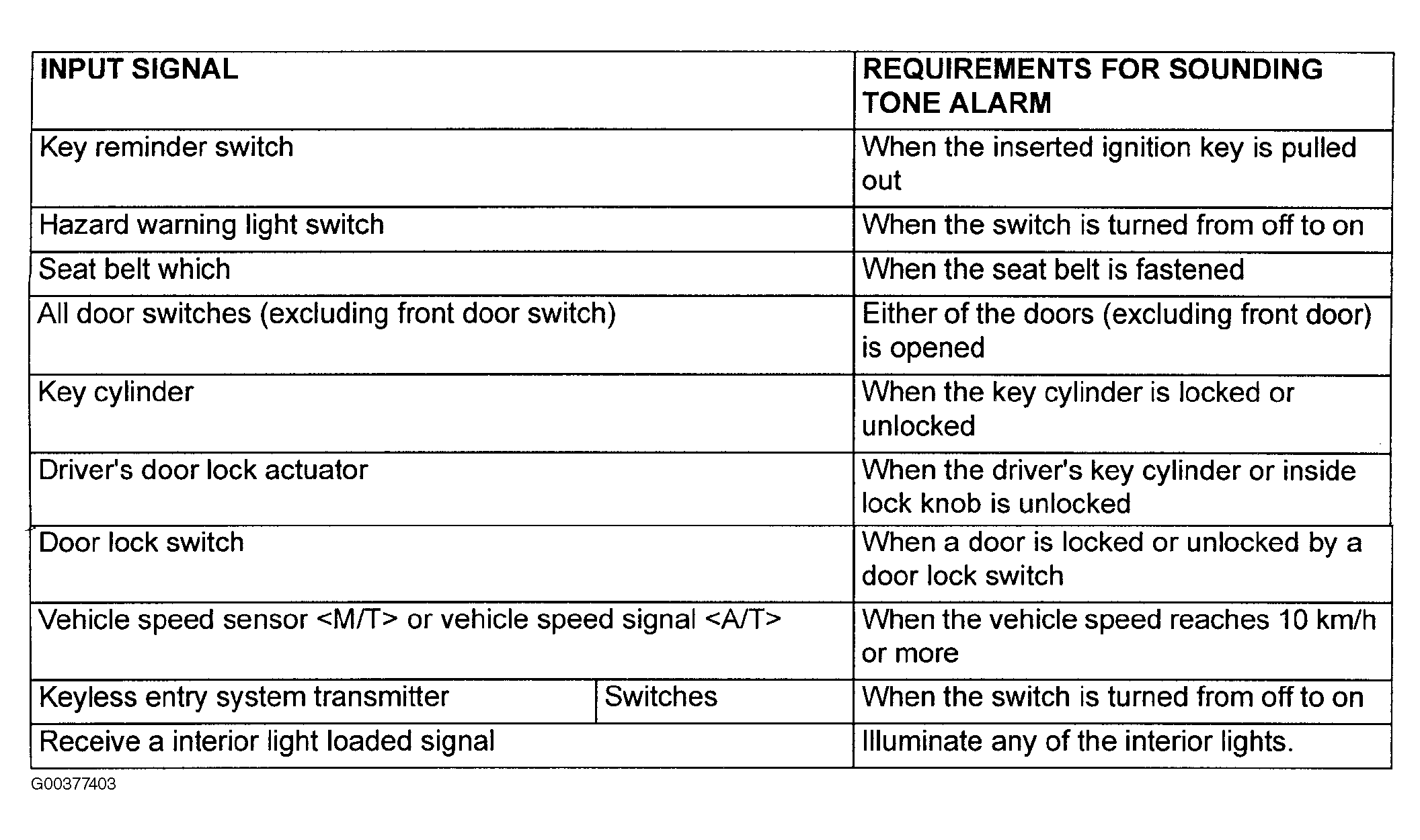

Fig 1: Identifying Pulse Check Switches & Conditions
G00377403Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
