TILT AND TELESCOPIC STEERING SYSTEM - TROUBLESHOOTING

Control ECU	Master control system	Sub control system
Tilt and telescopic steering ECU	Tilt and telescopic steering system	Seat position memory system

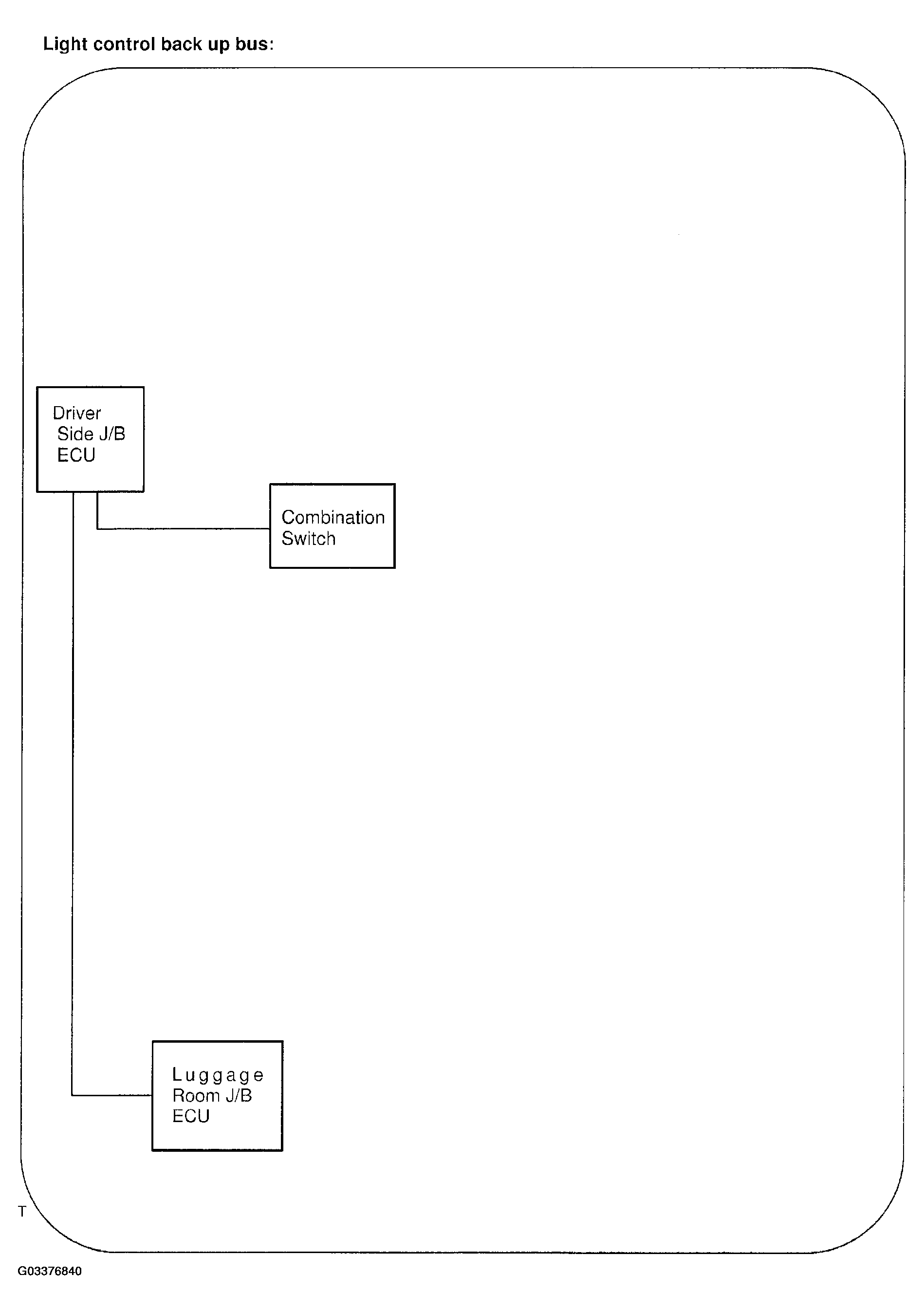

Fig 1: Identifying Light Control Back Up Bus Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

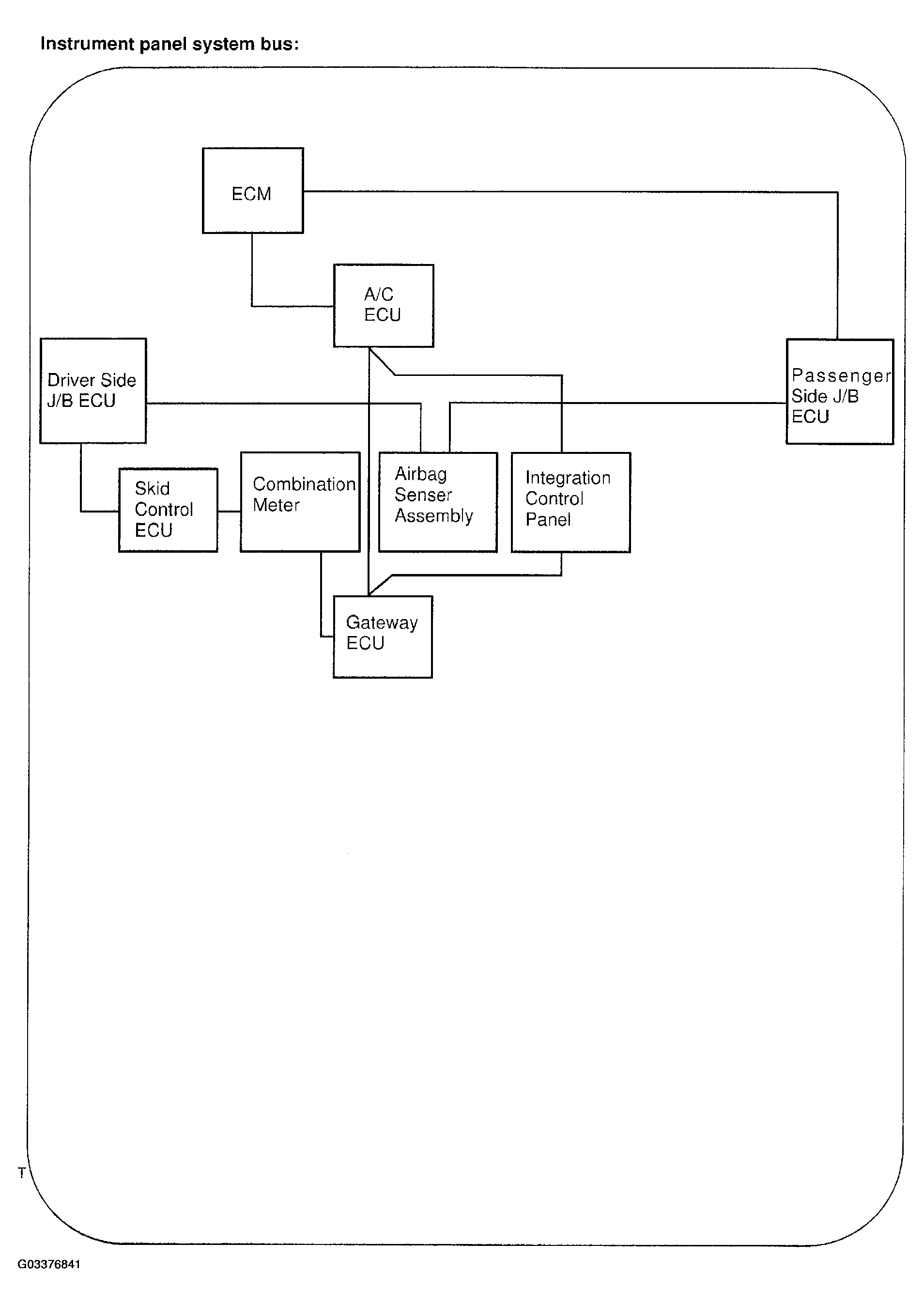

Fig 2: Identifying Instrument Panel System Bus Circuit Diagram

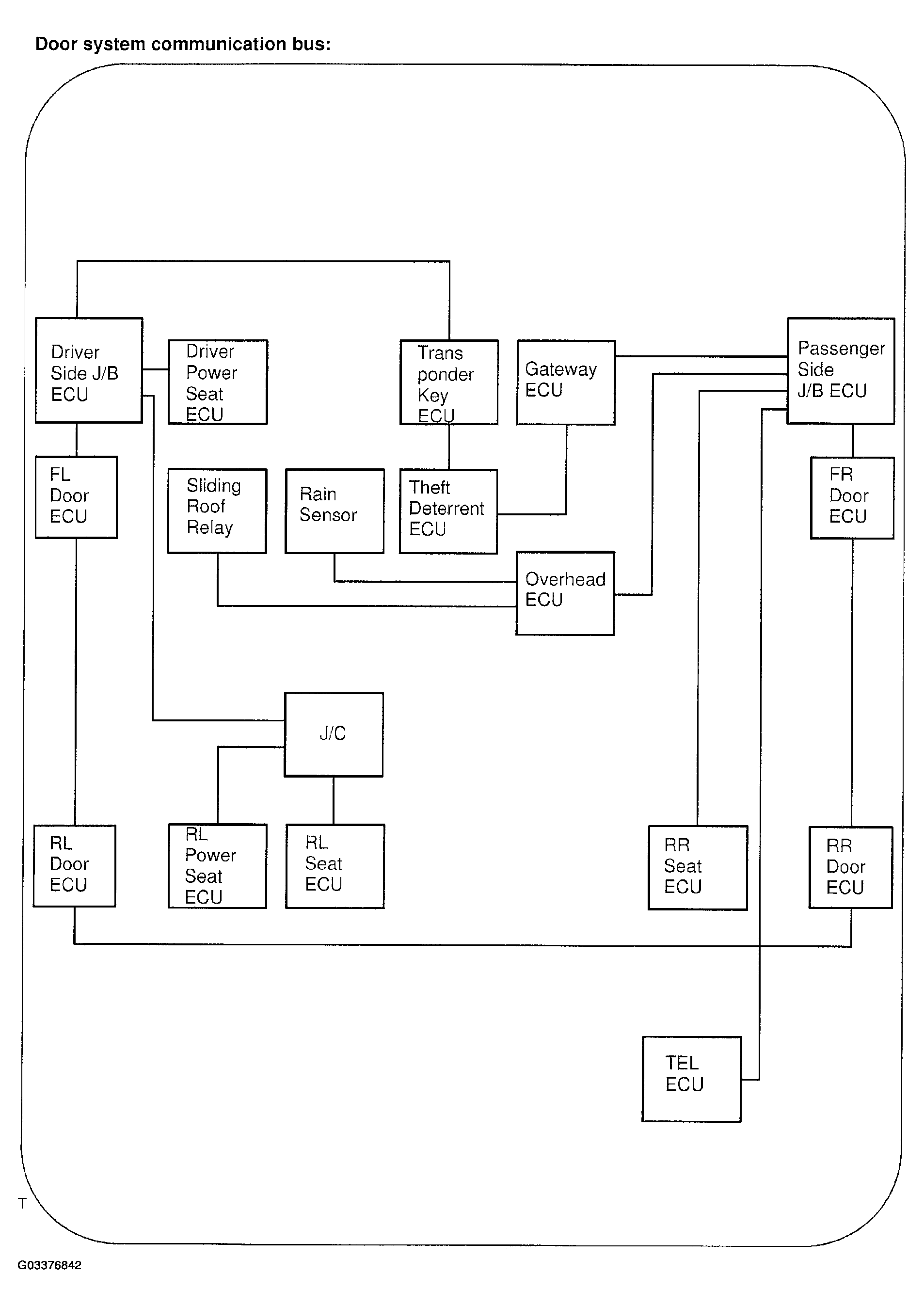

Fig 3: Identifying Door System Communication Bus Circuit Diagram
