Mode 6 - 1997-2012 MITSUBISHI
>>
2008 Eclipse
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
2008 Eclipse

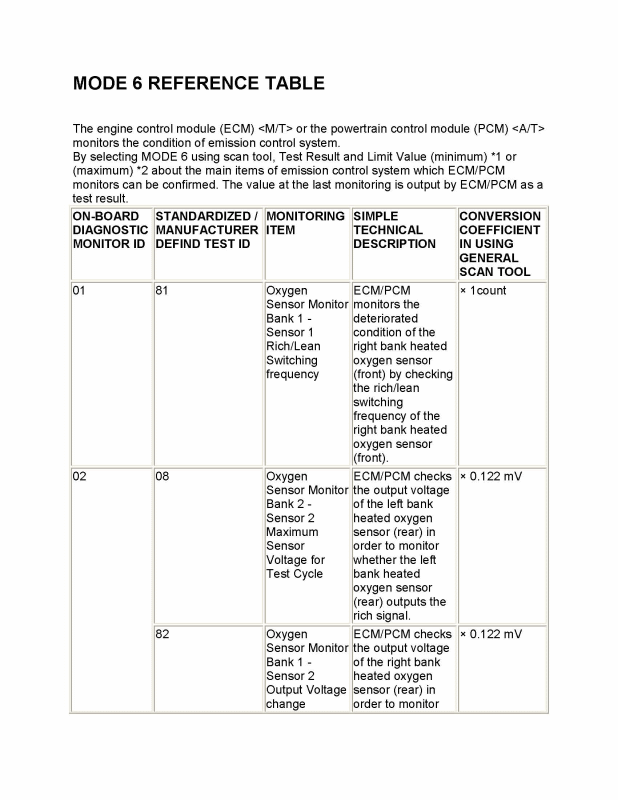

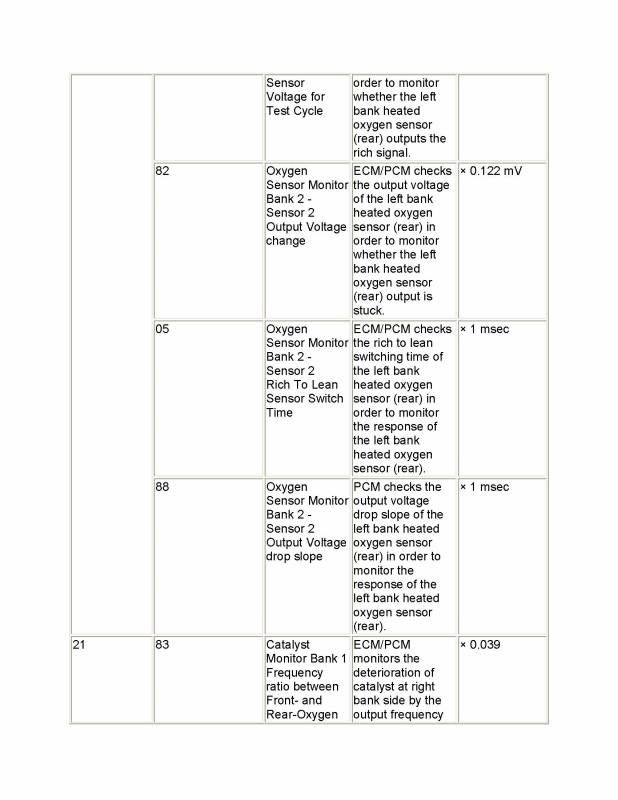

Fig 1: Mode $06 Data For 2008 Eclipse (1 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

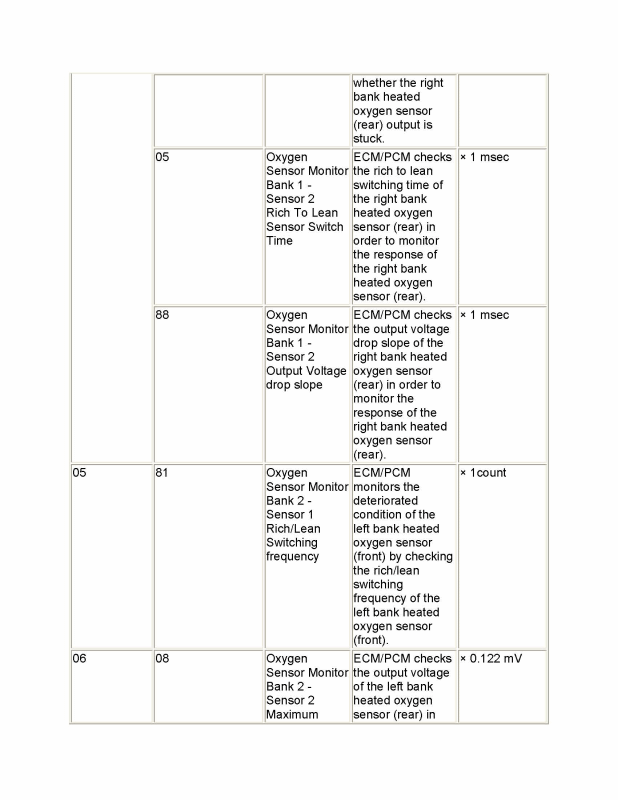

Fig 2: Mode $06 Data For 2008 Eclipse (2 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

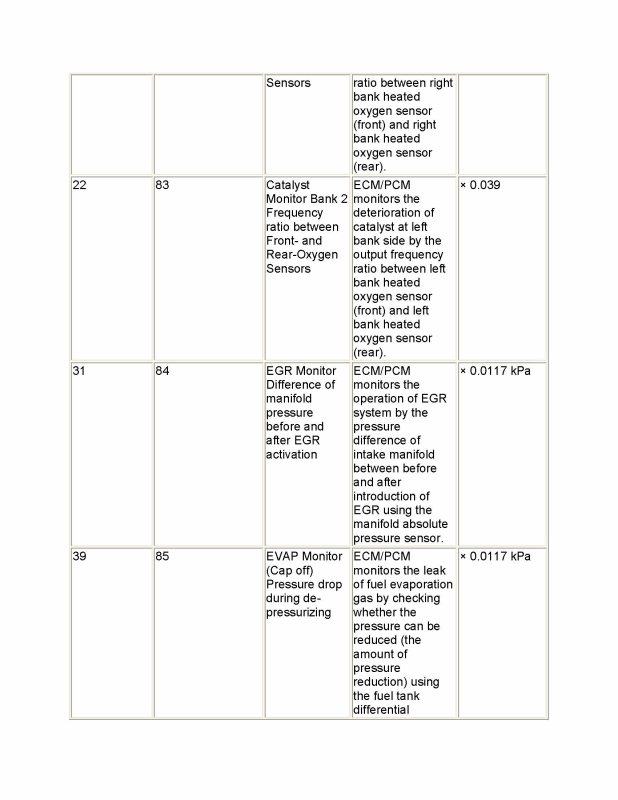

Fig 3: Mode $06 Data For 2008 Eclipse (3 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Mode $06 Data For 2008 Eclipse (4 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

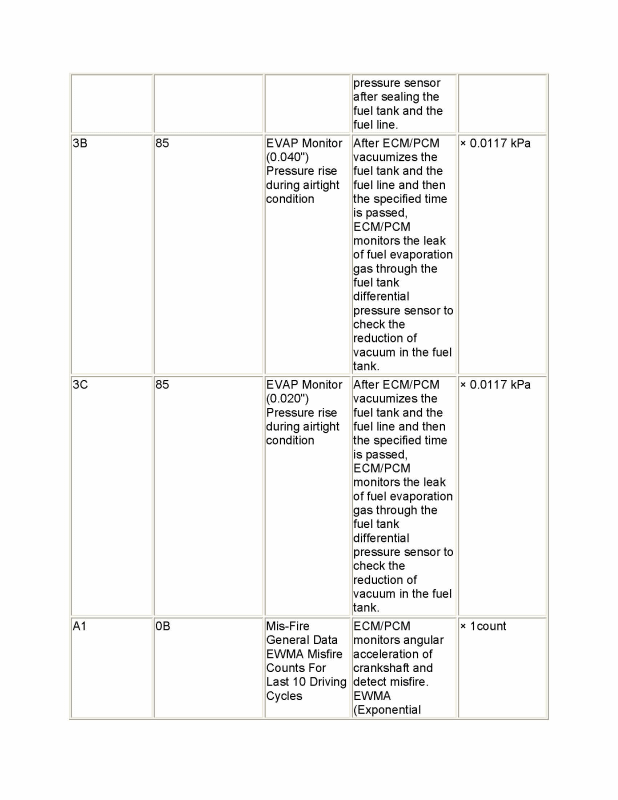

Fig 5: Mode $06 Data For 2008 Eclipse (5 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

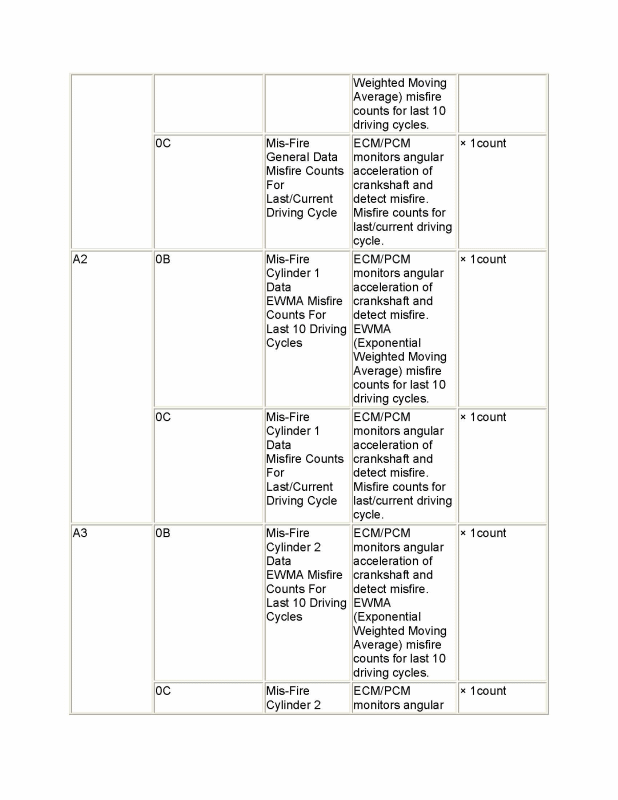

Fig 6: Mode $06 Data For 2008 Eclipse (6 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

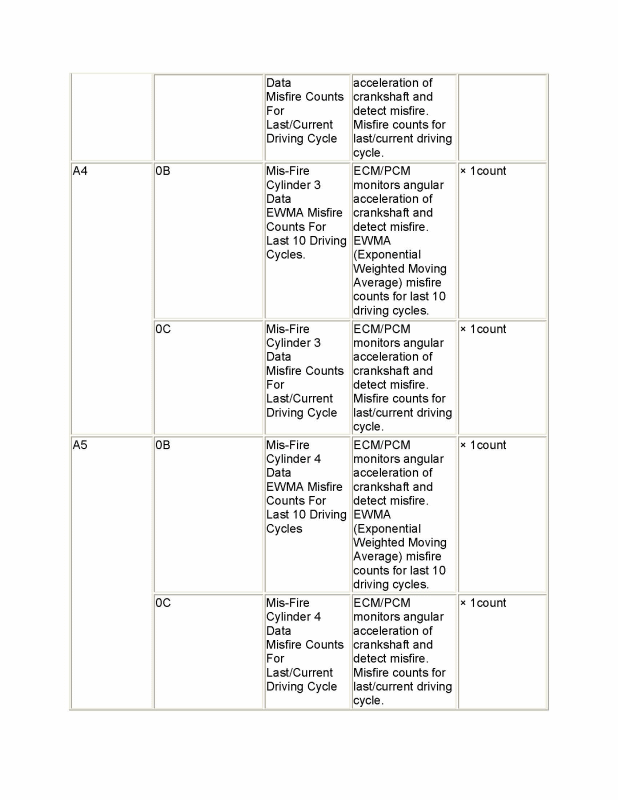

Fig 7: Mode $06 Data For 2008 Eclipse (7 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

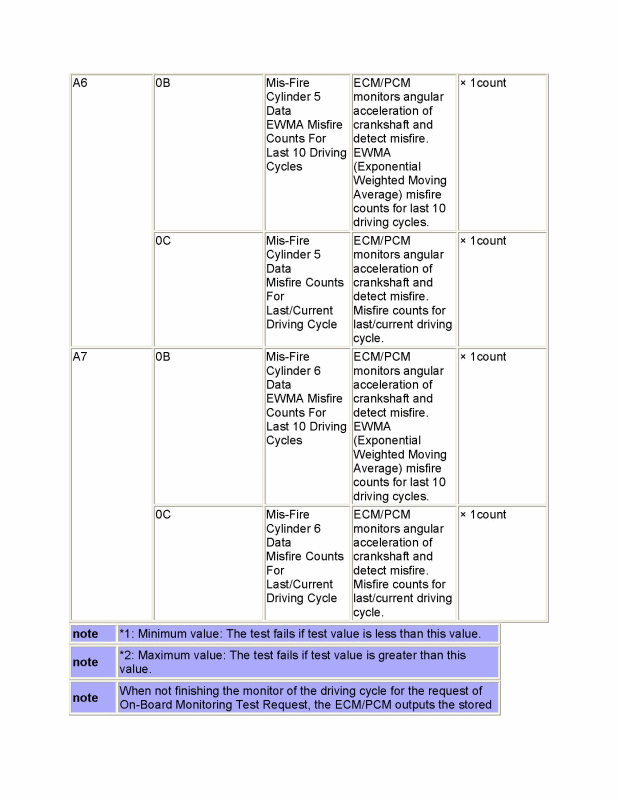

Fig 8: Mode $06 Data For 2008 Eclipse (8 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

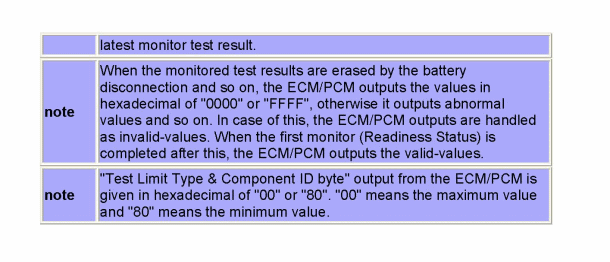

Fig 9: Mode $06 Data For 2008 Eclipse (9 Of 9)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
