Home >> Mitsubishi >> 2003 >> Lancer Evolution >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> On-Vehicle Service - Evolution >> Oil Pan >> Removal And Installation >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation: Notes

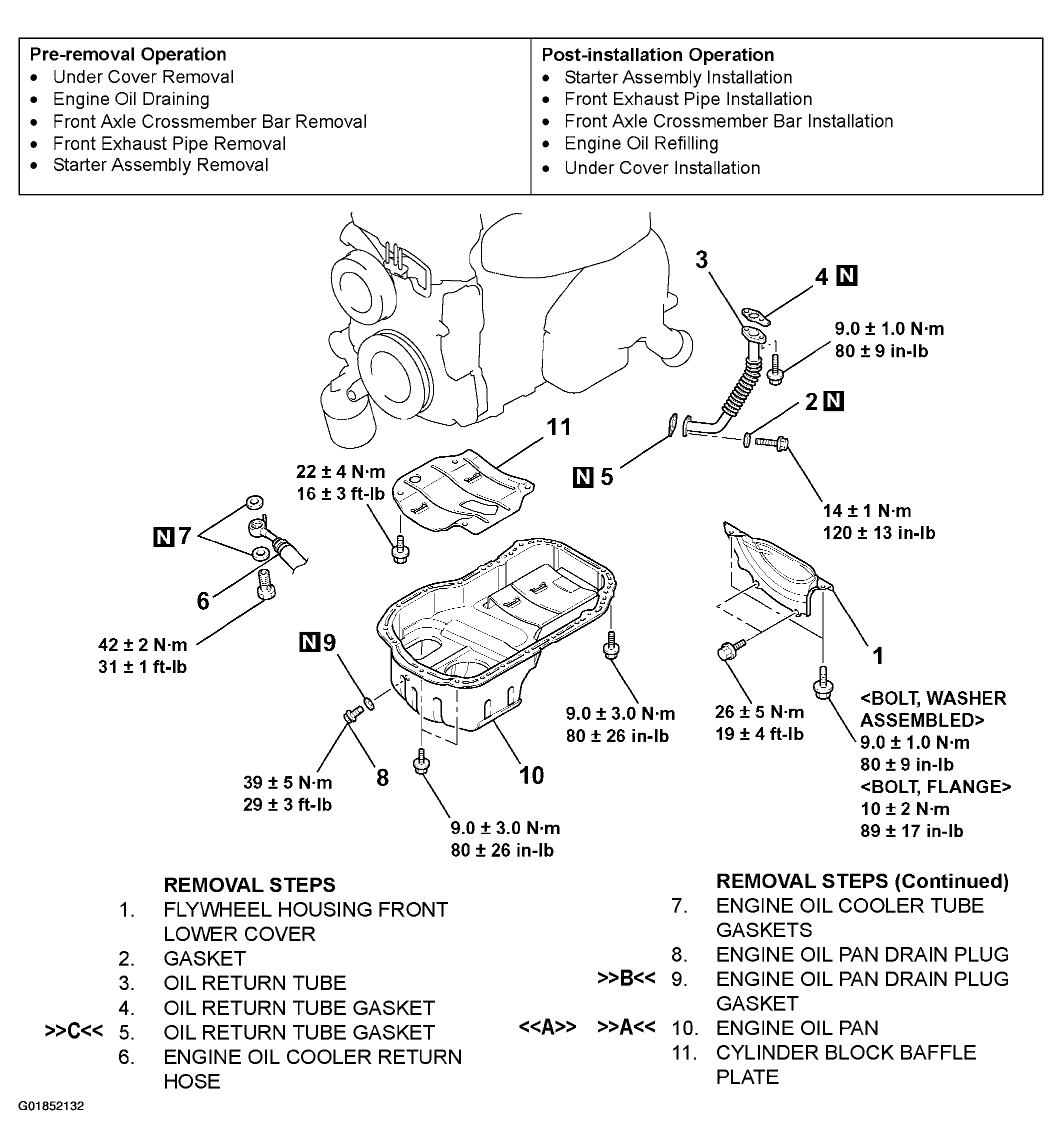

Fig 1: Exploded View Of Oil Pan Components With Torque Specifications
G01852132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
