Removal And Installation: Notes

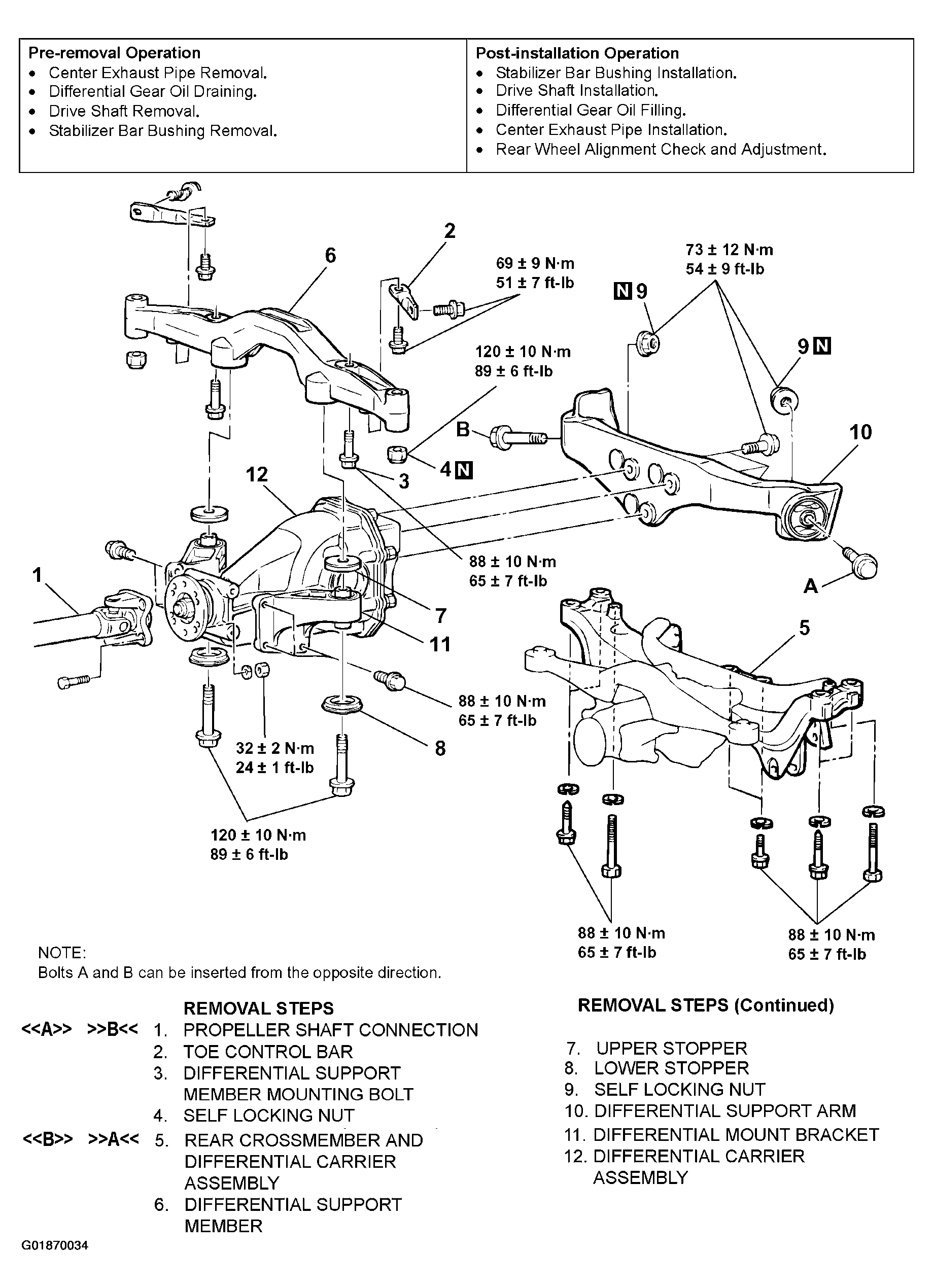

Fig 1: Identifying Removal Steps Of Differential Carrier Assembly
G01870034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
