Check At Abs-Ecu

Use the following steps to remove the connector cover of the ABS-ECU and then measure the terminal voltage.

  1. Move the lock lever of the ABS-ECU connector as shown in the illustration, and then disconnect the ABS-ECU connector.

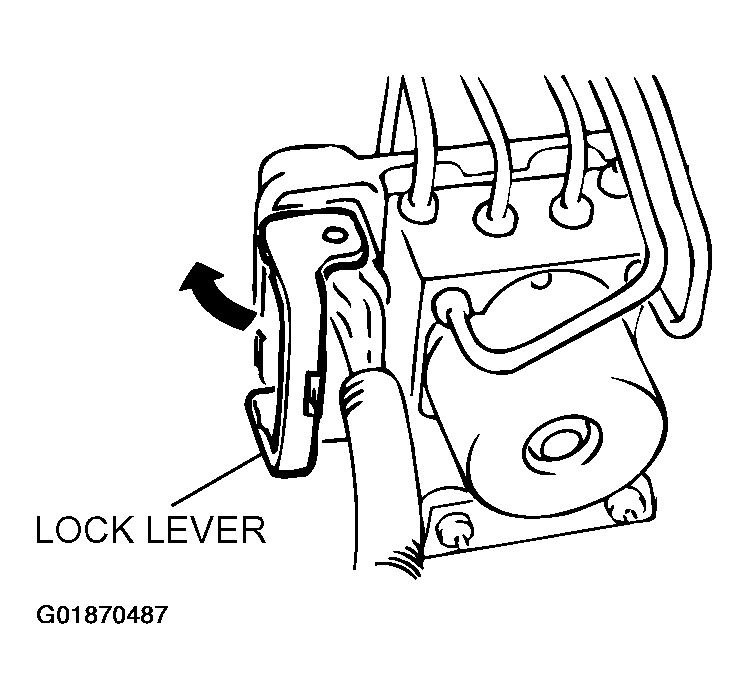

    Fig 1: Moving Lock Lever Of ABS-ECU Connector
    G01870487Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Push up and unlock the hooks of the ABS-ECU connector shown in the illustration, then remove the connector cover.

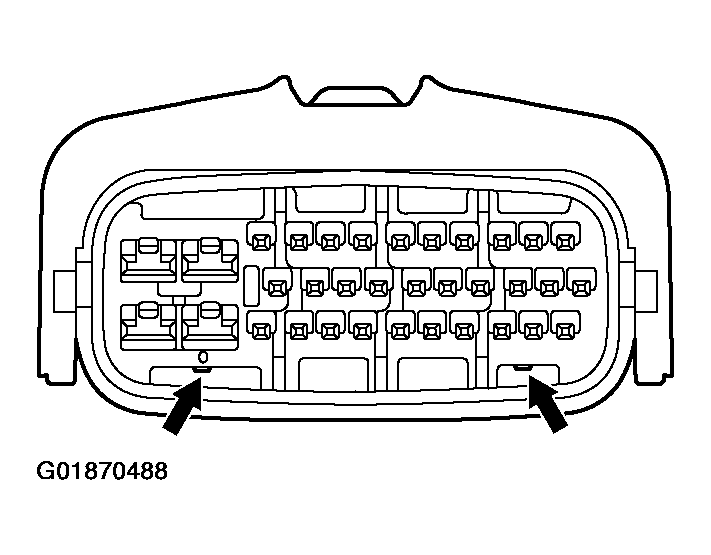

Fig 2: Unlocking Hooks Of ABS-ECU Connector
G01870488Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
