Removal And Installation: Notes

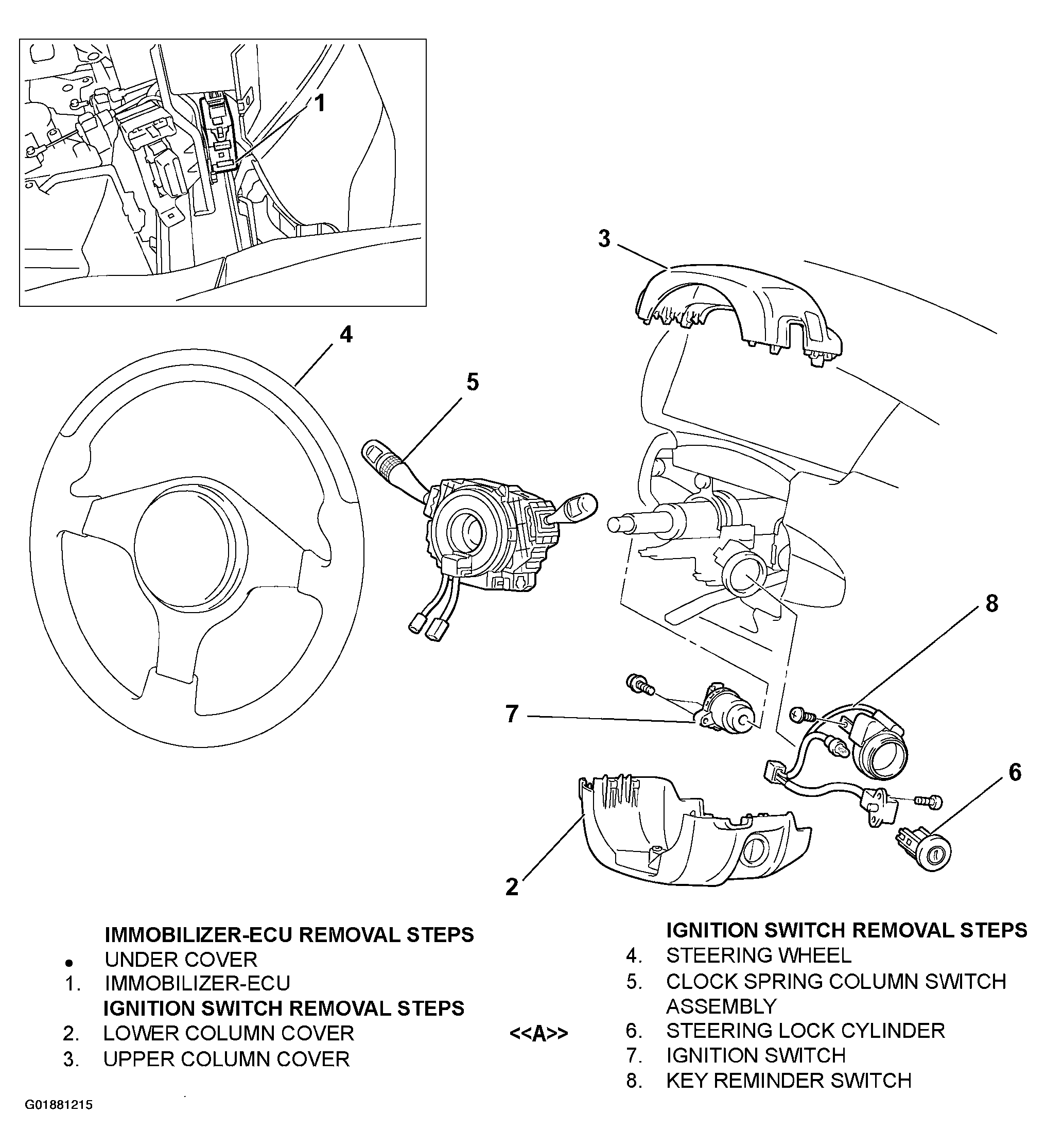

Fig 1: Removing & Installing Ignition Switch
G01881215Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
