Rear Window Defogger - Lancer Evolution
>>
Rear Window Defogger Switch
>>
Inspection
>>
Defogger Relay Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Defogger Relay Check
DEFOGGER RELAY CHECK
BATTERY VOLTAGE
TESTER CONNECTION
SPECIFIED CONDITION
Not applied
5 - 4
Open circuit
Connect terminal 1 to the positive battery terminal
Connect terminal 3 to the negative battery terminal
5 - 4
Less than 2 ohms

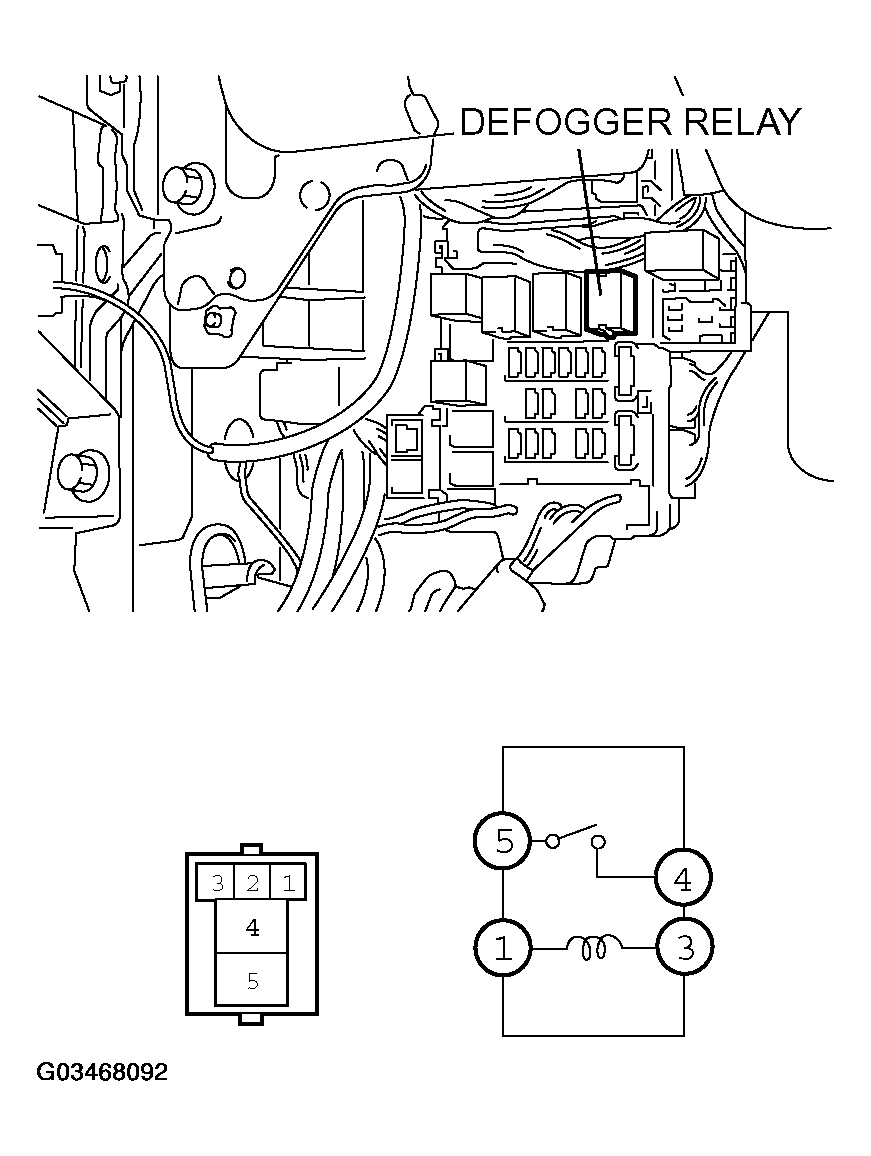

Fig 1: Identifying Defogger Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
